Initial RSS 2000 IP Configuration
The system is shipped with the following default IP addresses:
•
IP Address:192.168.1.254
•
Subnet Mask: 255.255.255.0
• Gateway: 192.168.1.1
There are two ways to change the initial IP address of the system:
•
Via a cross over LAN cable
•
Via a RS232 or Telnet Console.

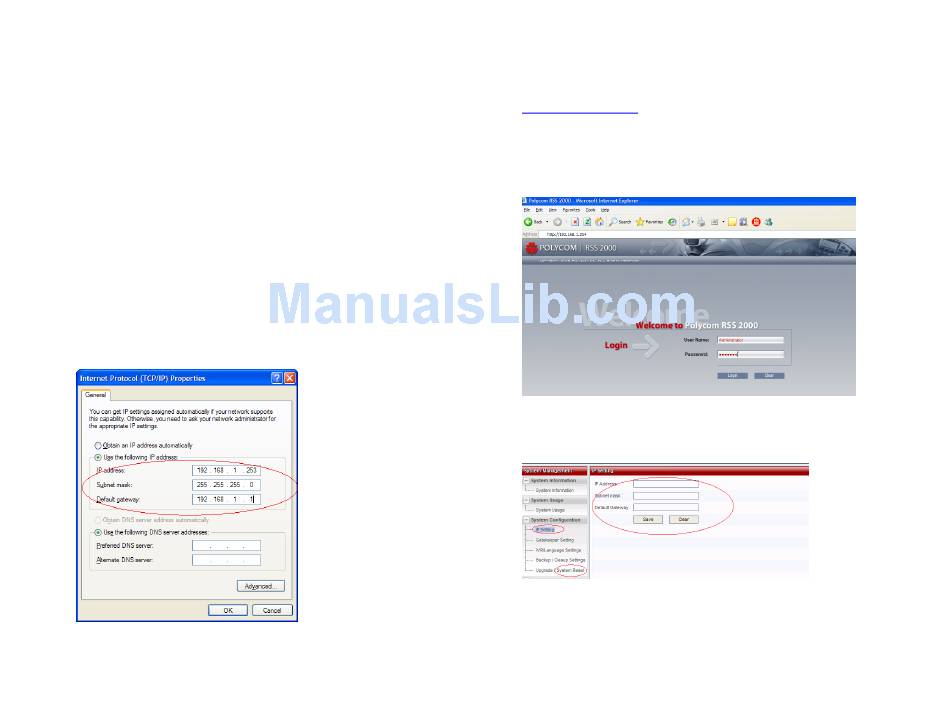

Changing the Initial IP Address via a Cross-over LAN
Cable
1. Connect a cross over LAN cable to LAN1 in the RSS 2000 rear
panel.
2. Set your laptop to the same segment of the RSS, for example (in
your laptop IP config setting):
DOC2153A RSS 2000 Getting Started guide - V1 0.doc
3. Open Internet Explorer and browse to:
http://192.168.1.254
4. Login to the system.
User name: Administrator
Password: polycom
5. Go to System Configuration->IP Setting and modify the IP
address.
6. Click the Save button.
7. Reset the system.
