Related Manuals for GVM GVM-SD300S
Summary of Contents for GVM GVM-SD300S

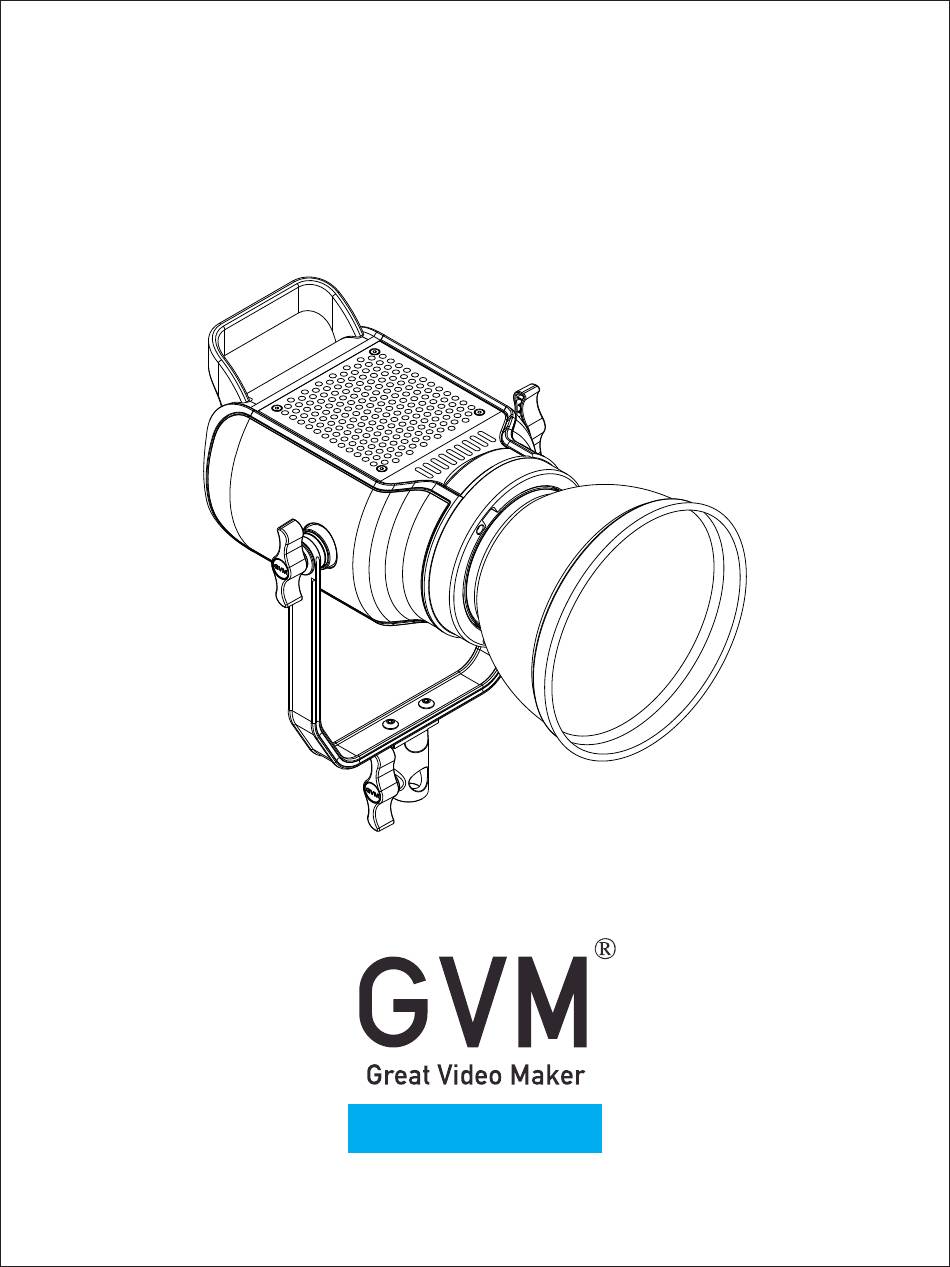

- Page 1 GVM-SD300S...
-
Page 2: Table Of Contents
CONTENTS Important Safety Instructions --------------------------------------------- Page 1~2 Warning ----------------------------------------------------------------------- Page 2 Product Introduction ---------------------------------------------------------- Page 3 Disclaimers -------------------------------------------------------------------- Page 3 Product Parameter ------------------------------------------------------------ Page 4 Precautions -------------------------------------------------------------------- Page 4 Product Structure Analysis ---------------------------------------------------- Page 5 Installation Method -------------------------------------------------------- Page 6~8 Description Of Product Control Keys ----------------------------------------- Page 9 Function Introduction &... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS First and foremost: this product is professional lighting and staging equipment and should be used by a professional lighting technician or under the guidance of a professional. When using this product, you must always follow the cautions below: 1．Read the product manual carefully before use. -
Page 4: Warning
17.For some products with long power cords, please place the power cords properly and avoid contact with overheated surfaces that may damage or trip personnel. Please use the original power cords of our manufactory. The damage caused by using non-original power cords is not covered by our repair service. -
Page 5: Product Introduction
PRODUCT INTRODUCTION Thank you for purchasing our "GVM-SD300S”. This product is specifically designed for photography and videography enthusiasts. This product is suitable for use in live / outdoor / studio productions, and also for YouTube video shooting. The main features of the product are: 1．Stepless adjustment of light's brightness level, dual color temperature output range... -
Page 6: Product Parameter
PRODUCT PARAMETER ◆ Brand: GVM ◆ Product Model: GVM-SD300S ◆ Product Name: LED Video Lights ◆ Product Type: COB Light ◆ Features: Multiple Lighting Modes, High CRI Rating LED Beads ◆ Control Methods: On board Control (Rotate Mode), Bluetooth APP Control, Wireless Master-Slave Mode, DMX Control ◆... -
Page 7: Product Structure Analysis
PRODUCT STRUCTURE ANALYSIS Cooling Vents Bowens Mount Release Slider Diffuser Mount COB Light Chip Rosette angle Fixing Handle U-frame Locking T-handle Junior Pin Receiver Junior Pin Receiver LCD Screen Mode Button DMX Input Compound Knob DC Input ON/OFF Switch... -
Page 8: Installation Method
INSTALLATION METHOD The light can be installed and fixed on the light stand by rotating the locking knob clockwise, and be removed by rotating the locking knob counterclockwise. You can install the Bowens mount reflector by placing it in front of the Bowens mount of the light and then turn it slightly clockwise. - Page 9 Pull back the Bowens mount release slider while rotating the Standard bowens reflector counterclockwise to remove it from the light. Release Slider Loosen the angle fixing handle, adjust the angle of the spotlight that you need, and then turn the angle fixing handle tightly.
-
Page 10: Dmx Input
Connect to the power cord to power the light through the DC input. DC Input Connect to the DMX console through the DMX adapter cable. (DMX adapter cable is not included and needs to be purchased separately) DMX Input... -
Page 11: Description Of Product Control Keys
DESCRIPTION OF PRODUCT CONTROL KEYS Power Input ON/OFF Switch LCD display screen: Display the current mode and parameters settings of the light. Composite knob: Long press for 2 seconds to enter/exit scene mode (SC), short press to enter/exit the current scene adjustment, turn the knob to adjust brightness, channel and select scene. -
Page 12: Function Introduction & Instructions For Use
FUNCTION INTRODUCTION & INSTRUCTIONS FOR USE ① LCD Screen: Display the current brightness, control mode, light effect mode, light parameters, scene number, and channel value of the light. Scene number Channel number (lights up when the light is set to scene mode) Control mode Brightness (Only display the current... - Page 13 In APP mode, connect to the APP and change the channel number through the APP. ⑤ APP Control: Set the mode to APP mode, turn on the GVM LED phone APP. Find the Bluetooth device with the Bluetooth name BT_LED and then connect it. After successfully connection, the video light can be controlled through the APP.
-
Page 14: App Control
2．Turn on the light, switch mode to APP mode, confirm that the phone Bluetooth and APP Bluetooth permission is open (Android needs to open GPS and APP positioning permission).Then open the "GVM LED" application, enter the Bluetooth search interface (Figure 1) , find the Bluetooth named "BT_LED"... -
Page 15: Quick Troubleshooting
QUICK TROUBLESHOOTING Phenomenon Check the product Troubleshooting The switch indicator does Check the matching power adapter Make sure the adapter is well contacted not light up. indicator light up or not. with the power plug. Check if the mode were set as slave Press the “MODE”... -
Page 16: Packing List
PACKING LIST Name Quantity Notes Photography Light Power Cord Adapter Standard Reflector Spotlight Protective Cover Instruction... -
Page 17: Product Warranty
PRODUCT WARRANTY Dear user, this warranty card is important proof for applying for warranty service. Please cooperate with the salesperson to fill it out and keep it properly. Thank you! Model Number Product Barcode Product Information Name Contact Number User Information Mailing Address Name... -
Page 18: How To Obtain Warranty Service
8．Other malfunctions or damages not caused by quality issues of the product itself. In such cases, you should seek solutions from the relevant responsible parties, and GVM will not be held liable. Malfunctions or damages caused by components, accessories, or software not covered by the warranty or beyond the warranty scope that renders the product unable to function properly are not covered by the warranty. - Page 19 Download APP GVM Official website Facebook Huizhou Latu Film Equipment Co., Ltd. Web: www.gvmled.com B&H Email: bh@gvmled.com GVM Email: support@gvmled.com Amazon Email: amazonsupport@gvmled.com Warehouse Address: 12285 MCNULTY RD, STE 105 PHILADELPHIA, Pennsylvania 19154，USA...
