ATEX H1 Bent Axis Variable Displacement Motors
Installation, operation and maintenance

Operation

© Danfoss | August 2021

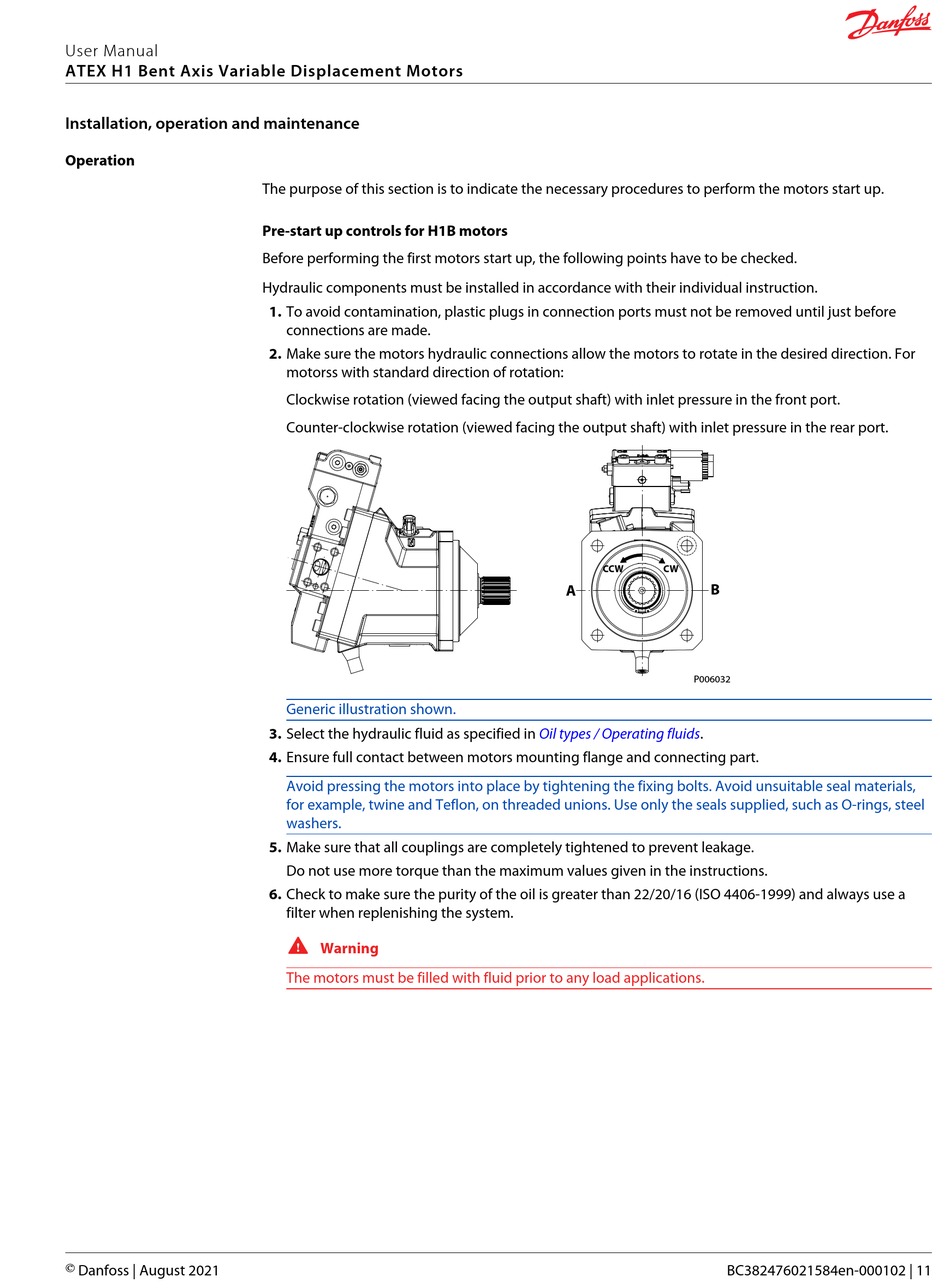

The purpose of this section is to indicate the necessary procedures to perform the motors start up.

Pre-start up controls for H1B motors

Before performing the first motors start up, the following points have to be checked.
Hydraulic components must be installed in accordance with their individual instruction.
1. To avoid contamination, plastic plugs in connection ports must not be removed until just before
connections are made.
2. Make sure the motors hydraulic connections allow the motors to rotate in the desired direction. For
motorss with standard direction of rotation:
Clockwise rotation (viewed facing the output shaft) with inlet pressure in the front port.
Counter-clockwise rotation (viewed facing the output shaft) with inlet pressure in the rear port.
Generic illustration shown.
3. Select the hydraulic fluid as specified in
4. Ensure full contact between motors mounting flange and connecting part.
Avoid pressing the motors into place by tightening the fixing bolts. Avoid unsuitable seal materials,
for example, twine and Teflon, on threaded unions. Use only the seals supplied, such as O-rings, steel
washers.
5. Make sure that all couplings are completely tightened to prevent leakage.
Do not use more torque than the maximum values given in the instructions.
6. Check to make sure the purity of the oil is greater than 22/20/16 (ISO 4406-1999) and always use a
filter when replenishing the system.
W
Warning
The motors must be filled with fluid prior to any load applications.
CCW CW
B
A
P006032
Oil types / Operating fluids.
BC382476021584en-000102 | 11
