4. Pole Mount
4.1 Pole Direct Mounting
Follow the steps below to mount the Speed Dome Camera with the Pole Direct
Mount and Standard/Mini Pendent Mount.
1. Fasten the Pole Direct Mounting onto a pole using the stainless straps.
2. Run the cable(s) through the hole on the Pole Direct Mount with the I/O
Cable's connector coming out.
3. Fasten the Standard/Mini Pendent Mount onto the Pole Direct Mounting
with the supplied screws and washers. Then thread the cable(s) through
the Standard/Mini Pendent Mount with the cable(s) coming out of the
Pendent Mount's outlet.
NOTE: Please block the cable entry hole with the supplied sponge to avoid
insects entering the Pendent Mount. See the illustrations in section 2.1
Mini Pendent Mount > Step 4.
4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent
Mount.
5. Thread the cable(s) through the top holder and join the top holder to the
Standard/Mini Pendent Mount with the supplied screws and washers.
Then adjust the Waterproof Rubber over the joint.
6. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
7. Join the Speed Dome Camera to the top holder with the supplied M5
screw and washers.

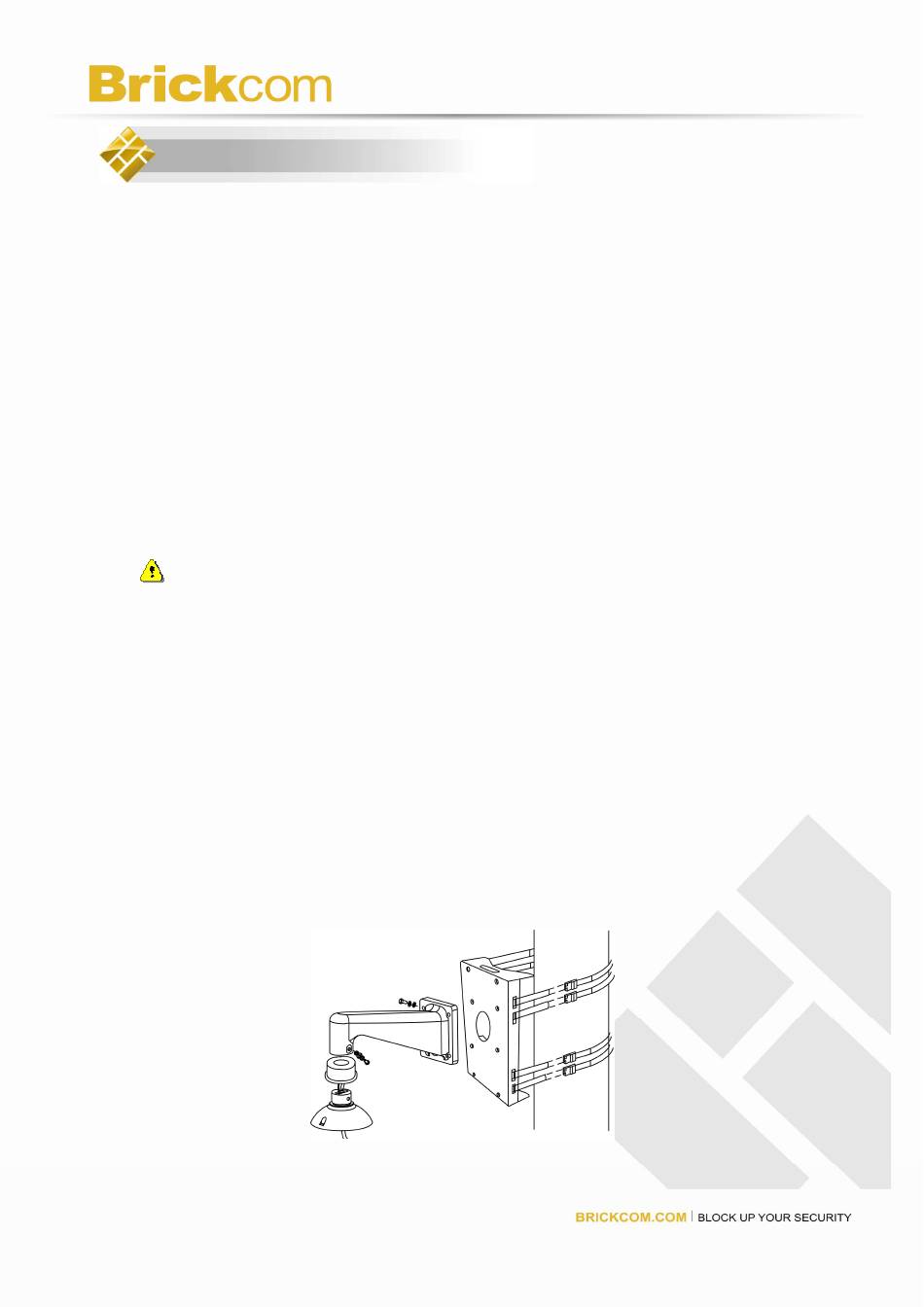

Pole Direct Mounting: Pole Direct Mounting + Standard/Mini Pendent Mount
