2.
Wall Mounting
2.1 Mini/Standard Pendent Moun
Follow the steps below to mount the Speed Dome Camera with the
Mini/Standard Pendent Mount.
1. Make a cable entry hole on the wall to insert the cables through the
bracket or push up the Cable Entry Board on the Mini/Standard Pendent
Mount's Mounting Plate to place the cables.
2. Attach the Mini/Standard Pendent Mount to the wall with proper screws
and screw anchors.
3. Attach the supplied Waterproof Rubber to the Mini Pendent Mount.
4. Run the cable(s) through the Mini/Standard Pendent Mount with the I/O
Data Cable's connector coming out of the outlet.

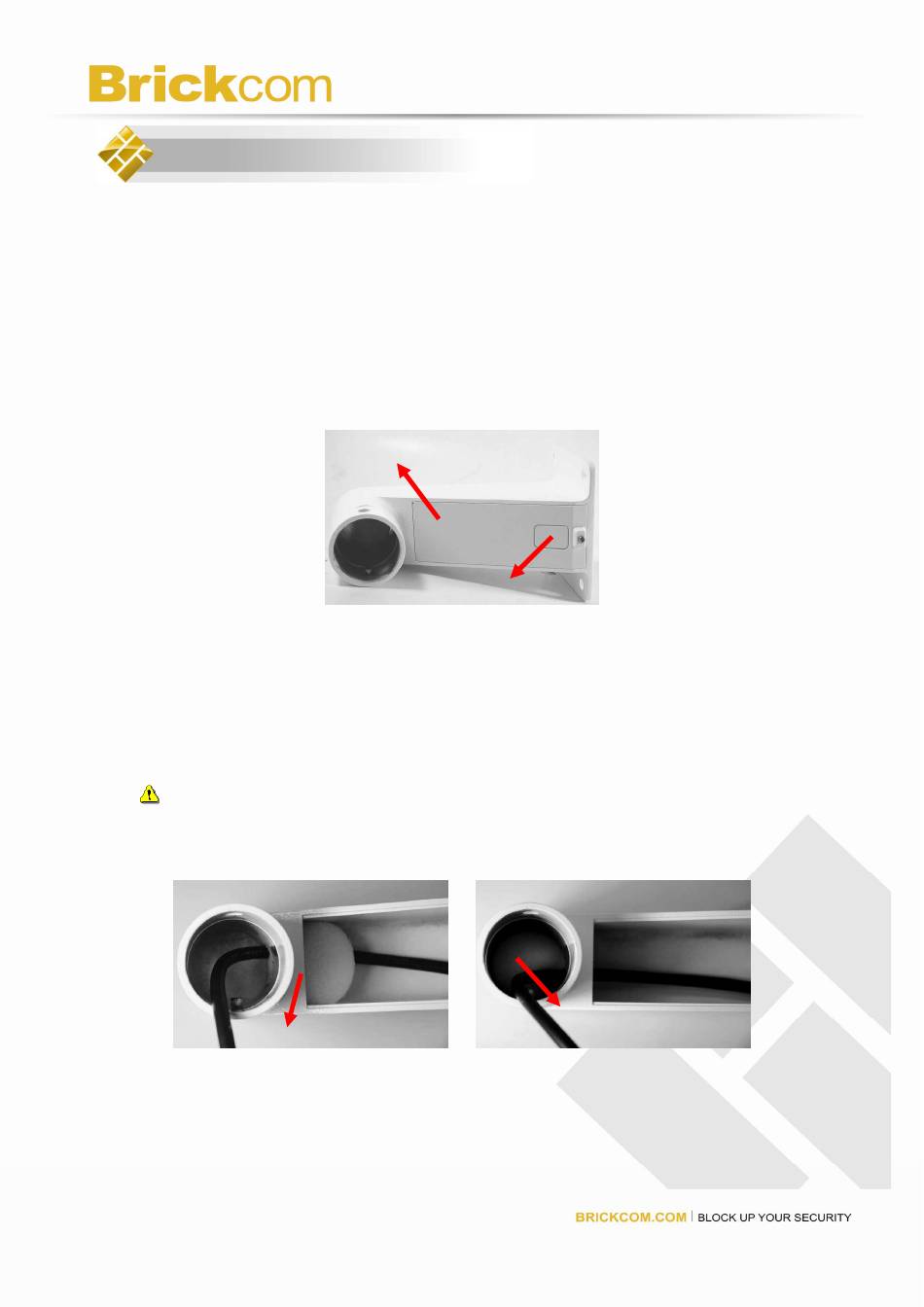

NOTE: Please block the cable entry hole with the supplied sponge to avoid
insects entering the Pendent Mount. The sponge can be placed in two
ways as shown in the illustrations below.
Sponge
t
Mounting Plate
Cable Entry Board
Sponge
