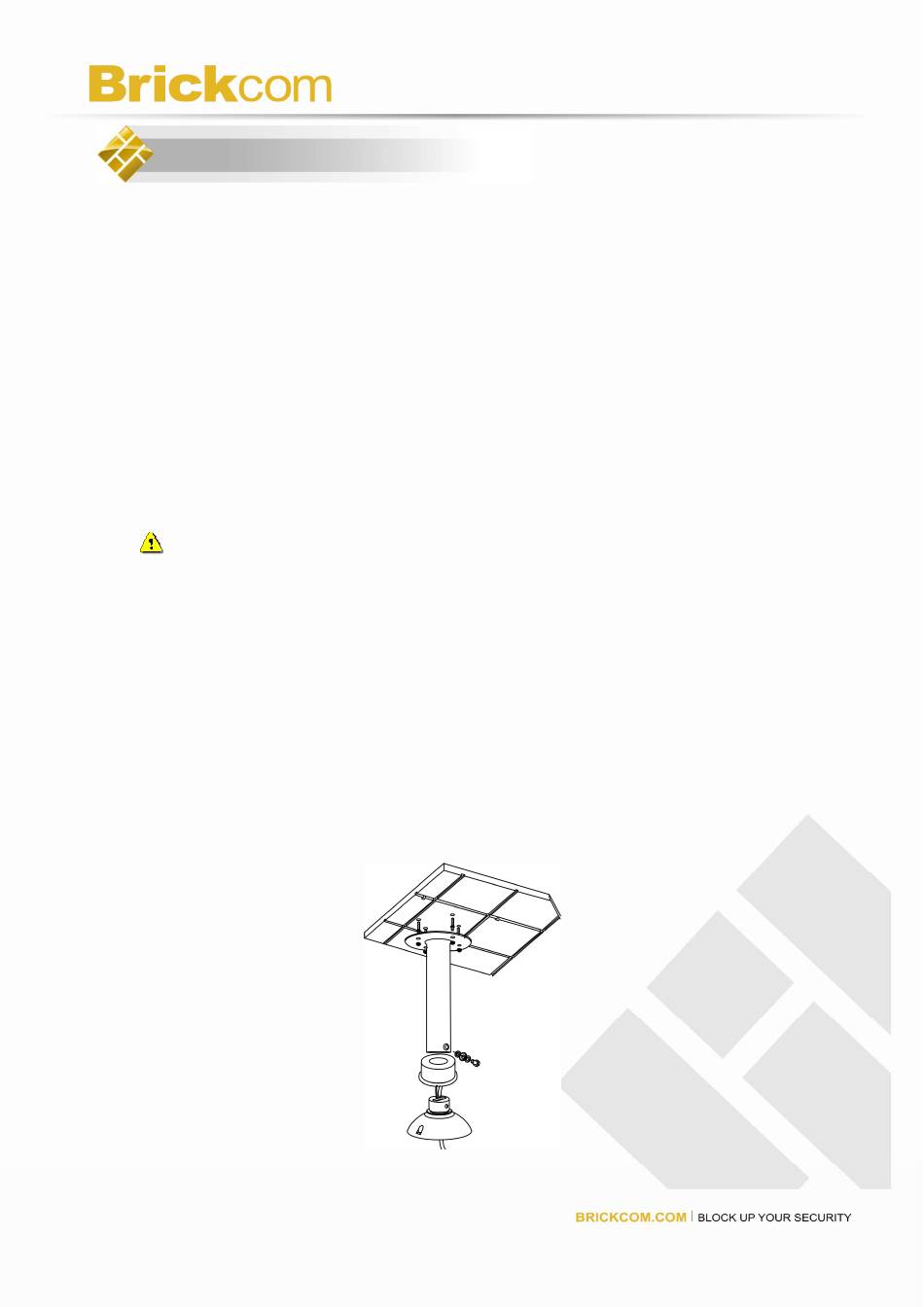

1. Ceiling Mounting with Straight Tube
The Straight Tube is available in different length: 25 cm and 30 cm.
Follow the steps to mount the Speed Dome Camera with the Straight Tube.
1. Ensure that the ceiling can support the weight of the Speed Dome Camera
and Straight Tube.
2. Make a cable entry hole on the ceiling.
3. Attach the Straight Tube to the ceiling with proper screws and screw
anchors.
4. Connect the supplied Waterproof Rubber to the Straight Tube.
5. Run the cable(s) through the Straight Tube with the supplied I/O Cable's
connector coming out of the outlet.
NOTE: After running the cable(s) through the Straight Tube, please block
the Tube's outlet with the supplied sponge to avoid insects entering the
tube.
6. Thread the cable(s) through the supplied camera top holder and join the
holder to the Straight Tube with the supplied screws and washers. Then
adjust the Waterproof Rubber over the joint.
7. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
8. Attach the Speed Dome Camera to the top holder with the supplied M5
screw and washers.
Ceiling Mounting
