Brickcom OSD-040 36x Series Installation Manual page 5

36x outdoor speed dome network camera

Hide thumbs Also See for OSD-040 36x Series:

Thread the cable(s) through the supplied camera top holder and join the

holder to the Mini/Standard Pendent Mount with the supplied screws and

washers. Then adjust the Waterproof Rubber over the joint.

Connect the Ethernet and I/O cables and hook the safety wired to the

camera.

Attach the Speed Dome Camera to the top holder with the supplied M5

screw and washers.

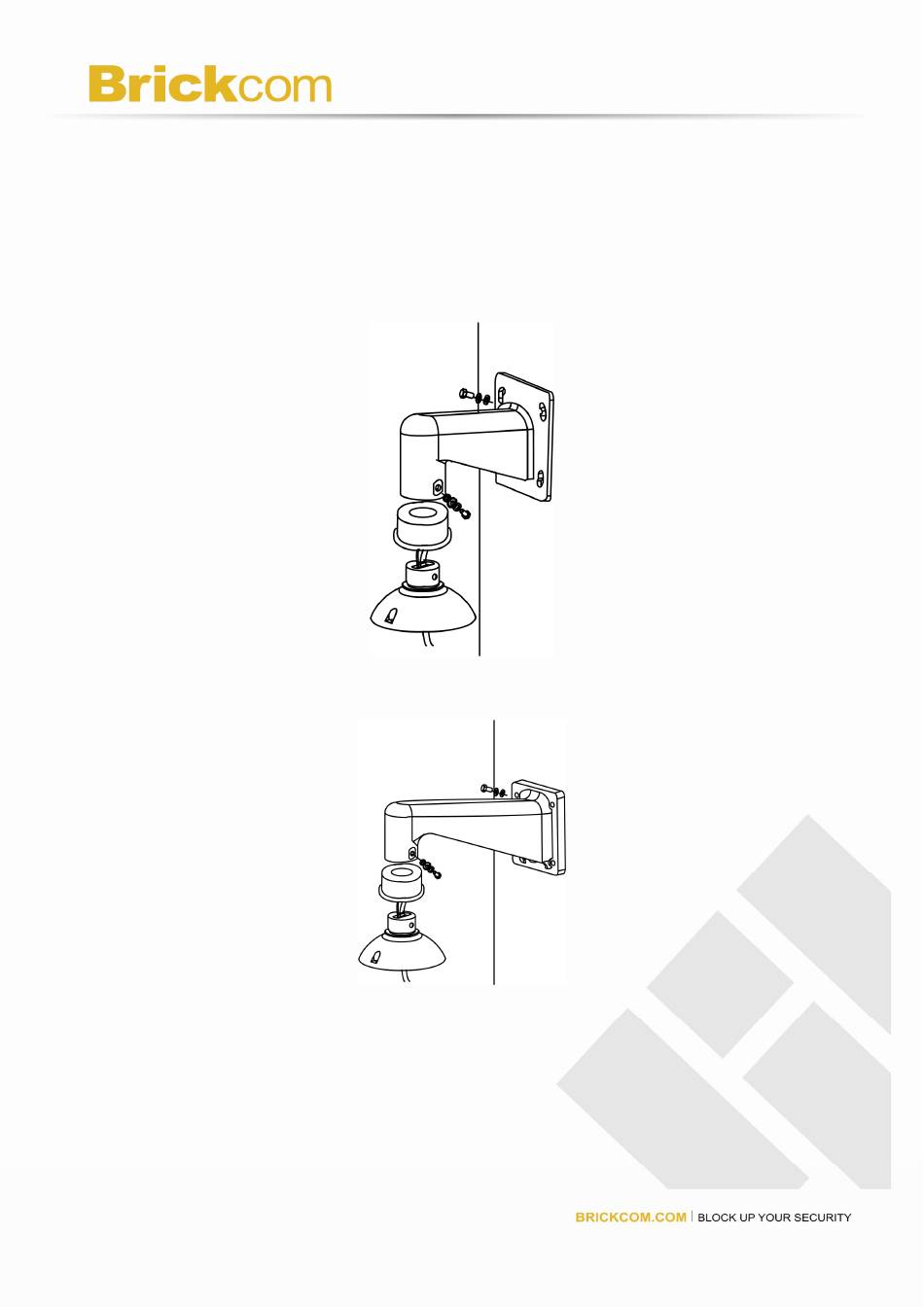

Wall Mounting: Standard Pendent Mount

Wall Mounting: Mini Pendent Mount
