3.2 Corner Box Mounting
Follow the steps below to mount the Speed Dome Camera with the Corner Box
and Standard/Mini Pendent Mount.
1. Make a cable entry hole on the wall to insert the cable(s).
2. Attach the Corner Box to the corner of the wall with proper screws and
screw anchors. Then run the cable(s) through the hole on the Corner Box
with the I/O Cable's connector coming out.
3. Fasten the Standard/Mini Pendent Mount onto the Corner Box with the
supplied screws and washers. Then thread the cable(s) through the
Standard/Mini Pendent Mount with the cable(s) coming out of the Pendent
Mount's outlet.
NOTE: Please block the cable entry hole with the supplied sponge to avoid
insects entering the Pendent Mount. See the illustrations in section 2.1
Mini Pendent Mount > Step 4.
4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent
Mount.
5. Thread the cable(s) through the top holder and join the top holder to the
Standard/Mini Pendent Mount with the supplied screws and washers.
Then adjust the Waterproof Rubber over the joint.
6. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
7. Attach the Dome Camera to the top holder with the supplied M5 screw
and washers.

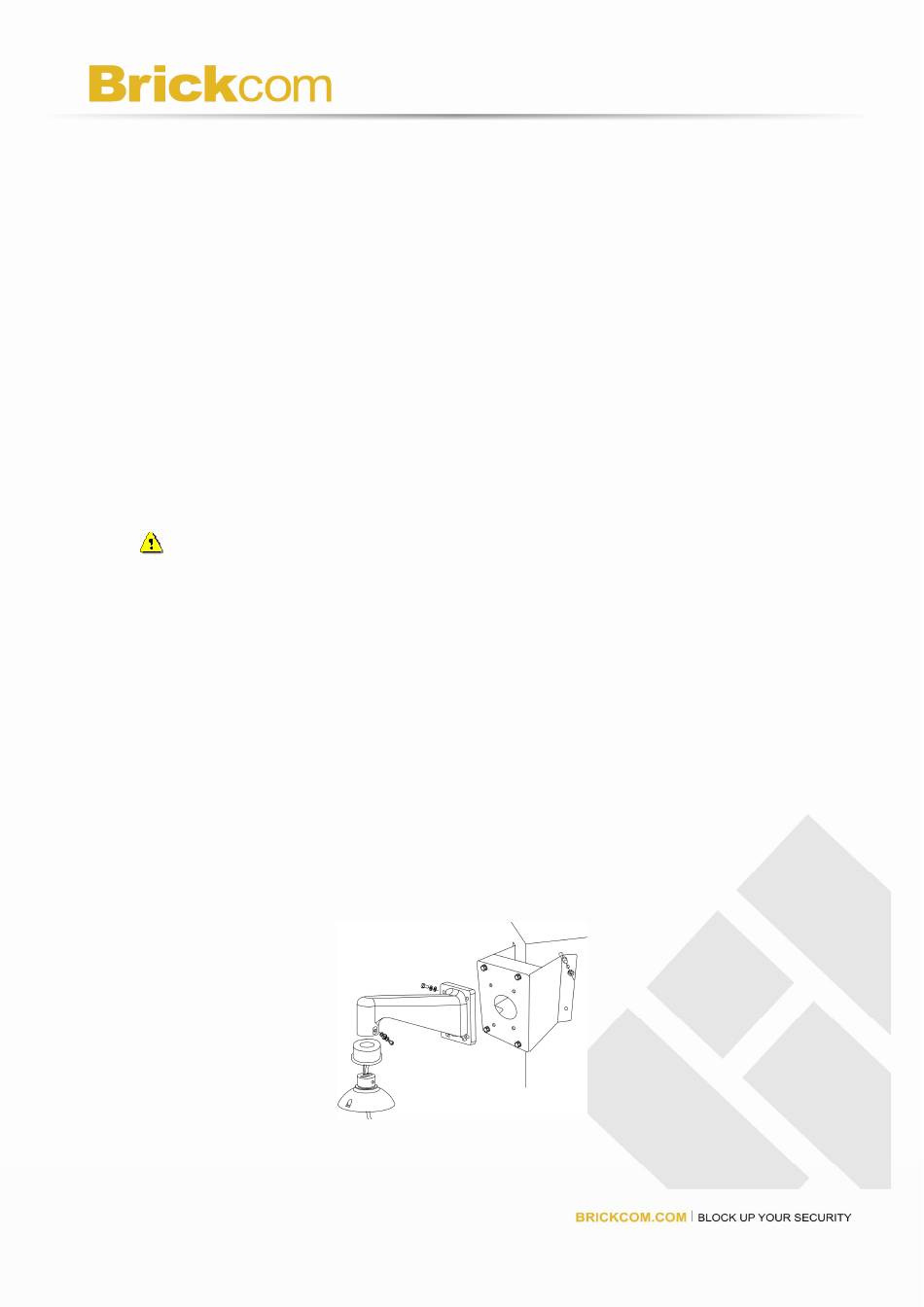

Corner Box Mounting: Corner Box + Standard/Mini Pendent Mount
