3. Corner Mount
3.1 Corner Mounting Plate
Follow the steps below to mount the Speed Dome Camera with the Corner
mounting Plate and Standard/Mini Pendent Mount.
1. Make a cable entry hole on the wall to insert the cable(s).
2. Attach the Corner Mounting Plate to the corner of the wall with the proper
screws and screw anchors. Then run the cable(s) through the hole on the
Corner Mounting Plate with the I/O Cable's connector coming out.
3. Fasten the Standard/Mini Pendent Mount onto the Corner Mounting Plate
with the supplied screws and washers. Then thread the cable(s) through
the Standard/Mini Pendent Mount with the cable(s) coming out of the
Pendent Mount's outlet.
NOTE: Please block the cable entry hole with the supplied sponge to avoid
insects entering the Pendent Mount. See the illustrations in section 2.1
Mini Pendent Mount > Step 4.
4. Attach the supplied Waterproof Rubber to the Standard/Mini Pendent
Mount.
5. Thread the cable(s) through the top holder and connect the top holder to
the Standard/Mini Pendent Mount with the supplied screws and washers.
Then adjust the Waterproof Rubber over the joint.
6. Connect the Ethernet and I/O cables and hook the safety wired to the
camera.
7. Join the Dome Camera to the top holder with the supplied M5 screw and
washers.

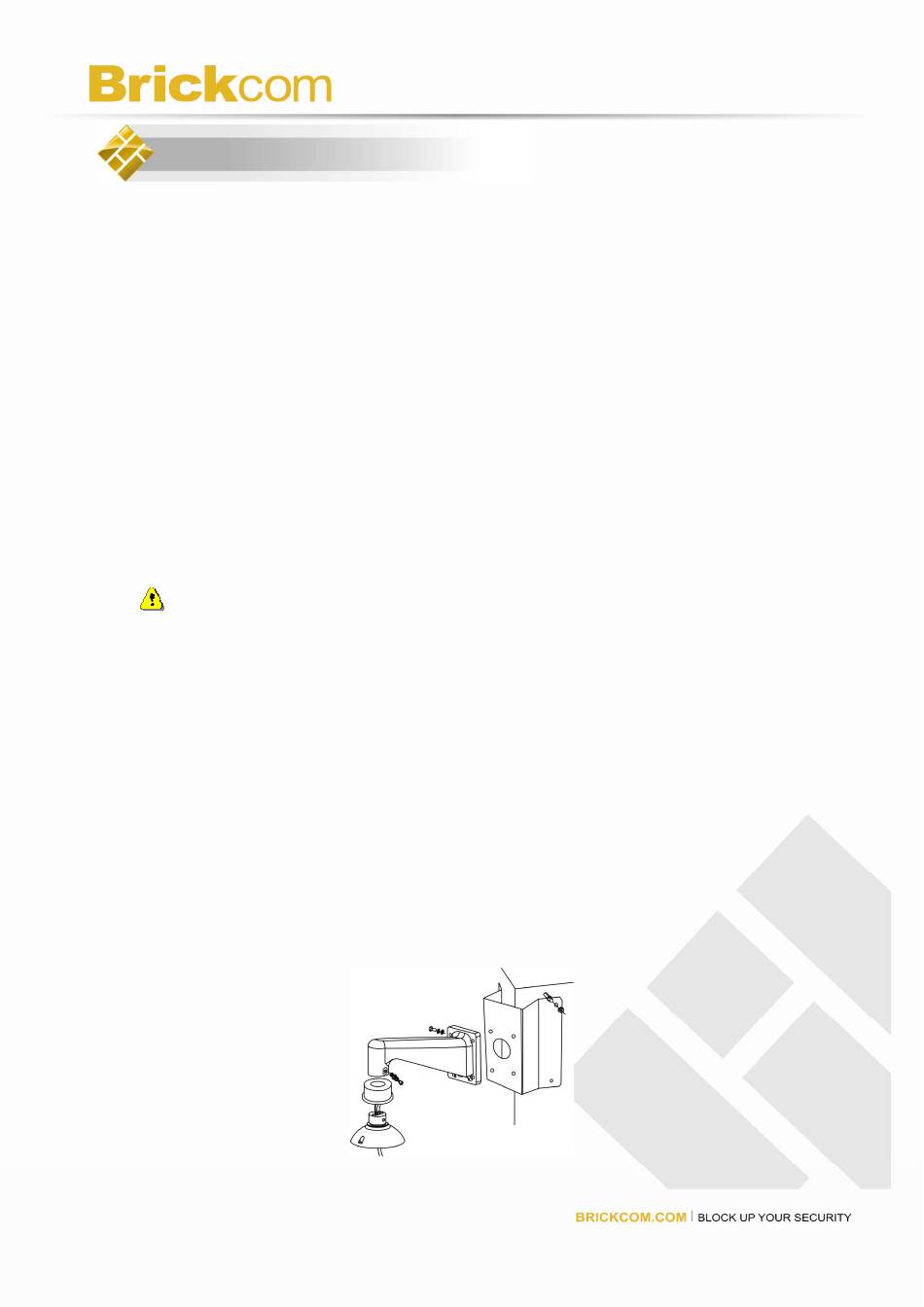

Corner Wall Mounting: Corner Mounting Plate + Standard/Mini Pendent Mount
