Wiring Diagram With T-Harness (Thton7) - Directed DIRECTWIRE DIRECTECHS 933.TL14 Installation Manual

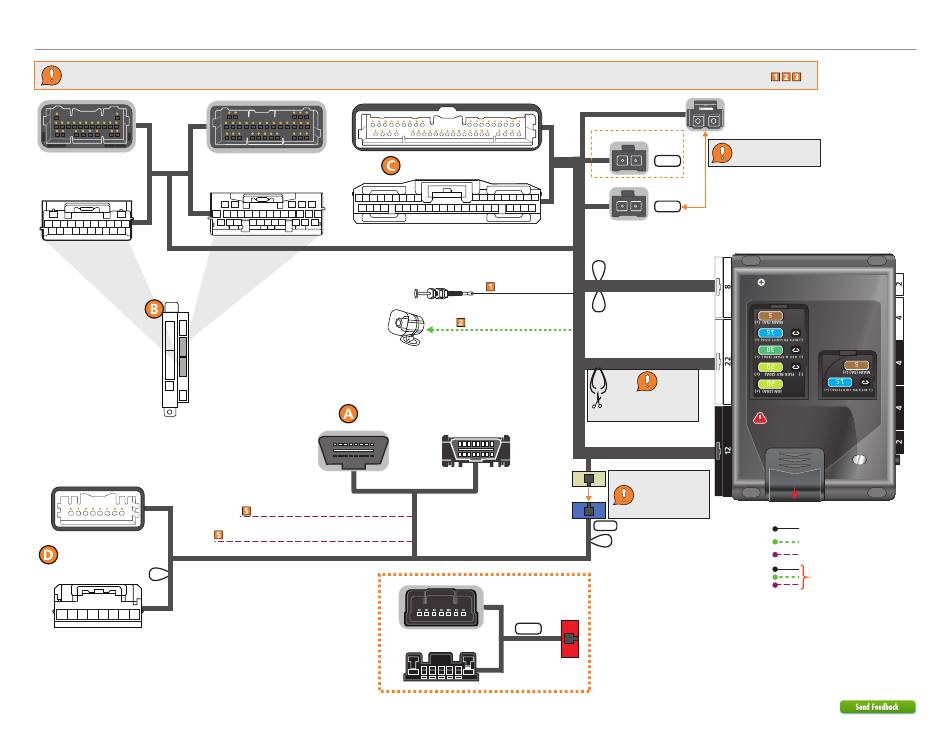

Wiring diagram with T-Harness (THTON7)
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Body ECU Connector
(lower conn. left side
left side of steering column)
of steering column)
2
Body ECU
Connector
1
2
Ignition Connector
6 933.TL14 1.02.198.9 2023 Toyota Camry
©2023 VOXX•DEI LLC. All rights reserved.
Body ECU
(middle conn.
1
Siren
Diagnostic Connector OBDII
TPMS Ignition Interrupt (veh. side): Lt. Green
TPMS Ignition Interrupt (conn. side): Lt. Green/White
Headlight Switch
Hood Pin
(-) Hood Input: Gray
(+) Siren Output: Brown/Red
NOT USED
C
NOT USED
Connect the connector
labeled Type A.
B
A
A module can also be used for
8-pin White Connector
this installation.
THTON7
(optional T-Harness)
22-pin White Connector
Cut the Dk.Green/Black
and Dk. Blue/Black loop
labeled Lock/Unlock.
12-pin Black Connector
Connect the Tan
12-pin connector to
the 12-pin Blue
connector labeled B.
B
).
IMPORTANT:
Position the
fuses correctly!
Slide to open
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
