3 System design

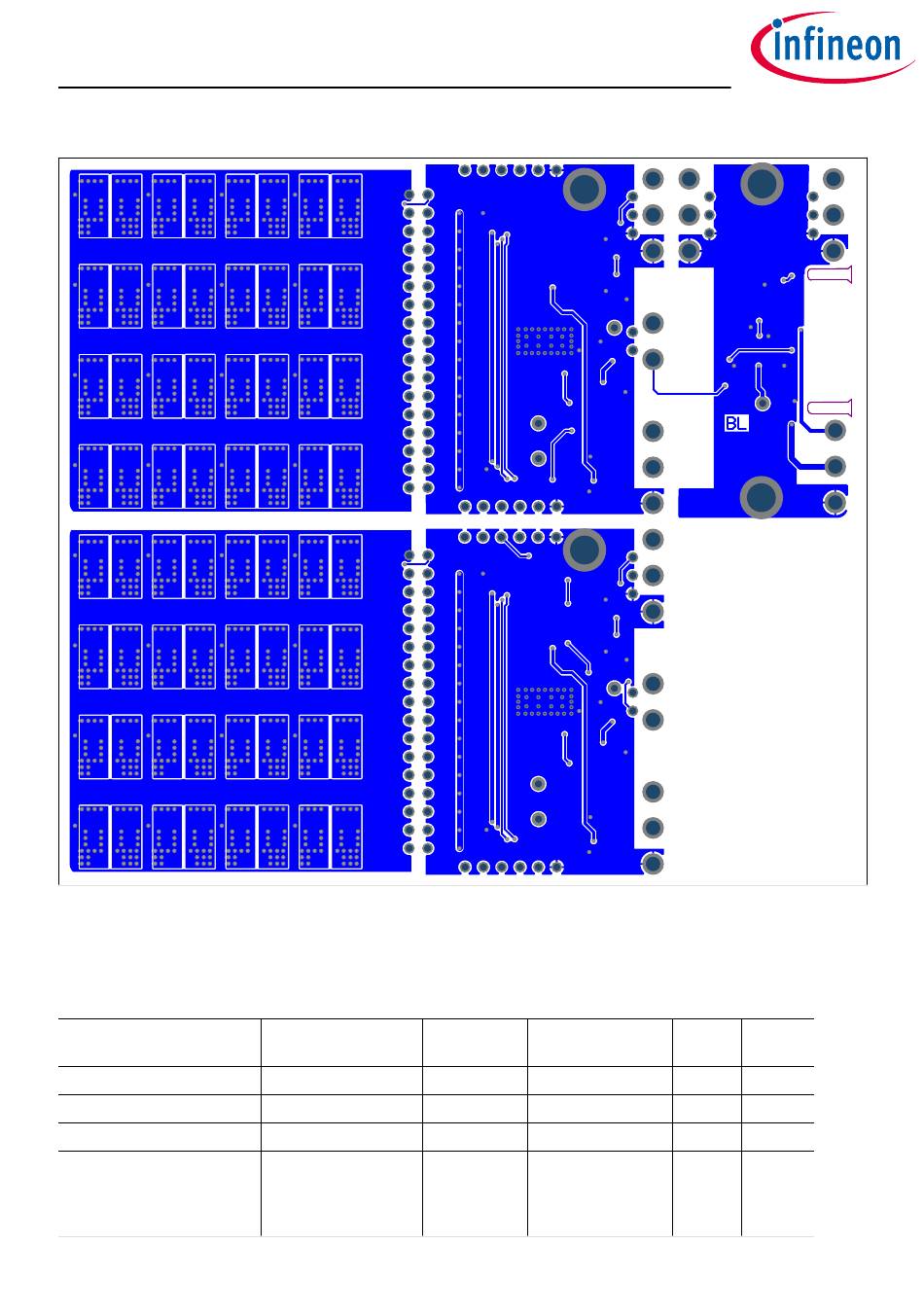

Figure 10 Bottom layer
3.3

Bill of material

Table 3 Bill of material
Designator
C1, C10
C12, C13
C2, C11
CNTC, CO0, CO1, CO2, CO3,
CO4, CO5, CO6, CO7, CO8,
CO9, CO10, CO11, CO12,
CO13, CO14, CO15
(table continues...)
User guide
Value Quantity
470nF 2
47pF 4
4.7nF 3
10nF 34
Footprint
C0603
C0603
C0603
C0603
14
Voltage Note
[V]
25 X7R 5%
50 X7R 5%
50 X7R 5%
25 X7R 5%
Revision 1.00
2023-05-29
