TLD7002-16SYS_EVAL board
User guide
2 Quick start
2.4

HSLI bus control

The TLD 7002-16ES can be connected to an external microcontroller UART. The TLD7002-16ES device drivers are
available on the TLD7002-16ES webpage [2].
1. Close JVS_VL to use a single power supply
2. Connect the GND at the - terminal of a 6 V to 20 V 1 A power supply
3. Connect VS_REV to the + terminal of the power supply
4. Connect GND, RX, TX COMMANDER test points to a commander µC GND, RX(UART), TX(UART)
5. Write and Execute on the µC a software which controls two TLD7002-16 at addresses 2 and 3
6. If the sequence of commands is correct, the TLD7002-16SYS_EVAL will exit the fail safe and follow
commands received from the HSLI bus

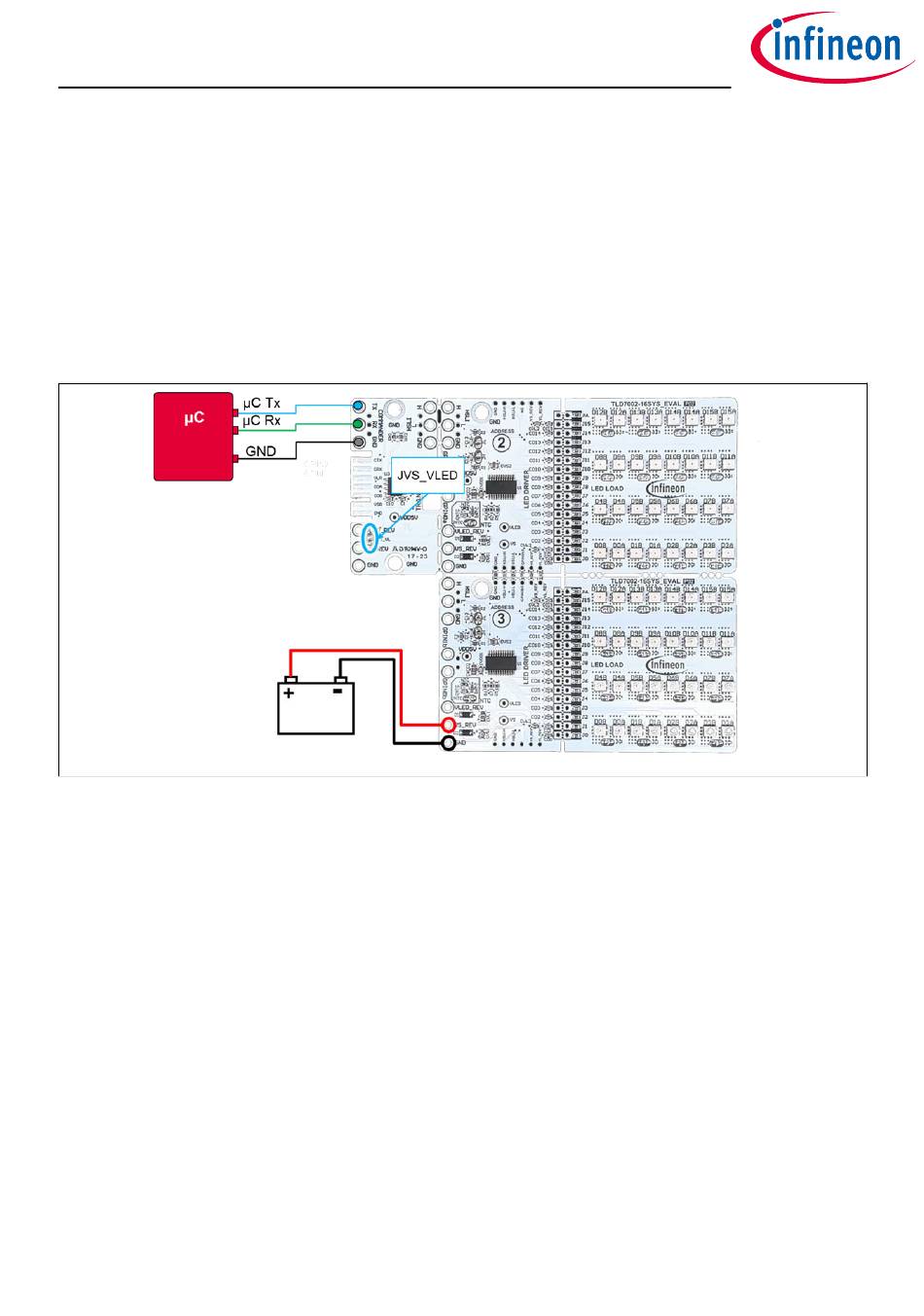

Figure 5 TLD7002-16SYS_EVAL µC control
User guide 9 Revision 1.00
2023-05-29
