DEMO MANUAL DC2515B

SOFTWARE SETUP

The DC2515B can be controlled with the DC2026 Linduino One board together with DC2792B dual isoSPI Master or
equivalent isoSPI transceiver. The DC2026 is part of the Arduino compatible Linduino platform that provides example
code that will demonstrate how to control the multicell battery-stack monitor ICs. Compared to most Arduino compat-
ible microcontroller boards, the DC2026 offers conveniences such as an isolated USB connection to the PC, built-in
SPI MISO line pull-up to properly interface with the battery stack monitor IC open drain SDO, and an easy ribbon cable
connection for SPI communication through the DC2792B 14-pin QuikEval™ J1 connector.
Arduino IDE Setup
1. Download then install the
2. Set the Arduino IDE to open BMS Sketchbooks. From within the Arduino IDE, click on File menu select Preferences.
Then under Sketchbook location: select Browse and locate the path to the extracted LTSketchbook.zip file that was
downloaded (see Figure 5).
6
Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from
Arduino IDE onto the PC. Detailed instructions can be found under the quick start tab.

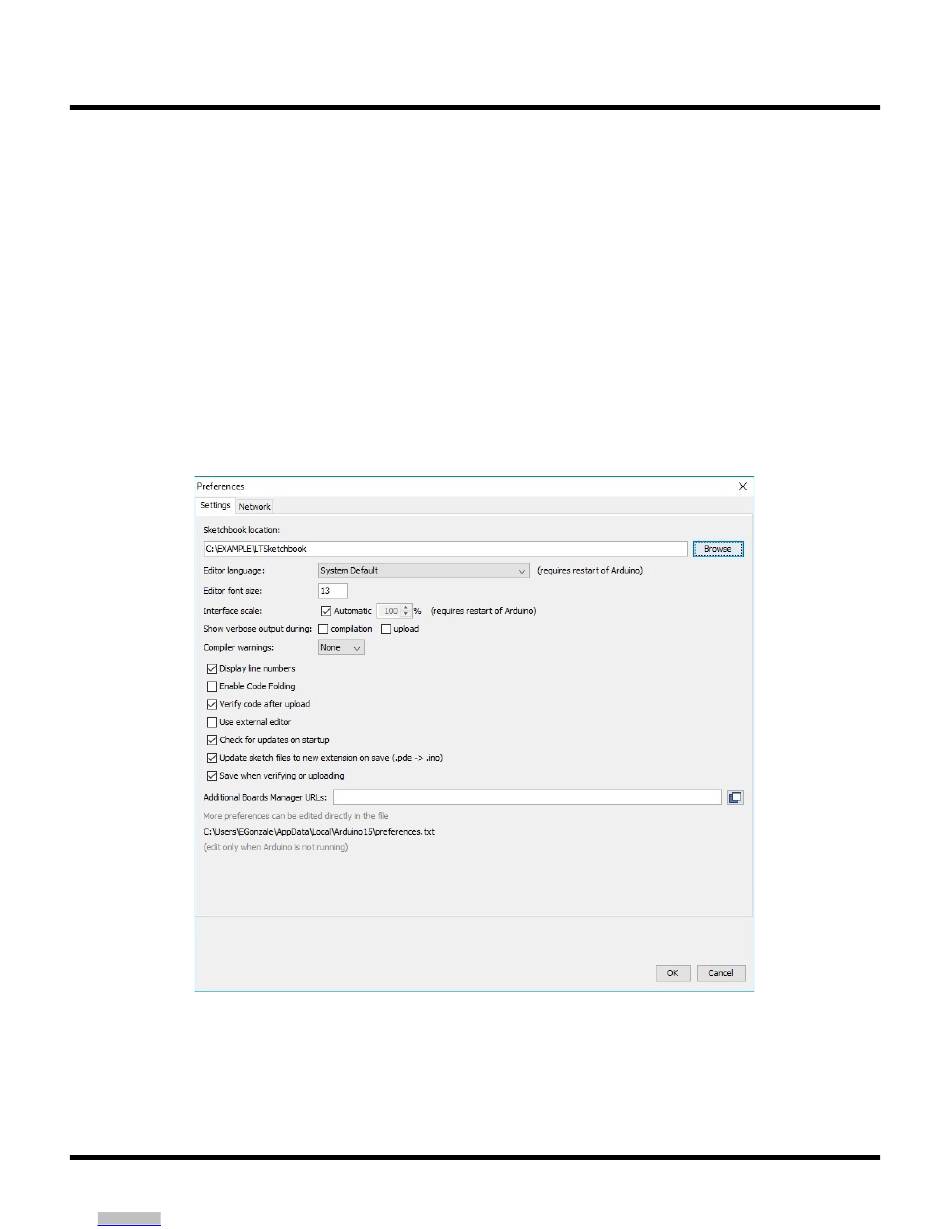

Figure 5. Sketchbook Location Path
