If the value entered is lower than the minimum value or higher than the maximum value, the backlight
of the display flashes and the value entered is replaced with the minimum or maximum value, or with
the last value validated.
Press the key to access the next programming step.
If no keys are pressed for 5 minutes, the device switches to the simulation screen,
SCREEN" .
5�24�- VOLTAGE THD ALARM
In this point the thresholds above which the Voltage THD alarm (
The programmed values are useful for the 3 phases which the unit measures.
Note: The alarm must be enabled (

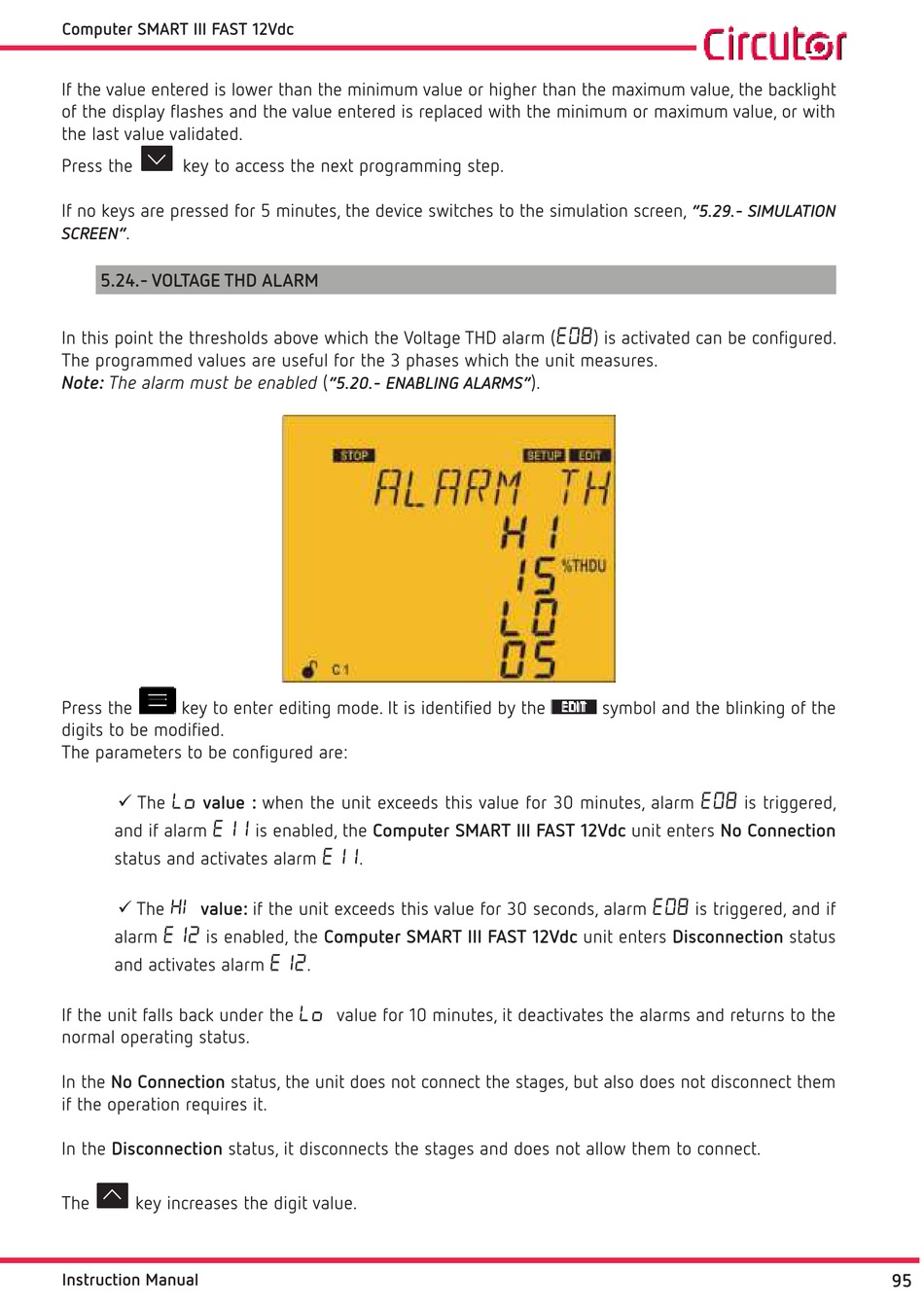

Press the key to enter editing mode. It is identified by the
digits to be modified.
The parameters to be configured are:
 The Lo
value : when the unit exceeds this value for 30 minutes, alarm
E11
and if alarm
status and activates alarm
 The HI
value: if the unit exceeds this value for 30 seconds, alarm
E12
is enabled, the Computer SMART III FAST 12Vdc unit enters Disconnection status
alarm
and activates alarm
If the unit falls back under the
normal operating status.
In the No Connection status, the unit does not connect the stages, but also does not disconnect them
if the operation requires it.
In the Disconnection status, it disconnects the stages and does not allow them to connect.
The key increases the digit value.
Instruction Manual
"5.20.- ENABLING ALARMS"
is enabled, the Computer SMART III FAST 12Vdc unit enters No Connection
E11
.
E12
.
Lo
value for 10 minutes, it deactivates the alarms and returns to the
"5.29.- SIMULATION
E08
) is activated can be configured.
).
symbol and the blinking of the
E08
E08
is triggered, and if
is triggered,
