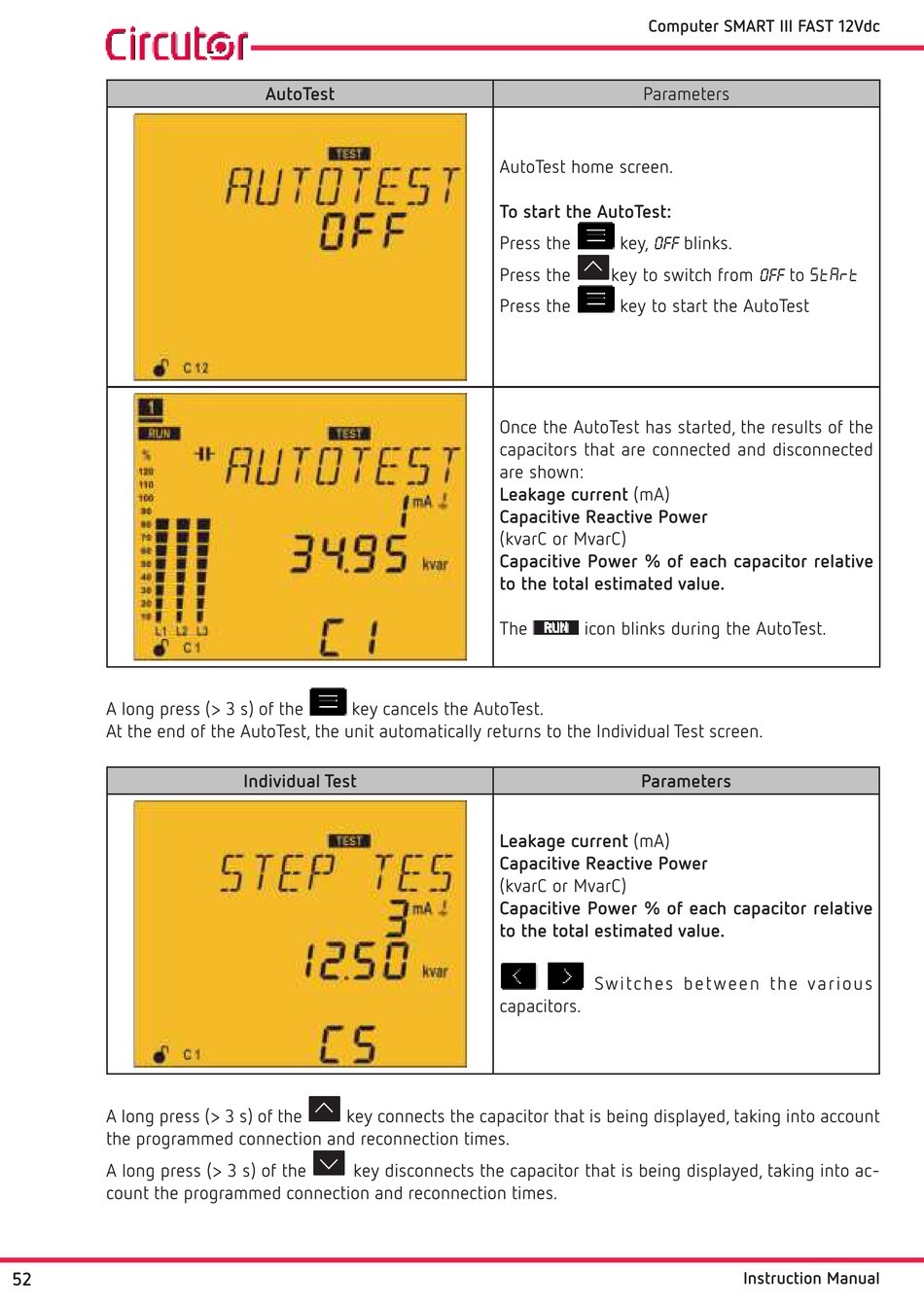

Circutor Computer SMART III FAST 12Vdc Instruction Manual page 52

A long press (> 3 s) of the
At the end of the AutoTest, the unit automatically returns to the Individual Test screen.
A long press (> 3 s) of the
the programmed connection and reconnection times.
A long press (> 3 s) of the
count the programmed connection and reconnection times.
52
AutoTest
key cancels the AutoTest.
Individual Test
key connects the capacitor that is being displayed, taking into account
key disconnects the capacitor that is being displayed, taking into ac-
Computer SMART III FAST 12Vdc
Parameters
AutoTest home screen.
To start the AutoTest:
Press the key, OFF blinks.
Press the key to switch from OFF to START
Press the key to start the AutoTest
Once the AutoTest has started, the results of the
capacitors that are connected and disconnected
are shown:
Leakage current (mA)
Capacitive Reactive Power
(kvarC or MvarC)
Capacitive Power % of each capacitor relative
to the total estimated value�
The icon blinks during the AutoTest.
Parameters
Leakage current (mA)
Capacitive Reactive Power
(kvarC or MvarC)
Capacitive Power % of each capacitor relative
to the total estimated value�
Switches between the various
capacitors.
