Computer SMART III FAST 12Vdc

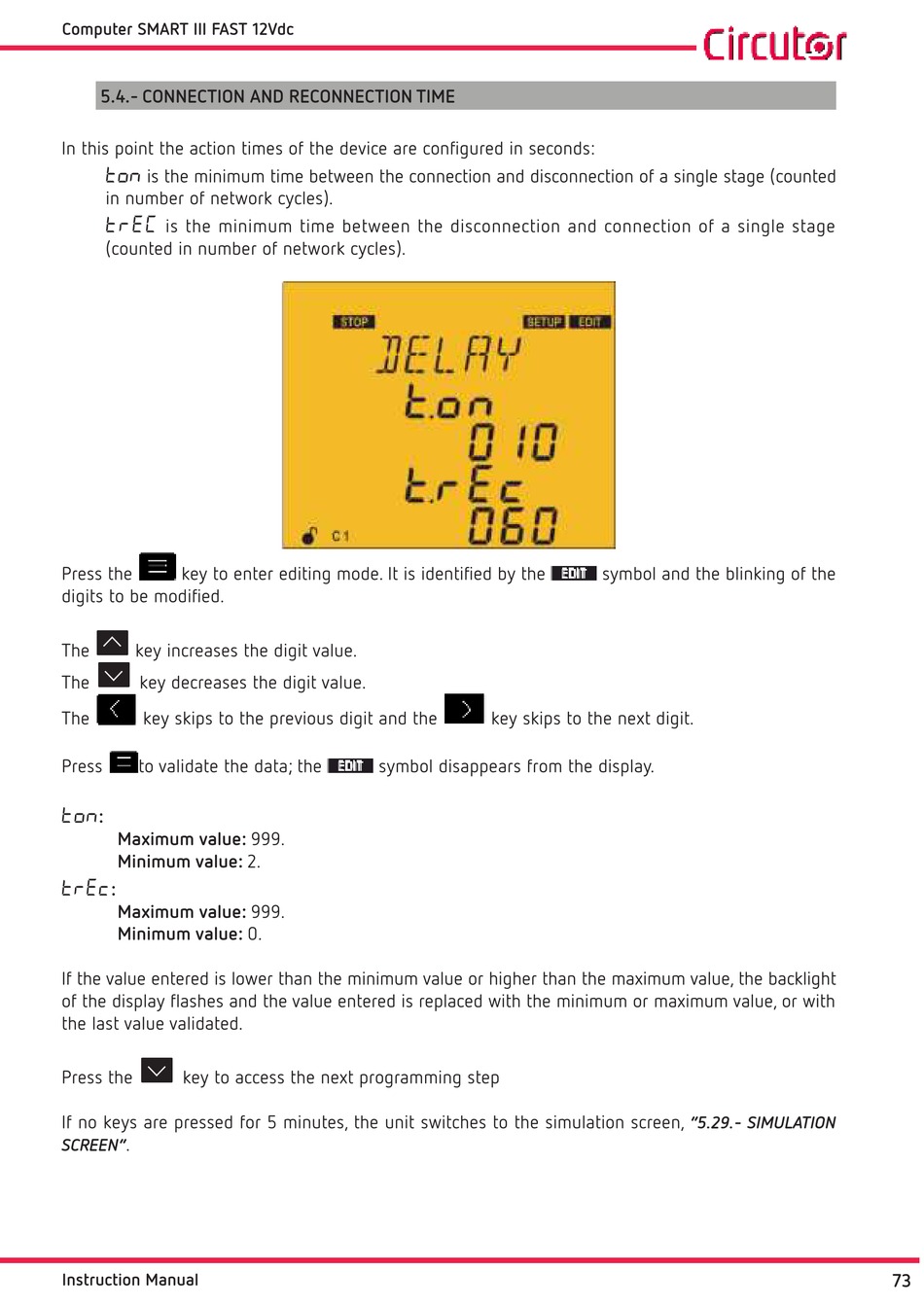

5�4�- CONNECTION AND RECONNECTION TIME
In this point the action times of the device are configured in seconds:
Ton
is the minimum time between the connection and disconnection of a single stage (counted
in number of network cycles).
TREC
is the minimum time between the disconnection and connection of a single stage
(counted in number of network cycles).
Press the key to enter editing mode. It is identified by the
digits to be modified.
The key increases the digit value.
The key decreases the digit value.
The key skips to the previous digit and the
Press to validate the data; the
Ton
:
Maximum value: 999.
Minimum value: 2.
Trec
:
Maximum value: 999.
Minimum value: 0.
If the value entered is lower than the minimum value or higher than the maximum value, the backlight
of the display flashes and the value entered is replaced with the minimum or maximum value, or with
the last value validated.
Press the key to access the next programming step
If no keys are pressed for 5 minutes, the unit switches to the simulation screen,
SCREEN" .
Instruction Manual
key skips to the next digit.
symbol disappears from the display.
symbol and the blinking of the
"5.29.- SIMULATION
73
