3�4�2�- 3 voltages + Neutral and 3 currents, Computer SMART III 12 FAST 12Vdc model�
Power
Supply
A1
Power
Supply
L1
L2
L3
N

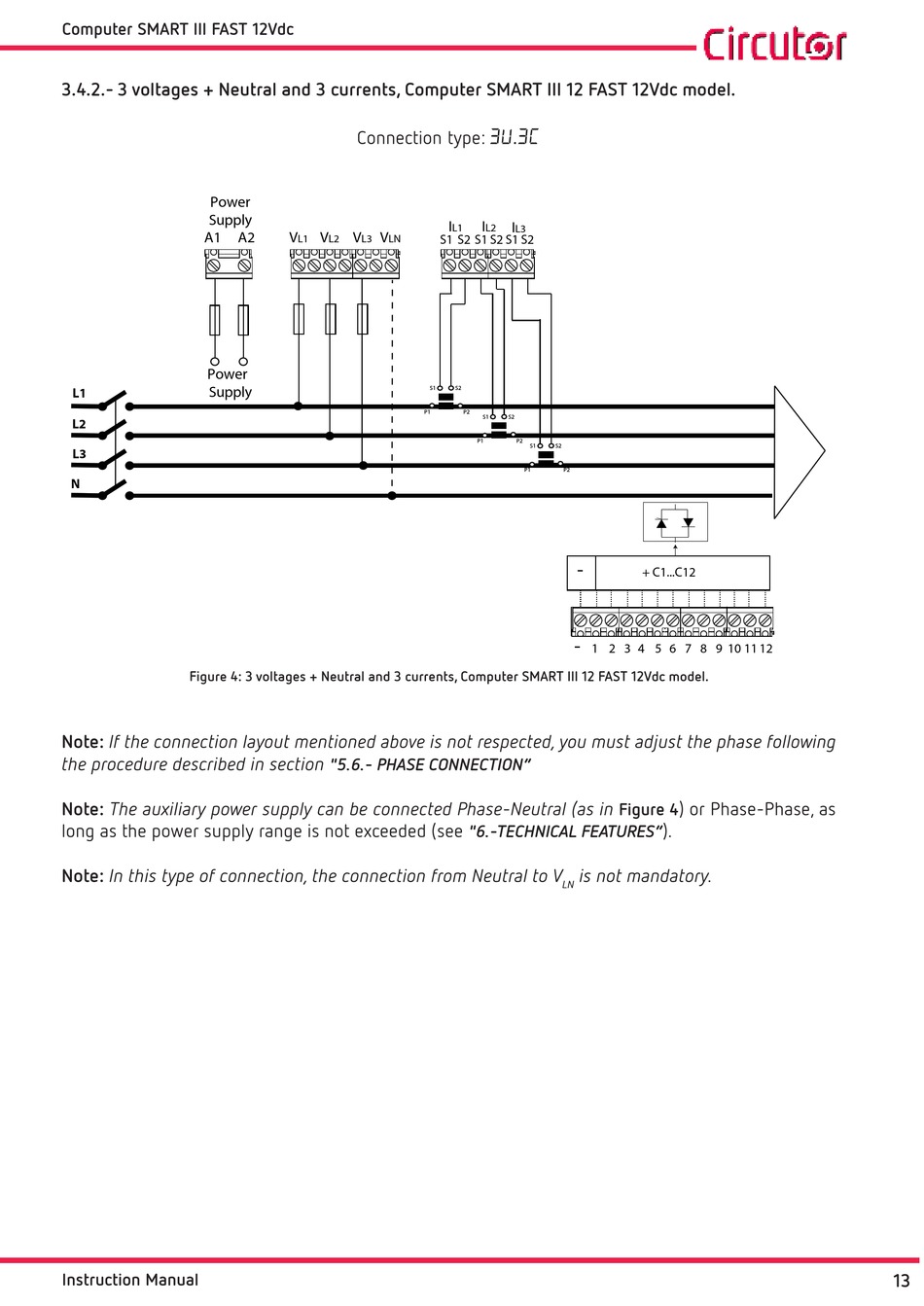

Figure 4: 3 voltages + Neutral and 3 currents, Computer SMART III 12 FAST 12Vdc model�
Note: If the connection layout mentioned above is not respected, you must adjust the phase following
the procedure described in section
Note: The auxiliary power supply can be connected Phase-Neutral (as in
long as the power supply range is not exceeded (see
Note: In this type of connection, the connection from Neutral to V
Instruction Manual
Connection type:
A2 V V V V
L1 L2 L3 LN
"5.6.- PHASE CONNECTION"
3U.3C
I I
I
L1 L2
L3
S1 S2 S1 S2 S1 S2
S1 S2
P1 P2
S1 S2
P1 P2
S1 S2
P2
P1
-
-
1 2 3 4 5 6 7 8 9 10 11 12
"6.-TECHNICAL FEATURES"
is not mandatory.
LN
+ C1...C12
) or Phase-Phase, as
Figure 4
).
