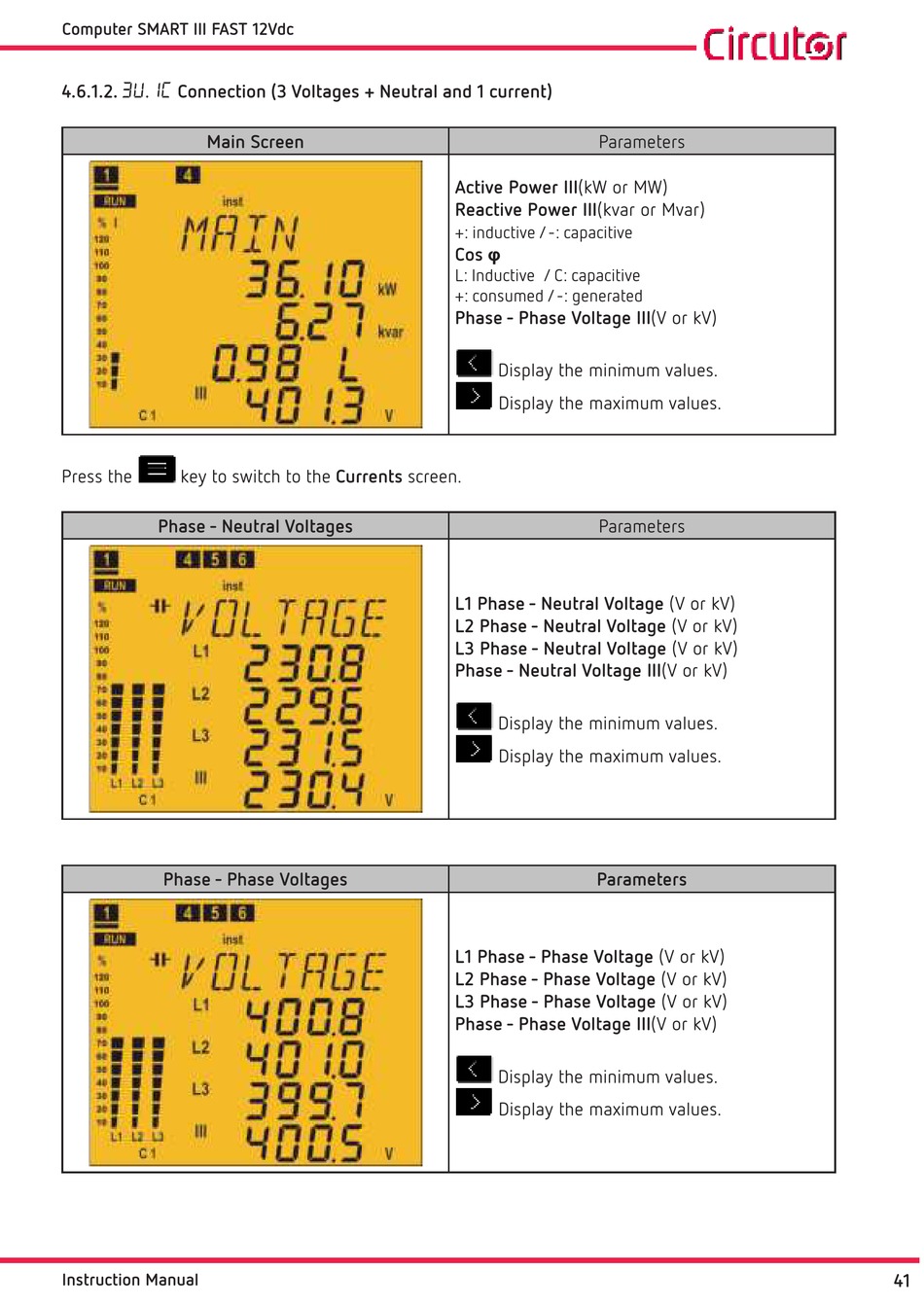

Computer SMART III FAST 12Vdc
3U.1C
4�6�1�2� Connection (3 Voltages + Neutral and 1 current)
Main Screen
Press the key to switch to the Currents screen.
Phase - Neutral Voltages
Phase - Phase Voltages
Instruction Manual
Parameters
Active Power III(kW or MW)
Reactive Power III(kvar or Mvar)
+: inductive / -: capacitive
φ
Cos
L: Inductive / C: capacitive
+: consumed / -: generated
Phase - Phase Voltage III(V or kV)
Display the minimum values.
Display the maximum values.
Parameters
L1 Phase - Neutral Voltage (V or kV)
L2 Phase - Neutral Voltage (V or kV)
L3 Phase - Neutral Voltage (V or kV)
Phase - Neutral Voltage III(V or kV)
Display the minimum values.
Display the maximum values.
Parameters
L1 Phase - Phase Voltage (V or kV)
L2 Phase - Phase Voltage (V or kV)
L3 Phase - Phase Voltage (V or kV)
Phase - Phase Voltage III(V or kV)
Display the minimum values.
Display the maximum values.
