Electrical Connections

4.4.2 ECL 2000 Type 1, 24 V

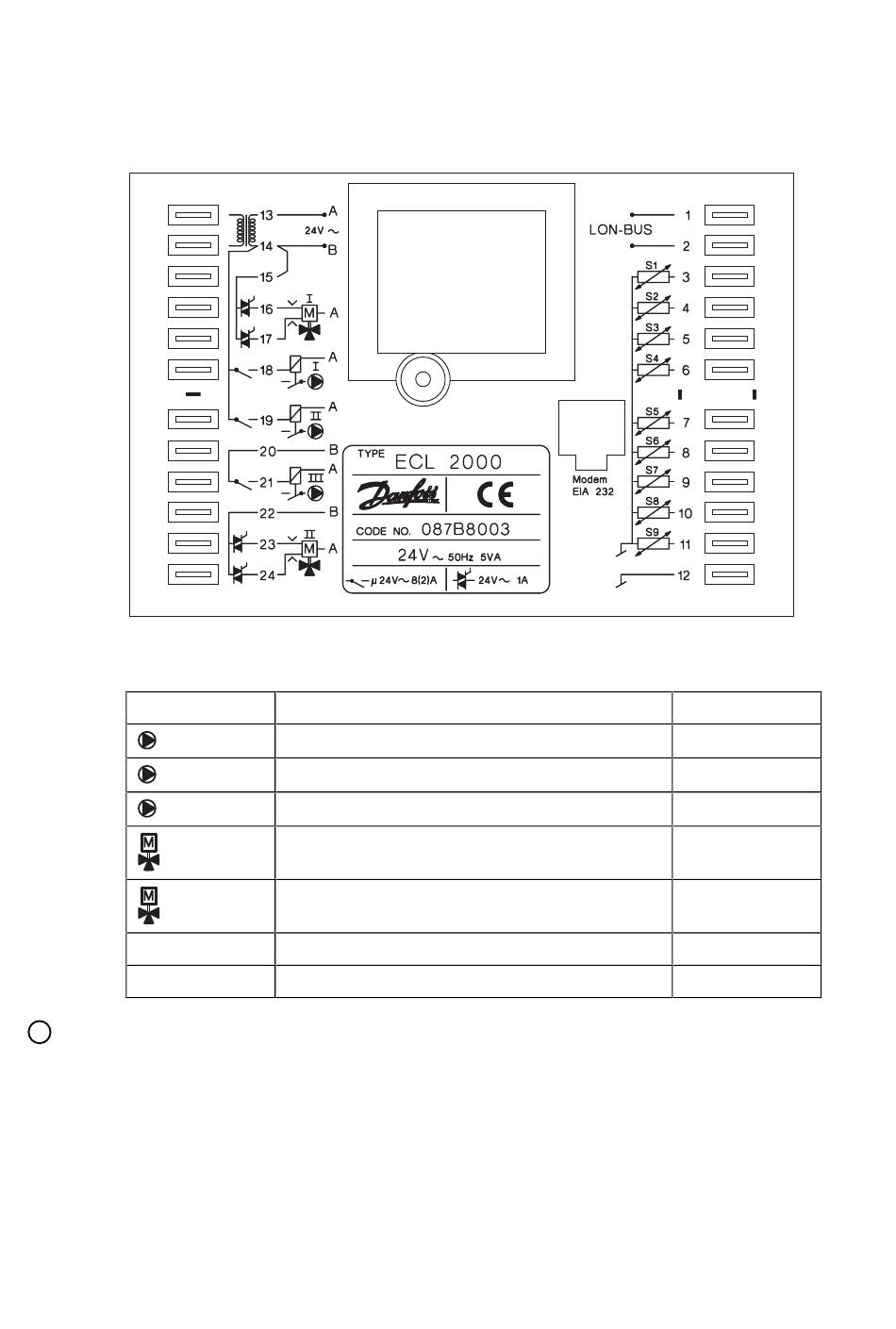

Figure 12. Rear side, ECL 2000 type 1, 24V (yellow label)
I/O
I
II
III
I
II
S1-S7
S8-S9
!
14
Description
Relay output pump, 24 V AC (NO)
Relay output pump, 24 V AC (NO)
Relay output pump, 24 V AC (NO)
3-point output motor valve
3-point output motor valve
Input: Pt 1000 temperature sensor
Input: Pt 1000, ESMF, 0-10V, pulse or digital
Note:
The LON bus connection (pin 1-2) is only active if the LON module has been fit-
ted in the controller.
EI.65.D4.02
Max. Load
4 (2)A 24V AC
4 (2)A 24V AC
4 (2)A 24V AC
1A/24V AC
1A/24V AC
–
–
