Mounting
3.1.1 Removal From the Case
6

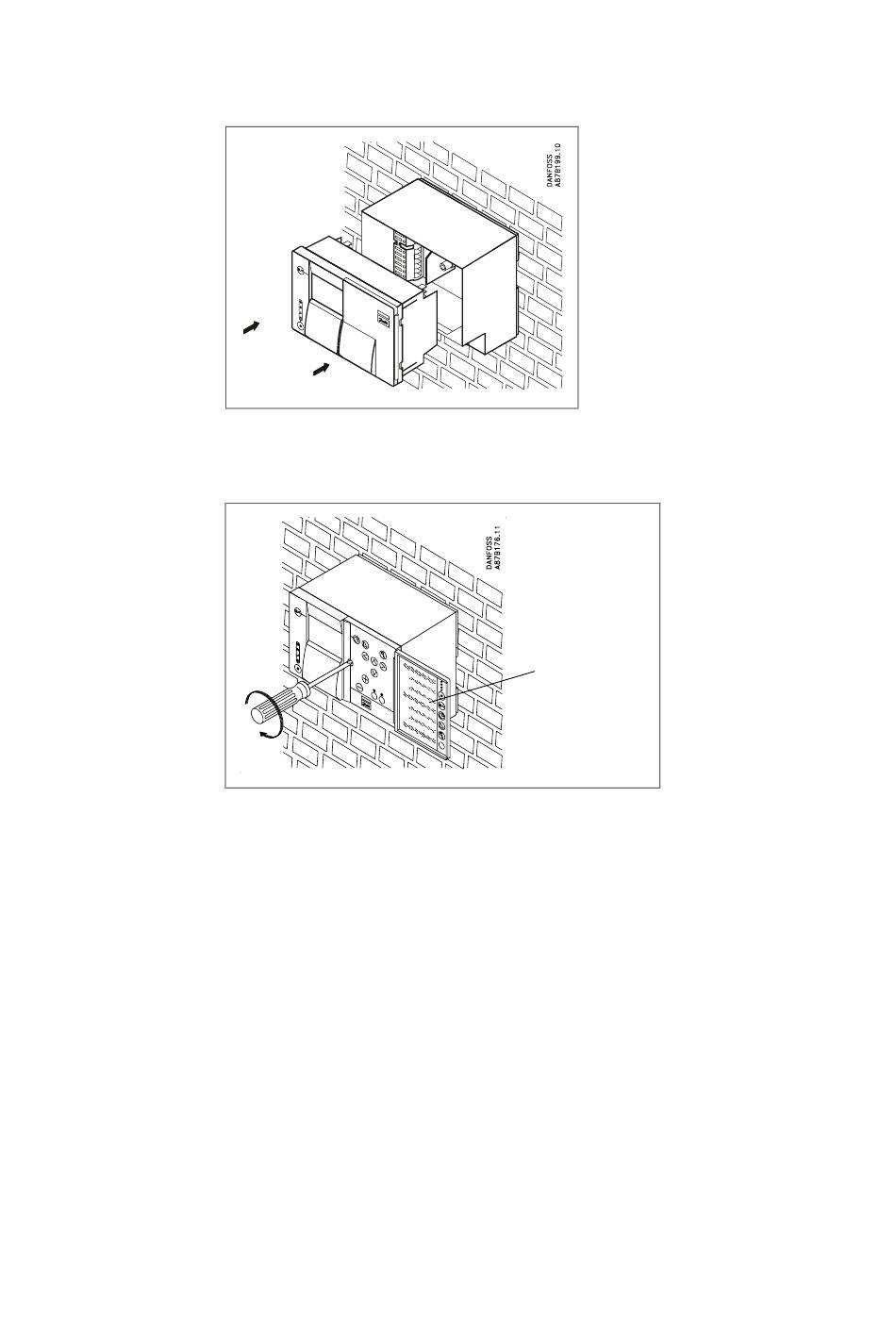

Figure 5. Mounting the controller in the case
6.
Secure the controller with the fixing screw (see Figure 6).
Figure 6. Wall mounting
To remove the controller from the case:
1.
Remove the fixing screw (see Figure 6).
2.
Hold the controller by the edge of the front panel and carefully work the
controller backwards and forwards to loosen the connectors on the con-
troller's rear side from the terminal blocks.
EI.65.D4.02
