4 INSTALLATION

4.11 Fill valve flow restrictor guidelines: Ensure side entry fill valve is fitted with the correct filter and
flow restrictor combination (dependant on the mains water pressure) into the G ½ threaded tail as
outlined below:
Coloured insert - To be used for water pressure between 1 and 4 bar
White insert - The Flowpress Mini is pre fitted with the white high pressure insert.
Change if the unit is slow to fill or the water pressure is low (below 4 bar).
4.12 Cold mains feed connection: The connection to the cold water mains inlet is made using a
suitable fitting to the G ½ male thread on the left hand side of the Flowpress Mini. When tightening
ensure the fill valve within the tank is not rotated. If the valve is rotated it may not function correctly
with the risk of flooding. (Do not overtighten).
4.13 Wall plate fixing:
1. When installing the Flowpress Mini on a wall ensure suitable fixings for the wall structure are
used and are suitable to support the unit when fully filled with water (see technical section
for filled weights). The holes in the wall plate are 6 mm in diameter, the maximum permissible
screw head height is 3 mm.

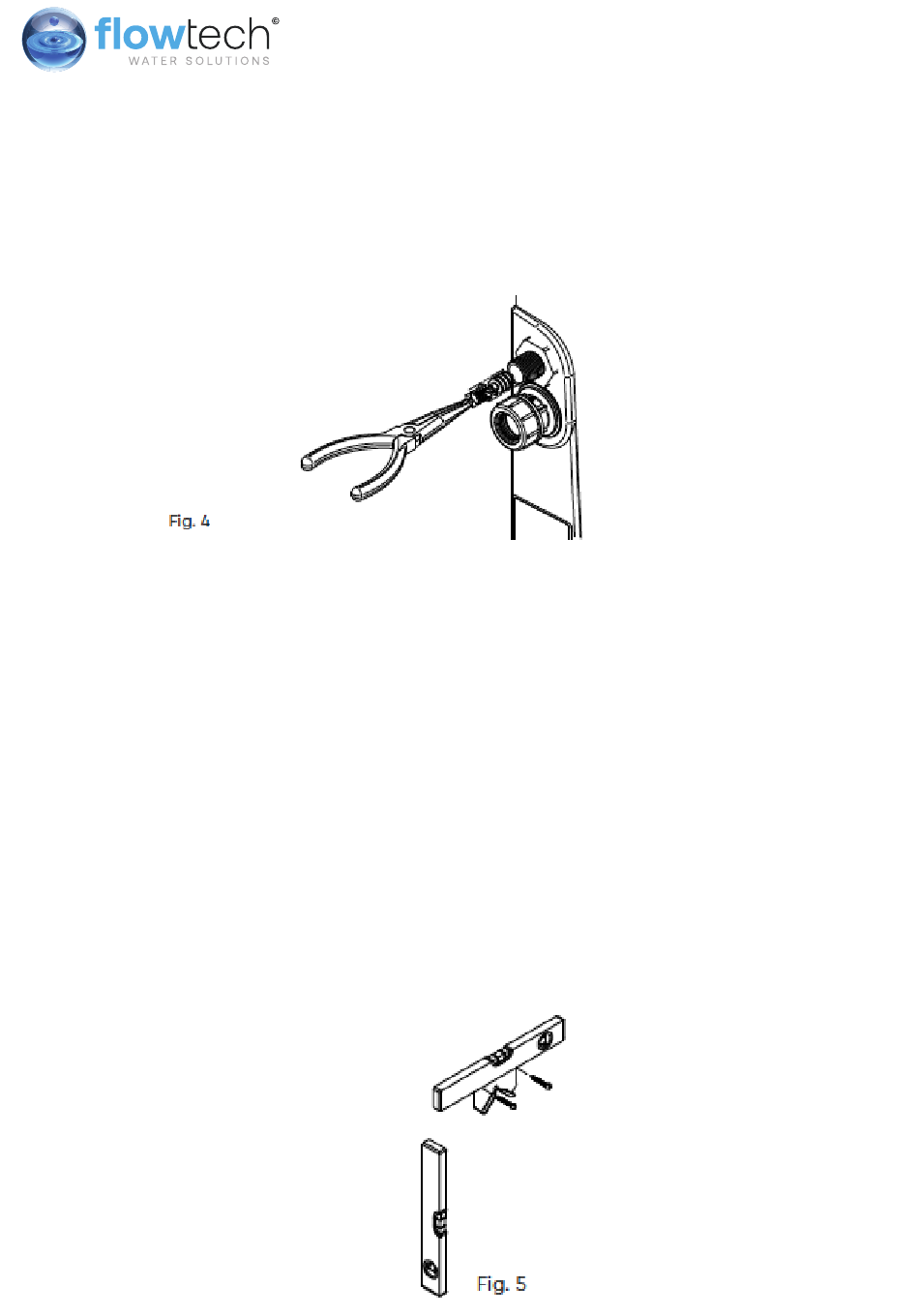

2. All holes in the wall mounting plate must have fixings used in them as per the image below,
do not leave out fastenings as this will compromise the integrity of the wall plate.
3. Ensure you have sufficent room around the area you are mounting the Flowpress Mini to
allow installation, servicing and operation. See section 2.12.
4. Ensure wall plate is fixed to a flat vertical wall and the top of the plate is horizontal.
