Handling; Installation Dimensions - FLOWTECH flowboost F.V Operation And Maintenance Manual

Transportation
The product is packed to maintain the content intact.
During transportation avoid to stack excessive weights.
Ensure that during the transportation the box cannot move.
It is not necessary to use any special vehicle to transport the packaged device.
The transport vehicles must comply, for the weight and dimensions, with the chosen product (see technical
catalogue dimensions and weights).

Handling

Handle with care, the packages must not receive impacts.
Avoid to impact onto the package materials that could damage the pump.
If the weight exceeds 25 Kg the package must be handled by two person at the same time.

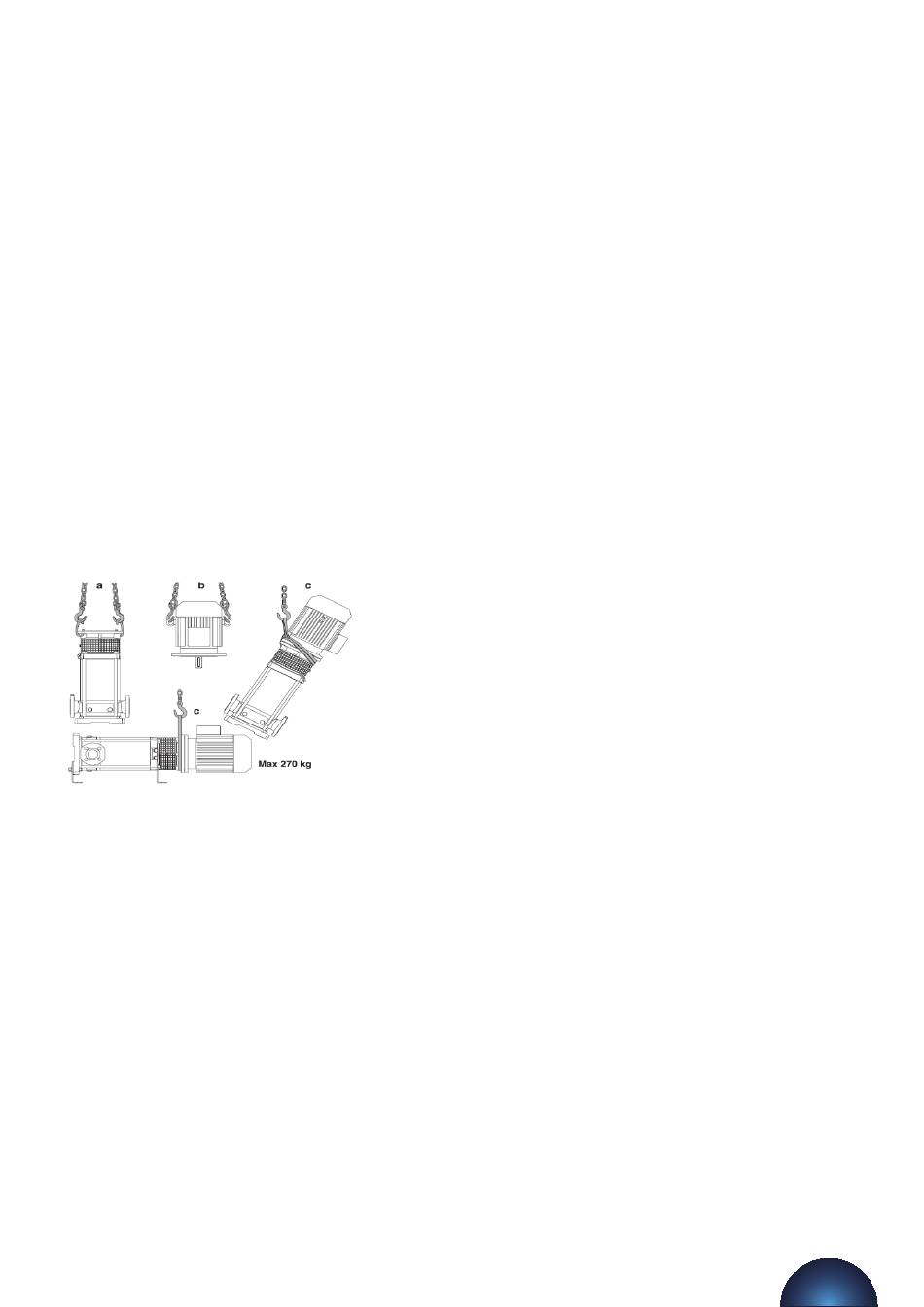

Raise and transport the pump and pump-motor unit (without packaging) as indicated in fig. 1, (Only for model
50, before moving the pump, fix the clamps with the screws to the flange.
Raise the pump-motor unit slowly (fig.1c), making sure it does not move from side to side in an uncontrolled
way, to avoid the risk of imbalance and tipping up. For horizontal raising, brace the pump in a sling close to
the centre of gravity.
a. Raising pump without the motor
b. Raising motor without the pump
c. Raising pump with motor

Installation Dimensions

For the dimensions of the device (see technical catalogue).
Ambient requirements and installation site dimensions
The customer has to prepare the installation site in order to guarantee the right installation and in order to fulfil
the device requirements (electrical supply, etc.).
The place where the device will be installed must fulfil the requirements.
It's absolutely forbidden to install the machine in an environment with potentially explosive atmosphere.
Unpacking
Inspect the device in order to check any damages which may have occurred during transportation.
Package material, once removed, must be discarded/recycled according to local laws of the destination
country.
