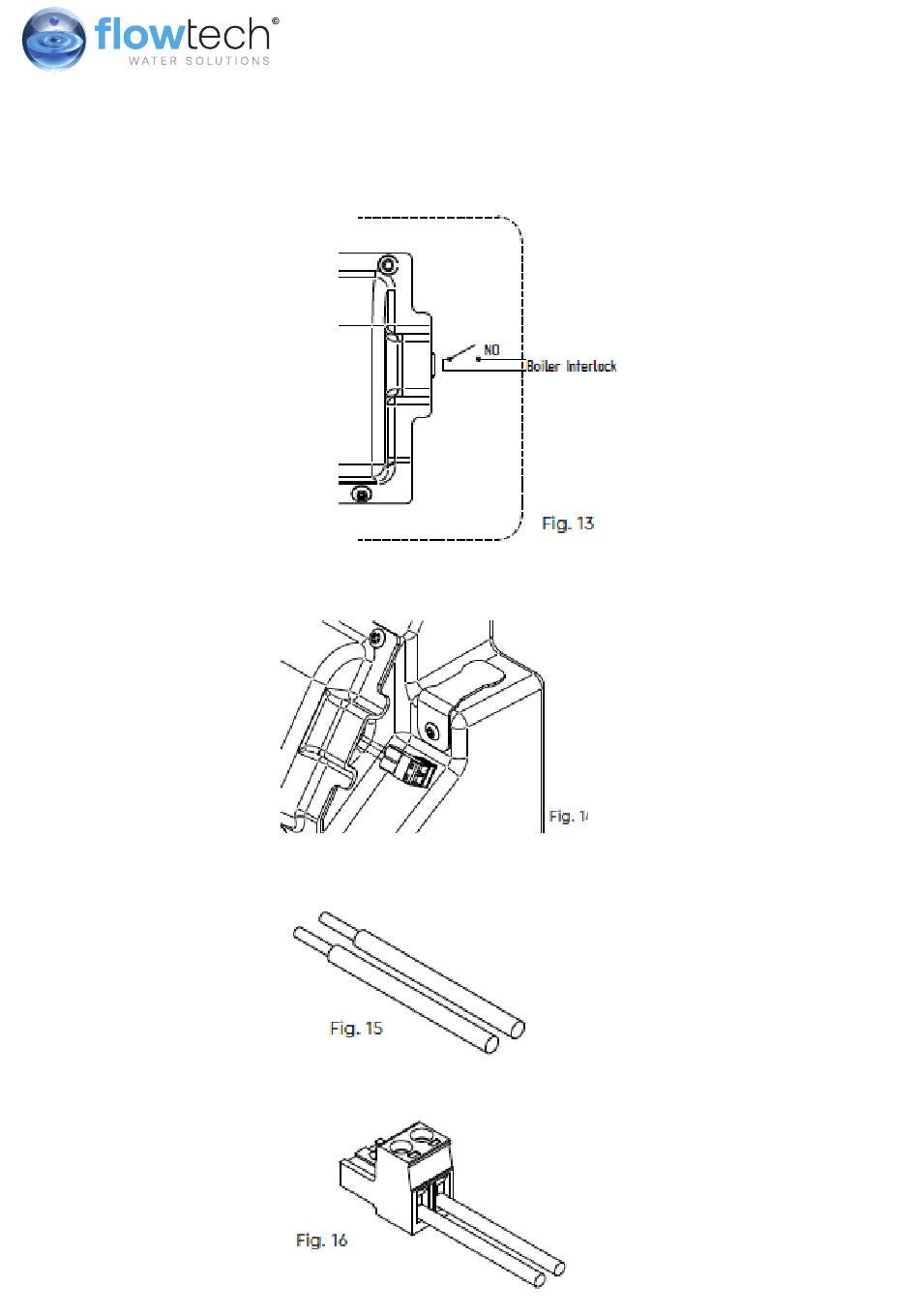

5.23 Alarm and boiler interlock connections:
bolt
For connection of output relays follow the steps and images below:
1) Remove the required green connector from the right hand side of the control board.
2) Strip 6-8 mm insulation from the end of the connection wire (Max 1.5 mm2 CSA).
3) Insert wire into connector and screw down terminal screws to secure (0.6 Nm max.).
The circuit connected to the relay is limited to 5 Amps, 230 V a.c.
maximum. The Installer MUST fit a 5 Amp fuse in the circuit to the
alarm relay to protect the Flowpress Mini from damage.
