1.3

ADSL Router Overview

1.3.1 Front Indicators

Fig 1-2 shows the front indicators of the ADSL Router.
LED Name
1. Pow er
2. Ethernet(E1 - E4)
3. Wireless
4. USB
5. DSL
6. Internet
ADSL2+ 4-Port Ethernet USB Wireless-G Router - Easy Start
3
1 2

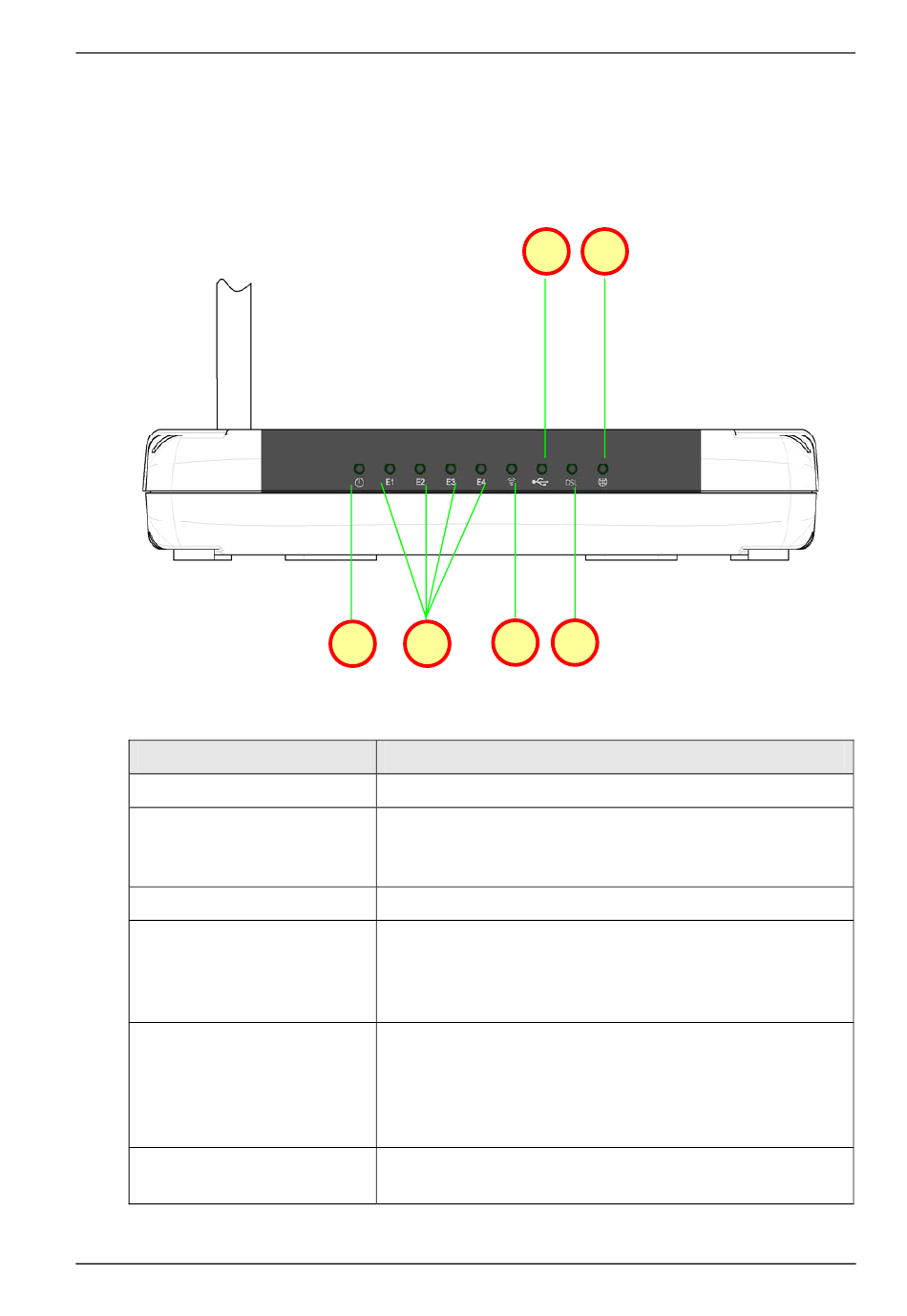

Figure 1-2 : Front Indicators
Lights up when power is supplied to the ADSL Router.
Lights up when the Ethernet cable is properly connected
from your ADSL Router to the Ethernet Card. Flickers
when the ADSL is transmitting/receiving data.
Flickers when the Wireless LAN is operational
Lights up when the USB cable is properly connected
from your ADSL Router to the USB slot. Lights Off
when the USB cable is not connected or it is properly
disconnected.
Lights off whe n no Telephone jack (RJ-11) is connected.
Flickers when the ADSL Router is trying to establish a
connection with the ADSL Service Provider (Training).
Steady Green LED. Lights up
connection is established.
Green LED lights up w
established. Lights off when no PPP connection.
4 6
5
Status & Meaning
when the ADSL
hen the PPP connection is
.
