1.4

Typical Wireless-G Router Connection

Fig 1-4 below shows up to 4 PCs connections.
To connect to more than 4 computers/notebooks, you may further expand one of the Ethernet
Ports via an Ethernet Hub/Switch. See Fig 1-5. For details on how to connect to the Ethernet
Switch/Hub, please refer to the documentation that comes with the unit.
ADSL2+ 4-Port Ethernet USB Wireless-G Router - Easy Start
Computers or Notebooks with Ethernet
Network Cards.
ADSL Router

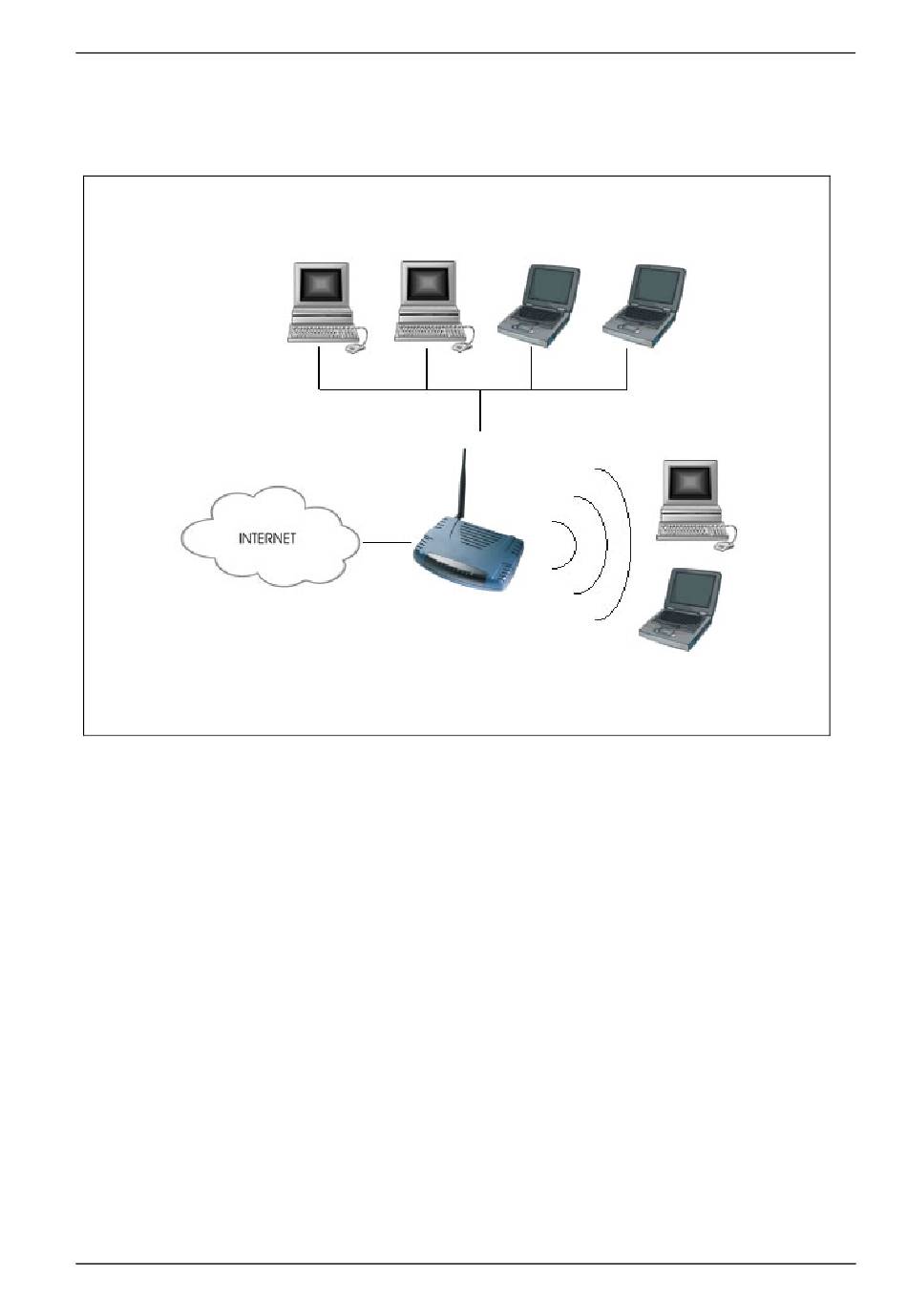

Figure 1- 4 : 4 PCs Connection Diagram
Computers or Notebooks with
Wireless PC cards or USB Clients.
