Aztech Easy Start Manual page 34

ADSL2+ 4-Port Ethernet USB Wireless-G Router - Easy Start
You need to enter the Username, Password, VPI and VCI provided by your ISP to connect to
the Internet (please contact your ISP if you are not aware of the details for VPI, VCI Username
and password). You need to select the protocol. Click "Continue" to proceed. See Fig 1-39.

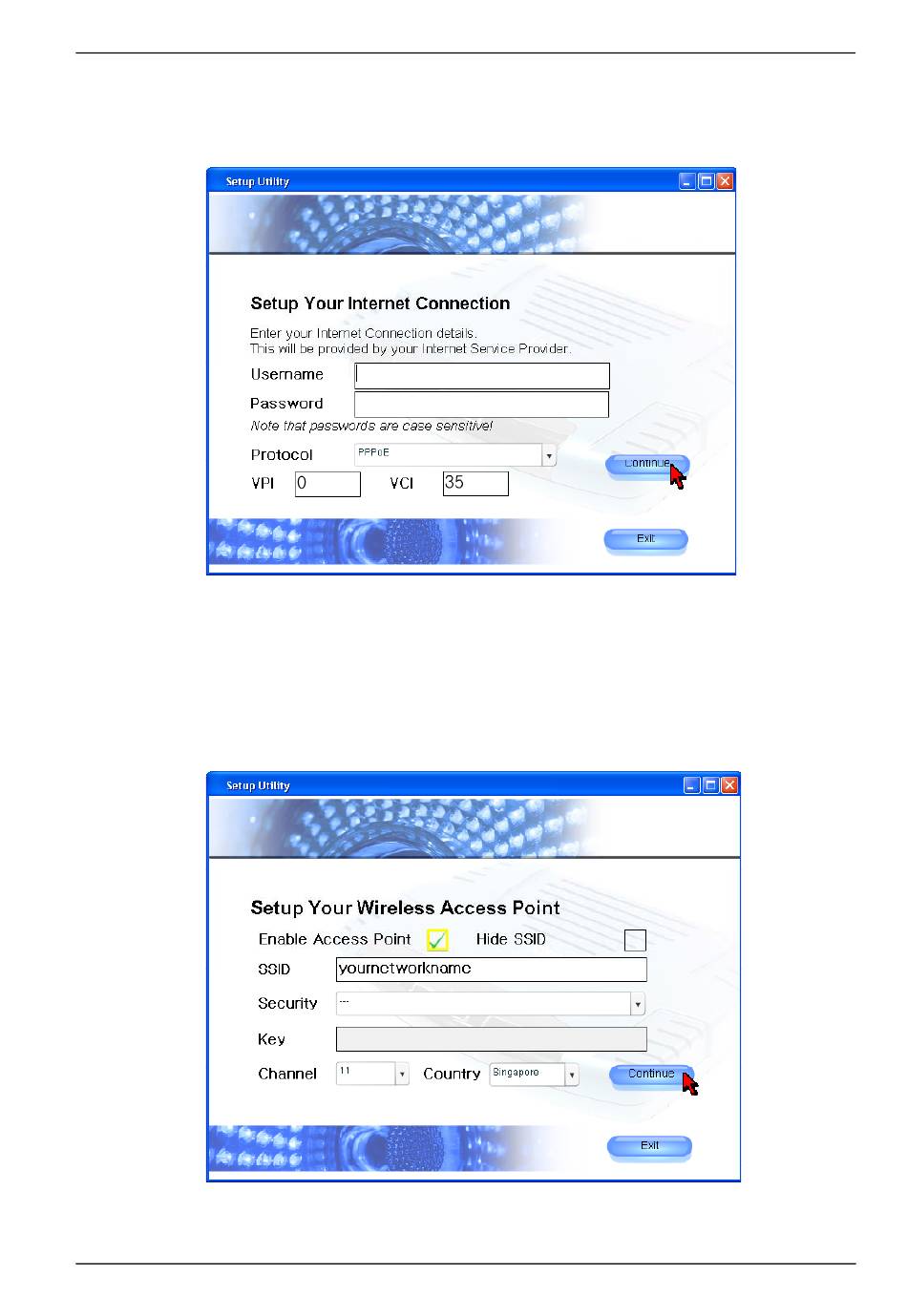

Figure 1-39 : Internet Connection Setup
You can choose to enable or disable wireless access point, and hide SSID. Enter a unique SSID
for your access point. When security is enabled you will be able to manually enter a 10 digits or
26 digits HEX (0-9 and a-f) WEP key. Alternatively, you can select 5 characters or 13
characters ASCII WEP key. Select your wireless channel and country type to configure your
wireless settings. Click "Continue" to proceed. See Fig 1-40.
Figure 1-40 : Wireless Access Point Setup
Page 34 of 46
