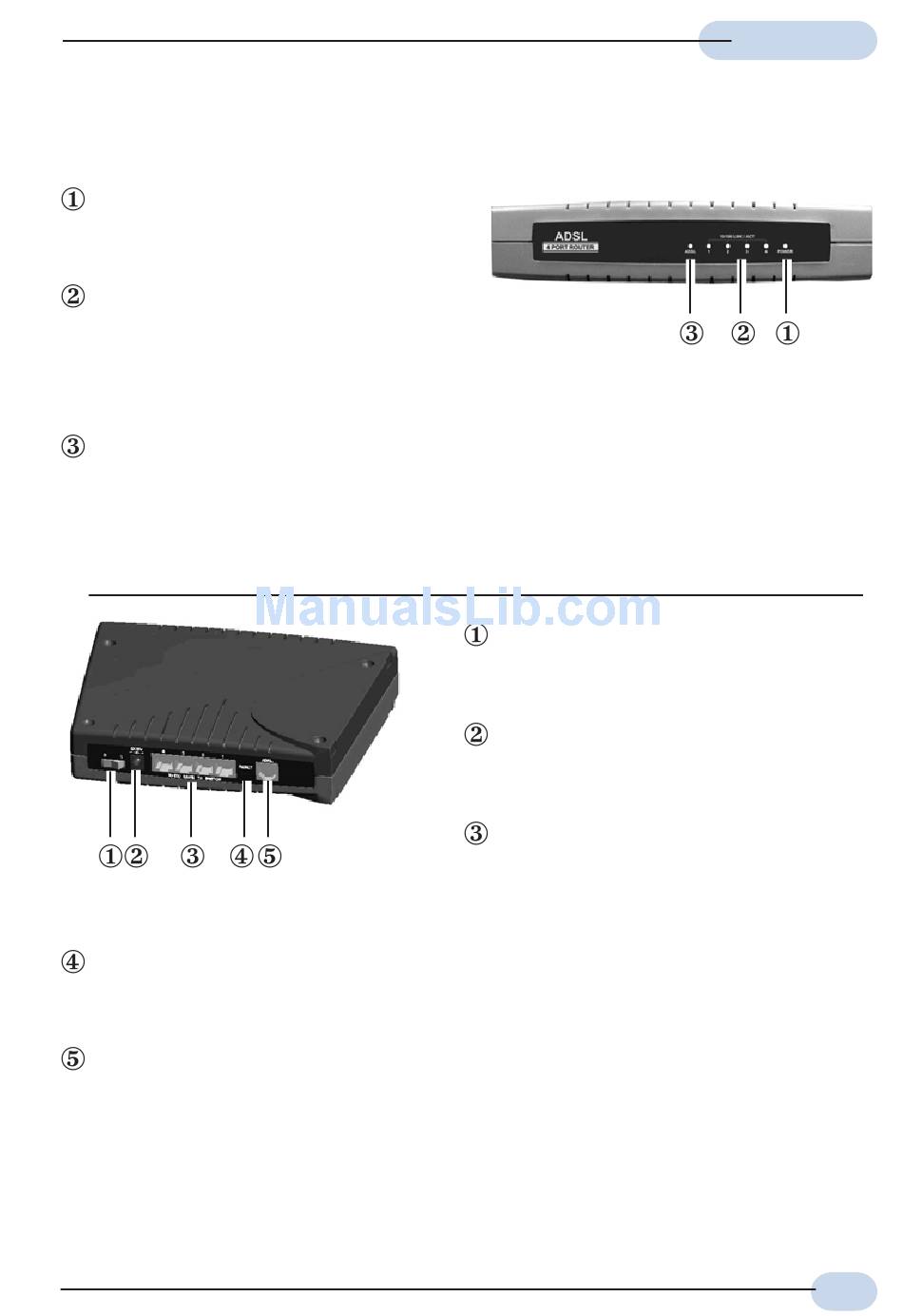

Adsl Router Overview - Aztech ADSL 4 Port Ethernet Router Easy Start

Power LED
Lights up when Power switch (at
the rear) is pressed ON.
10/100 LINK/ACT (1 to 4)
Lights up when the Ethernet link
is established.
Flickers at a slower interval when there is data transfer at 10 Mbps.
Flickers at a faster interval when there is data transfer at 100 Mbps.
ADSL
Lights up when the ADSL Line is established.
Flickers at a slower interval when ADSL Router is trying to establish an ADSL
connection with your ADSL Service Provider.
Flickers at a faster interval when there is data transfer.
Reset
To reset your ADSL Router to factor y default settings. All customised settings that
you have saved will be lost! Refer to the footer
ADSL
Telephone jack (RJ-11) to connect to the ADSL Line.
4 To activate the reset function:
- Ensure that the ADSL Router is powered on.
- Use a pencil tip or a paper clip to depress the reset button for about 5 seconds and release. DO
NOT POWER OFF OR RESTART THE ADSL ROUTER FOR THE NEXT 20 SECONDS! This is to allow
sufficient time for the Router to complete the reset function. The factory default settings will be
restored.

ADSL Router Overview

Switch
To power on or off the ADSL Router.
(O - OFF position; I - ON position)
DC5V
To connect to the Power Adapter that
comes with your package.
10/100 BASE TX SWITCH (1 to 4)
10 / 100 Base-TX Ethernet jack (RJ-
45) to connect to your Ethernet card or
Ethernet Switch/Hub.
on how to activate the reset function.
4
