How to configure Internet on Aztech HW-550 3G?
Aztech-HW550
Connecting to the Internet:
To Connect to the Internet via the Web User Interface:
1. Open your Internet web browser.
2. Type http://192.168.2.1 in the address bar and press enter. This opens the login authentication
page.
3. Type your Username and Password. Your default Username and Password is admin/admin.

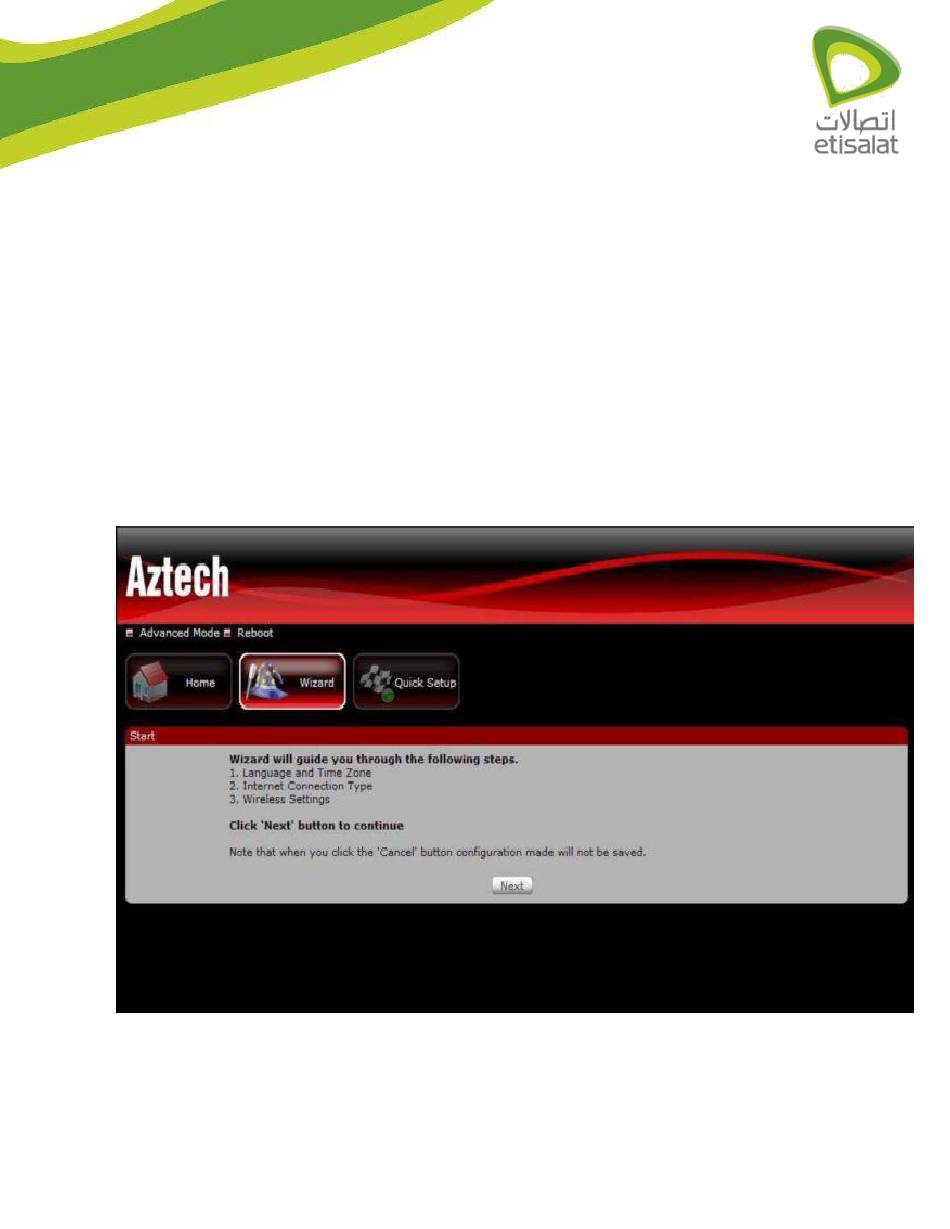

4. Click the Wizard Tab then Follow the step-by-step guide on how to setup the router.
5. Select the Language and Time zone from the drop down box then click Next to continue.
ADSL Routers Configuration
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for Aztech HW550
Summary of Contents for Aztech HW550
- Page 1 ADSL Routers Configuration How to configure Internet on Aztech HW-550 3G? Aztech-HW550 Connecting to the Internet: To Connect to the Internet via the Web User Interface: 1. Open your Internet web browser. 2. Type http://192.168.2.1 in the address bar and press enter. This opens the login authentication page.
- Page 2 ADSL Routers Configuration 6. Select the Internet Connection type then click Next to Continue. If you choose UMTS (3G), you are required to have the following: - USB Modem Stick - Broadband data SIM card If you choose WAN, you are required to have the following: - DSL or cable modem.
- Page 3 ADSL Routers Configuration 7. UMTS 3G connection Please connect your USB modem stick to HW550-3G and make sure that your data SIM card is properly inserted into the modem. - Access Point Settings – Choose between List and Manual. List will provide the APN set by your Internet Service Provider.
- Page 4 Static IP – select this if your ISP provides you the IP address, Subnet mask, Gateway and DNS server addresses. - DHCP - if you select this your HW550-3G will automatically get an IP address from the DHCP server or from your ISP.
- Page 5 PPPoE – select this if your ISP provides you the Username and Password for you to connect to the Internet. 9. Setup your wireless connection, tick Wireless Enabled to activate your wireless connection and set the SSID for your HW550-3G. Click Next to continue. Page 5 of 7...
- Page 6 ADSL Routers Configuration 10. Under Summary page verify the settings made then click ‘Apply’ for the settings to take effect. Page 6 of 7...
- Page 7 ADSL Routers Configuration Page 7 of 7...
