Summary of Contents for Aztech DSL8800GR

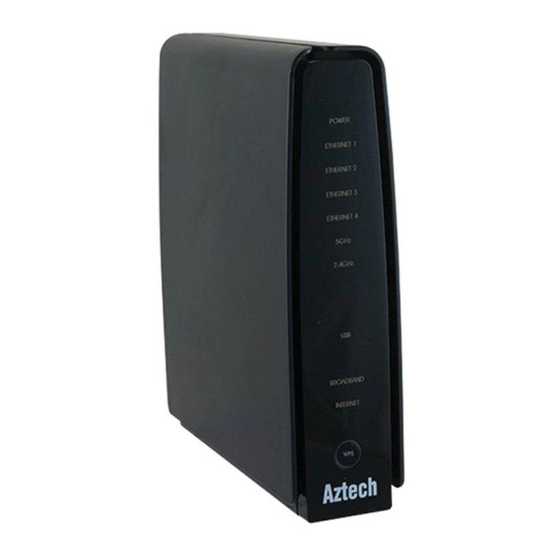

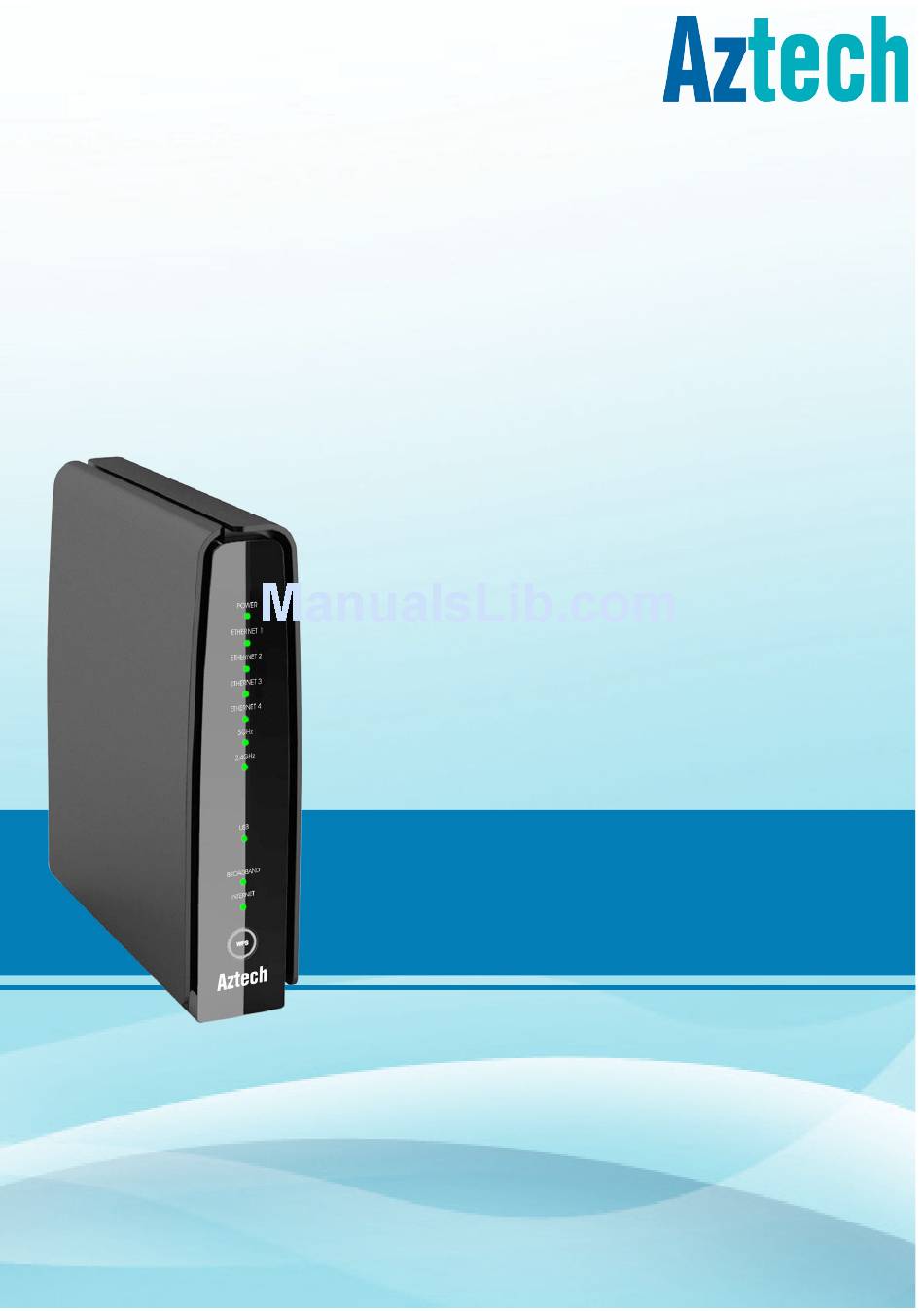

- Page 1 Easy Start Guide Version 1.0 DSL8800GR(S) WIRELESS-N DUALBAND CONCURRENT GIGABIT ROUTER WITH BUILT-IN ADSL2+ MODEM...
-
Page 2: Table Of Contents
Accessing the Web User Interface Modifying the Connection for first use Default Network Name and Network Key Connecting to your Wireless Network Configuring the 2.4GHz and 5.0GHz Wireless Troubleshooting Tips Aztech Technical Support Details DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE... - Page 3 Ethernet Cable DSL Microfilter Easy Start Guide The Easy Start Guide will help you setup your DSL8800GR(S) router and connect to the Internet, however, before proceeding with the installation, please prepare your internet account settings given by your Internet Service Provider.
- Page 4 DSL8800GR(S) Using Ethernet cable included package, connect your Ethernet device to your DSL8800GR(S) router through both of the devices’ available Ethernet ports. Connect the DSL Microfilter provided in the package to an Desktop/PC DSL Microfilter available phone jack in your house.
- Page 5 DSL8800GR(S) Using an Ethernet cable included in the package, connect your Ethernet device to your DSL8800GR(S) router through both of the devices’ available Ethernet ports. Connect another Ethernet cable to the Ethernet port of...
-
Page 6: Setting Up Your Internet Connection
You will be prompted to enter a username and password for authentication. Type admin as its username and admin as its password then click Log In. You will be redirected to your DSL8800GR(S) Web User Interface’s Quick Setup page. DSL8800GR(S) EASY START GUIDE... -
Page 7: Modifying The Connection For First Use
To modify the Connection for first use: On the Web User Interface, click Quick Internet Setup. The DSL8800GR(S) has an AUTO-DETECT feature that automatically detects if the connection is ADSL or FIBRE. NOTE: You may change the Connection Method, however, It is strongly advised that the Connection method is left to AUTO. -
Page 8: Default Network Name And Network Key
(if applicable). 3.3 DEFAULT NETWORK NAME AND NETWORK KEY Every DSL8800GR(S) device has been programmed with a unique Wireless Network Name (SSID) and a default Network Key (password). These details are displayed on the sticker located underneath your DSL8800GR(S) as seen below. -
Page 9: Connecting To Your Wireless Network
Connect button. The default wireless network name and network key can be seen on the label sticker of your DSL8800GR(S) as shown on 3.3. NOTE: If the wireless network name is not on the list, click the button to refresh the available wireless networks list. - Page 10 NOTE: The default network security key is found on the device sticker label as indicated on Section 3.3. If you are prompted to turn on sharing, choose “Yes, turn on sharing and connect to devices”. DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE...
- Page 11 By default, the Wireless features is enabled. If you wish to hide the SSID from active scans, simply tick the Non-Broadcast SSID check box. Input your desired SSID or Wireless Network Name. DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE...
- Page 12 Select your preferred Network Authentication Encryption. By default this is selected as Mixed WPA2/WPA-PSK. Enter your preferred Network Key. Click the Save/Apply button to save and apply wireless settings. DSL8800GR(S) EASY START GUIDE DSL8800GR(S) EASY START GUIDE...
-
Page 13: Troubleshooting Tips
TROUBLESHOOTING TIPS LED INDICATORS BEHAVIOUR Each LED indicator in your DSL8800GR(S) router aims to indicate activity in your device and even in your network. BEHAVIOR DESCRIPTION NAME No power is supplied to the device Power Green (Steady) Device is connected to a power supply There is no device connected to the corresponding port. -
Page 14: Frequently Asked Questions
Q2: How can I reset the DSL8800GR(S) to the factory default? A2: Press and hold the Reset button at the back panel of the DSL8800GR(S) for 10 seconds then release. Q3: How do I upgrade the firmware of my DSL8800GR(S) router? Is it advisable to do so? A3: When logged in to the web-based setup page, click Device Administration>... - Page 15 AzTECH TECHNICAL SUPPORT DETAILS Service Center Address: 31 Ubi Road 1 Aztech Building Lobby B 5th Floor Singapore 408694 Hotline: 6594 2297 Email: support@aztech.com Operating Hours Monday to Friday: 9:00 AM to 6:15 PM Saturday: 9:00 AM to 1:00 PM...
- Page 16 Copyright © 01 Aztech Technologies Pte Ltd (CRN:100M ). All rights reserved.
