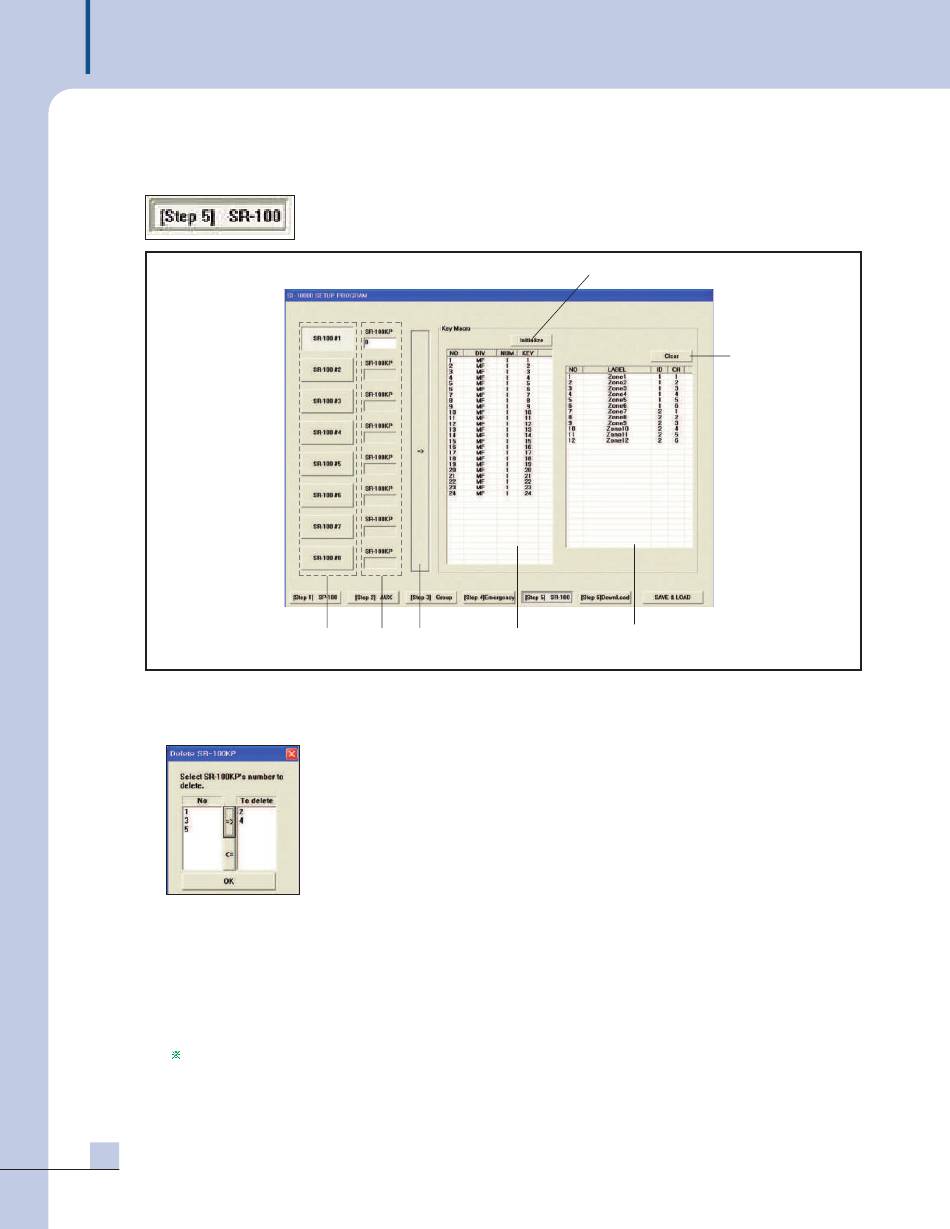

5. SR-100 setup [Step-5]
1) Selection of SR-100: Selects SR-100 to setup.
2) Input of SR-100KP N umbers: Inputs numbers of SR-100KP connected to the relevant SR-100.
3) Application of SR-100KP: Uses SR-100KP for changing numbers of SR-100KP.
4) Selection of key: Selects a key to setup.
- MF: Means 24 keys of the SR-100 main body.
- EXT: Means Extension (SR-100KP).
5) Selection of zone of the relevant key: Selects the zone to connect with a key of the selected SR-100. This is
zone that the selected zone is broadcast when pressing a SR-100 key.
6) Initialization of all key inputs of the relevant SR-100: Uses to initialize Macro for all keys of the selected SR-100.
7) Erase of KEY selection: Erases zone information stored at the key of SR-100.
Caution : Please setup zones for only SR-100 to actually use.
O peration speed of other SR-100 may drop if not connecting the relevant SR-100 after
selecting the zone of SR-100. For the SR-100 not be used, initialize all zones by pressing the
N o.6 button.
46
IPC SYSTEM
Sets a key of SR-100 to 1:1
1 2 3
- A Delete window pops up if inputting smaller numbers than those currently setup.
- Press the 'O K'button after selecting SR-100KP to delete.
6
4 5
7
