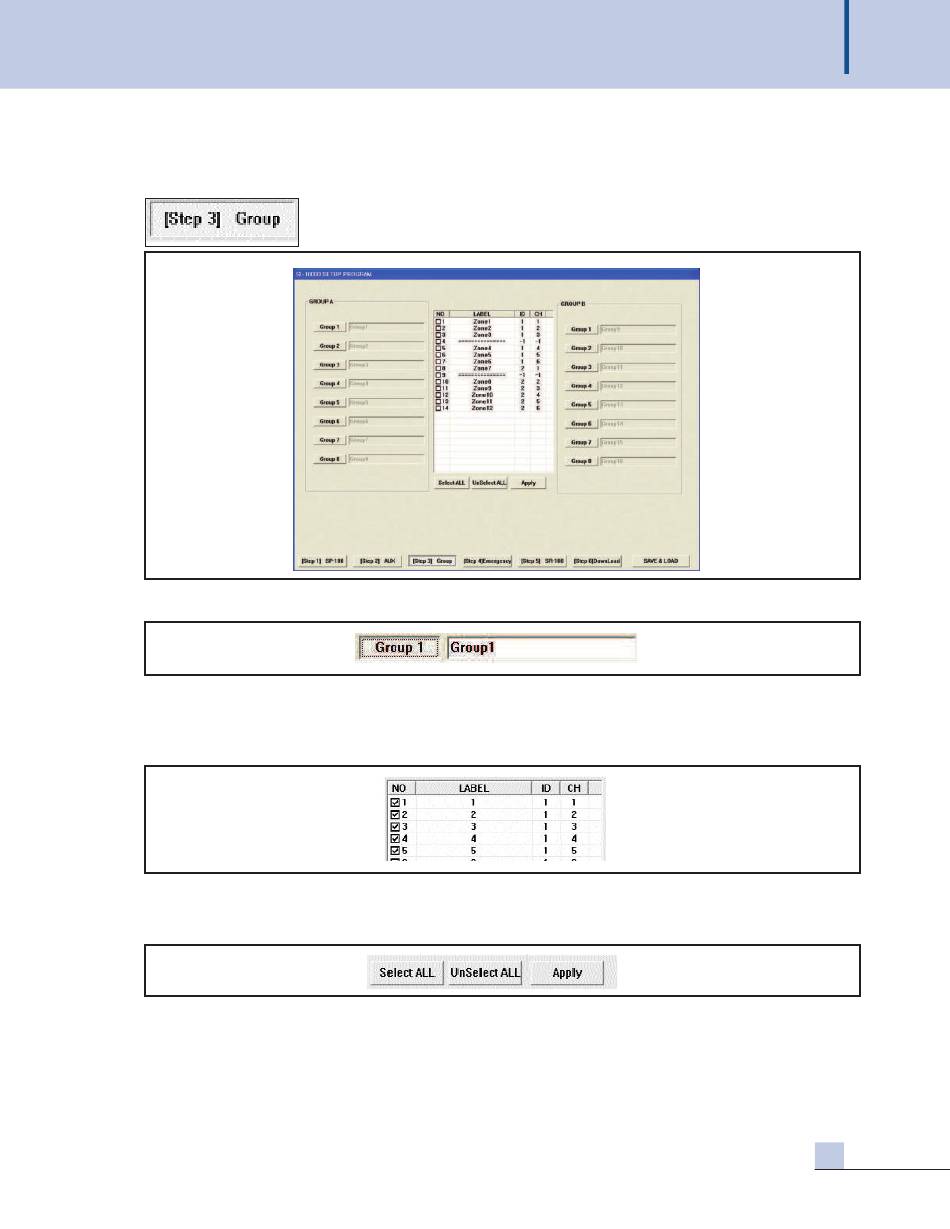

3. GRO UP setup [Step-3]
1) Group selection and label input
- Selects a group to setup and if the Label Input field is activated, input label.
- Deleting all labels enables to release the zone that is setup in the group.
2) Selection of zone
Select the zone to be belonged to the selected group. If selection is done, the check display appears.
3) Selection or release of all zones
- Select All: Selects all zones in the list.
- Release All: Release all area selections in the list.
4) Apply
If selection of the zone, which is belonged to the selected group, is completed, apply by pressing the Apply button.
Setup 16 total groups by 8pcs for A, B group.
It is convenient when using various zones together.
