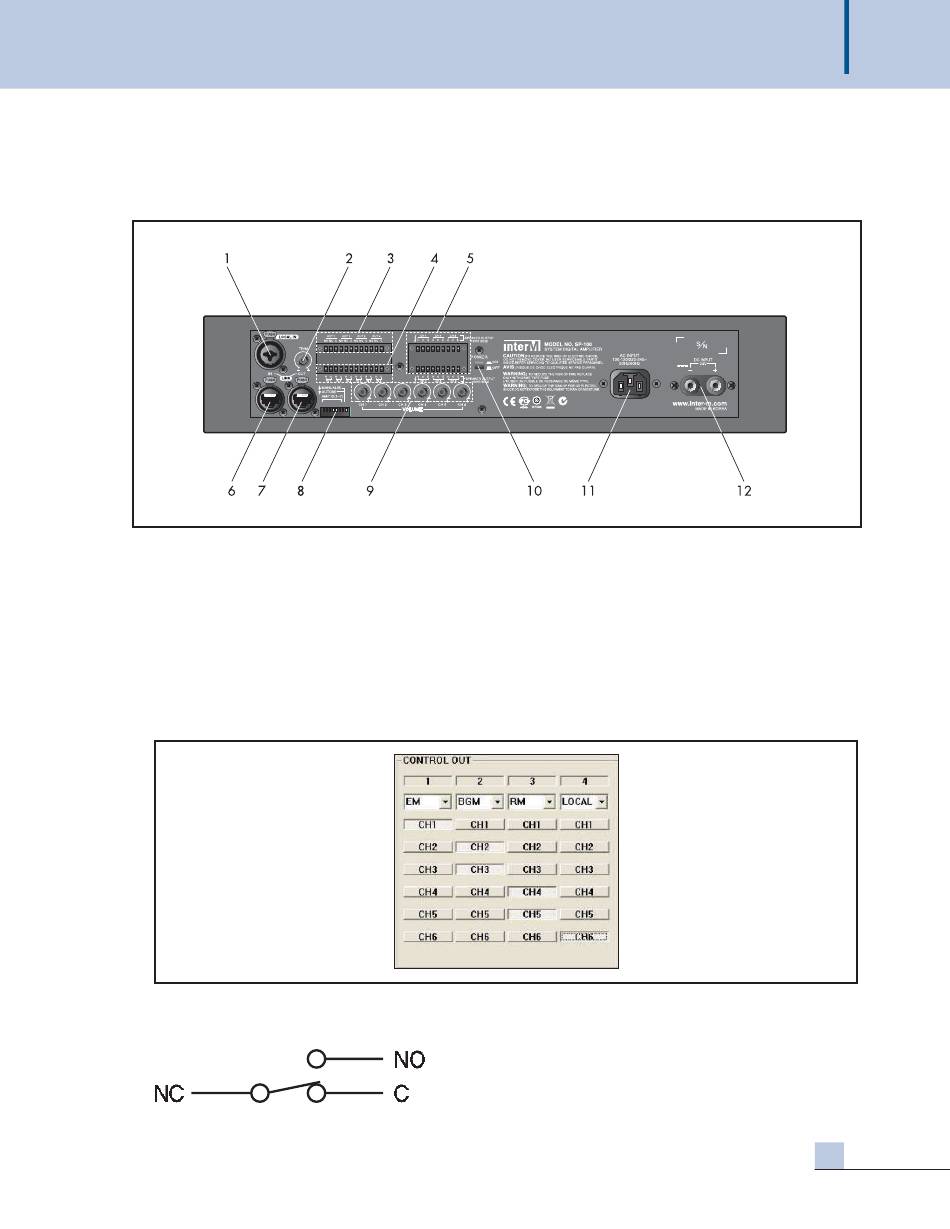

Rear Panel (SP-100)
Rear Panel (SP-100)
1. LOCAL INPUT
This is an input Jack of MIC and Line Level. According to the Local input volume, XLR input is -60dBV through
-16dBV, while Phone input is -43dBV through 0dBV.
2. LOCAL INPUT VOLUME
This is an input volume for input signal for XLR and PHONE input signal.
3. OUTPUT CONTACT
This sets up operation of the output contact in the Setup Mode of SI-100.
This also sets up operation specification so that the output contact lights on when a signal of EMERGENCY,
BGM, RM and LOCAL in CH1 through CH6. The output contact up to 4pcs can be setup.
INTER-M P.A CONVERGENCE SYSTEM
For the contact output, C and NC are connected in the contact
OFF status, C and NC are turned off and NO and NC are
connected in the contact on status.
