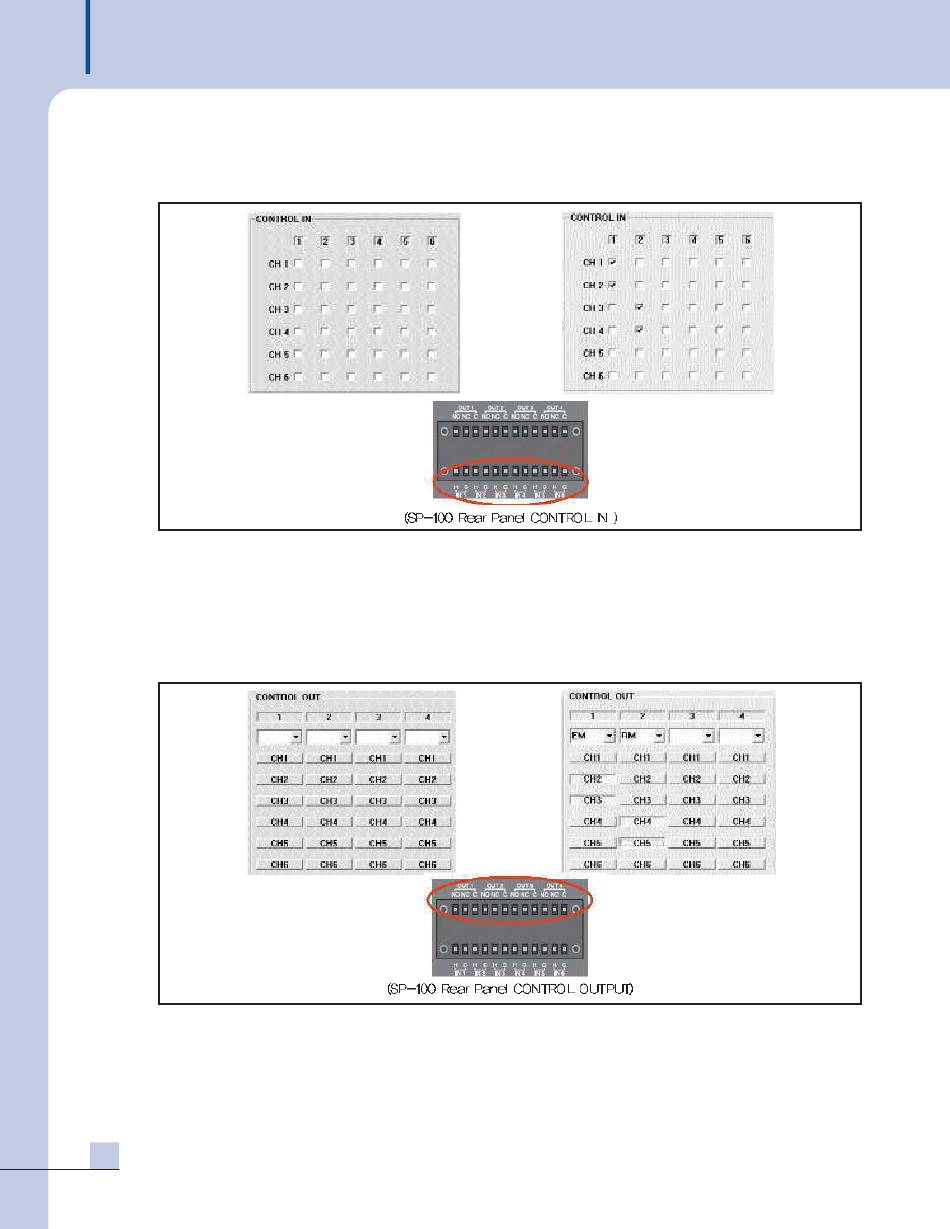

5) Control Input contact setup field of SP-100
- There are 6 input contacts at the back of SP-100. This contact broadcasts sound source, which is input into
the 'Local In' at the back side of SP-100, to the setup of output channel when the relevant contact is input.
- If setup is done as in the second figure, it means that sound source of 'Local In' is broadcast to CH.1 and
CH.2 of SP-100 output when IN .1 contact is input.
- Likely, sound source of 'Local In' is broadcast to CH.3 and CH.4 of SP-100 output when IN.2 contact is input.
6) Control output contact setup field of SP-100 unit
- There are 4 output contacts in SP-100. They setup output contact for input broadcasting.
- If broadcasting of the source, the contact, that is setup to the relevant channel, is output.
- If setup is done as in the second figure and EM broadcasts to the output channel CH.2 or CH.3 of SP-
100, then the contact of O UT 1 is O N .
- Similarly if SR-100 broadcasts to the output channel CH.4 or CH.5 of SP-100, then the contact of O UT 2
is O N .
