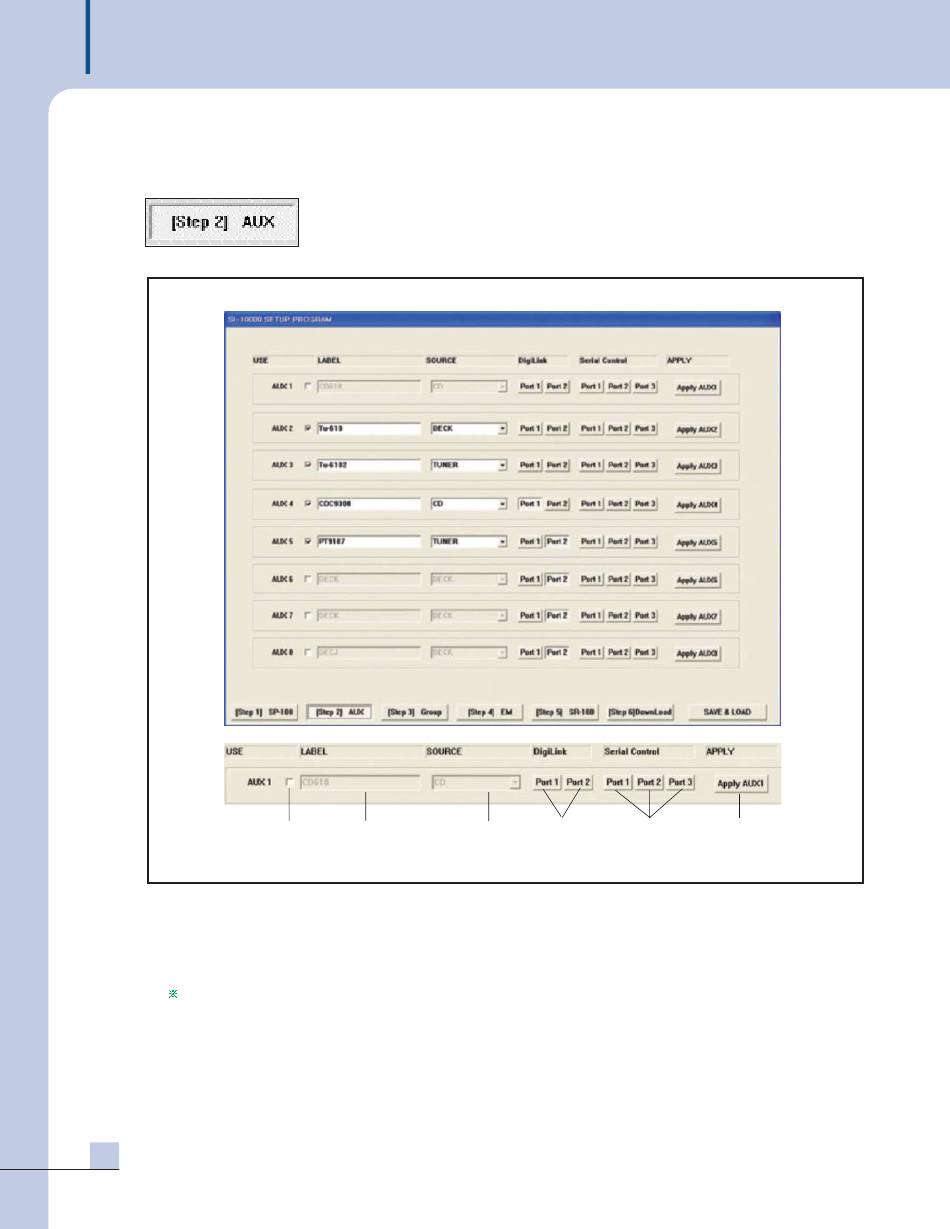

2. AUX setup [step-2]
1) Selection of whether inputs are used
2) Label input: Inputs label of input source.
3) Selection of source: Selects types of input source. (CDP/ DECK/ TUN ER/ MIC/ ETC)
4) Selection of DIGI-Link port: Selects the connected place of the back DIGI-Link ports.
Caution : It is impossible to use DIGI-Link with our PC-9335AD unit.
5) Selection of serial control port: Selects the connected place of the back Serial Control ports.
6) Apply: If inputs are completed, apply by pressing the Apply button.
42
IPC SYSTEM
There are 8 A UX inputs at the back of the SI-100 unit. This is a step to setup
whether inputs are used, label, select of source, selection of unit, DIGI-Link port
setup and availability.
