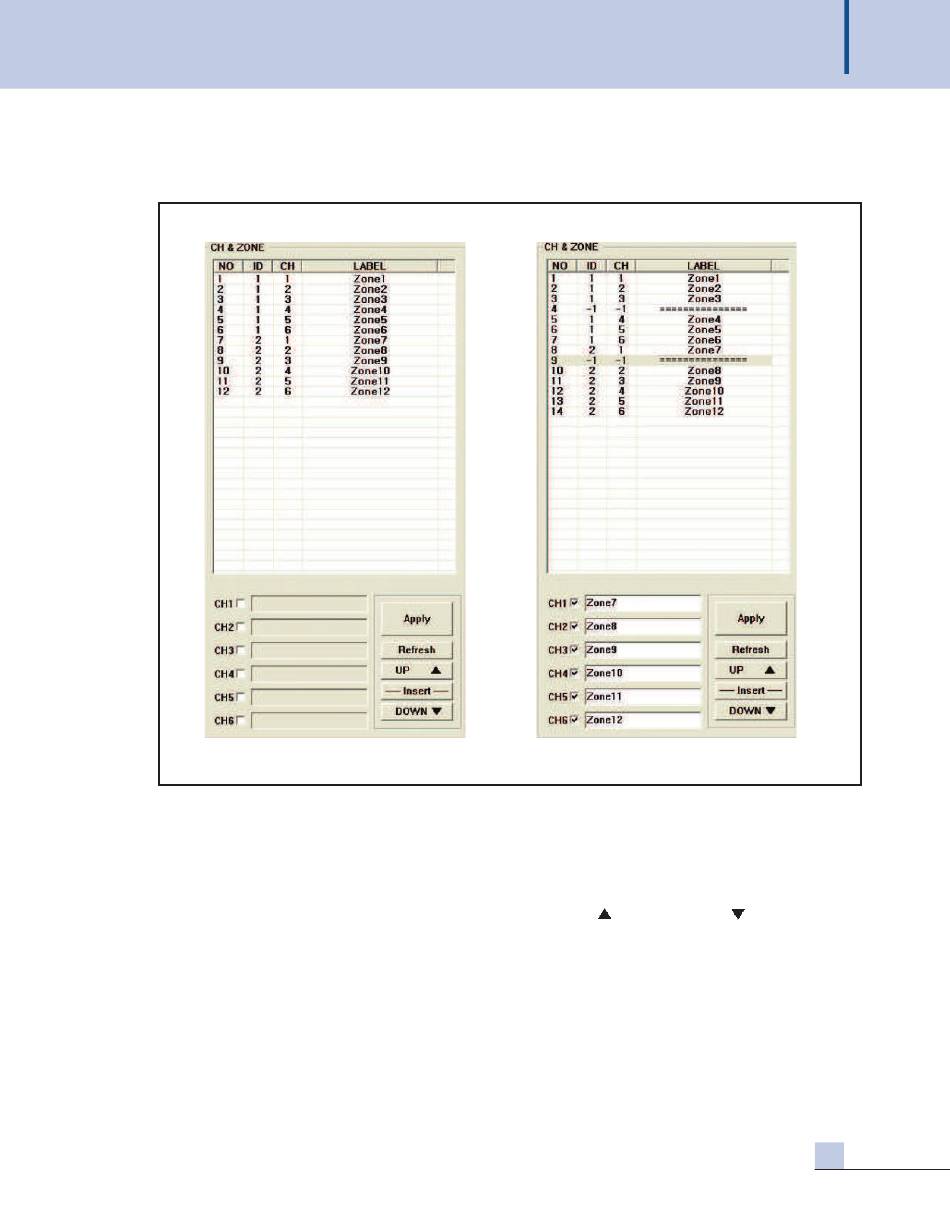

7) Use of O utput channel of SP-100, and labeling field
- This list shows information of the whole of area. It is possible to setup the showing order of actual screen
in the O peration mode.
- The operation screen is shown in a screen by 20pcs. So " ==========" label is added if pressing the
[---Insert---] button to insert empty space such as passing over some of 20pcs to the next screen.
- If placing this empty label at the desiring place using the [UP
leaves as empty space in the operation screen.
- It is possible to setup label of 6 output channels of SP-100. Check the channel connected to a speaker
after selecting the SP-100 to setup from the SP-100 List.
- After the label input field is activated, pressing the [Apply] button enables to add information of the
relevant channel to the list.
IN TER-M P.A CO N VERGEN CE SYSTEM
] or the [DO W N ] button, the label
