Inter-m IPC SYSTEM Installation Manual page 46

IN TER-M P.A CO N VERGEN CE SYSTEM

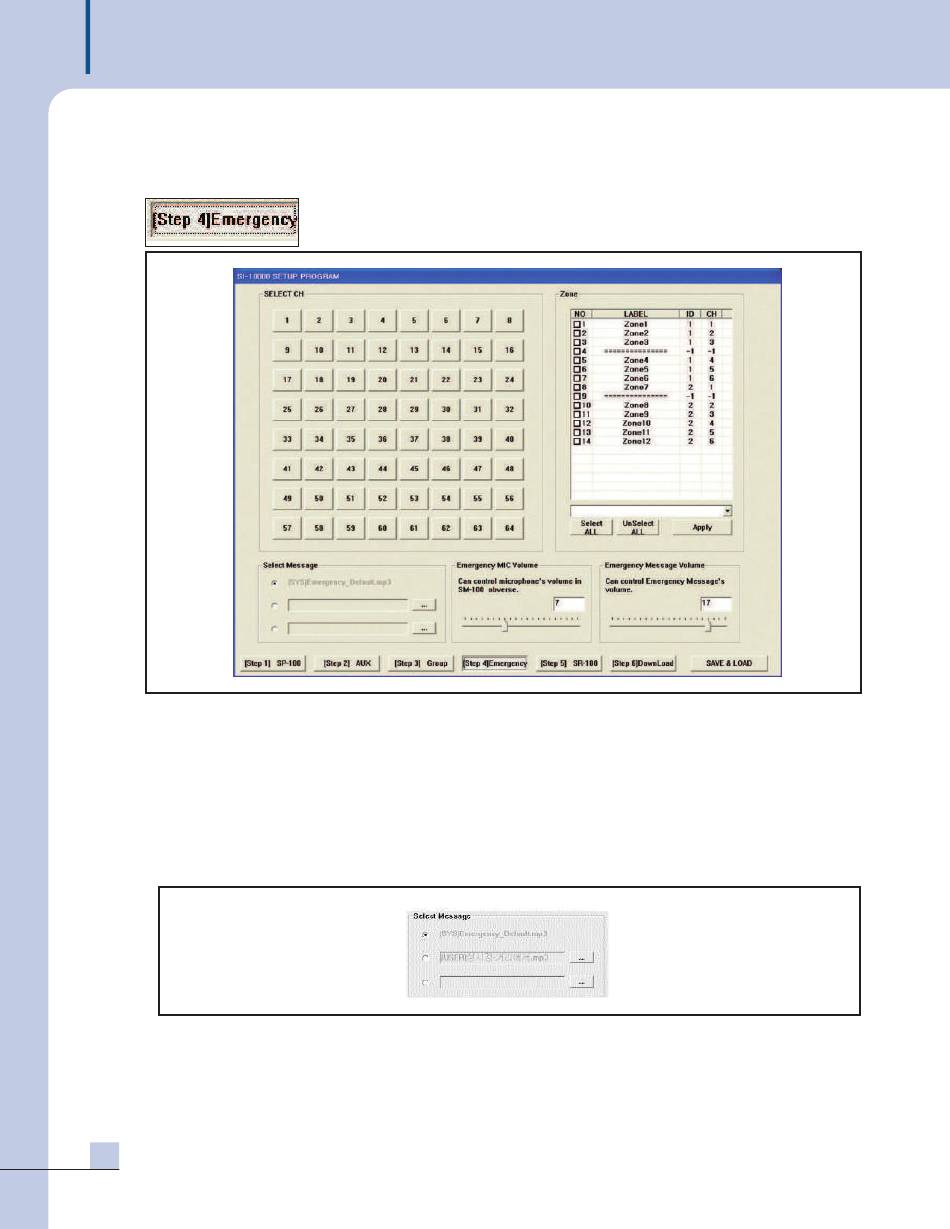

4. EMERGEN CY setup [step-4]
1) Selection of contact CH and zone
- Select the CH to setup.
- Selects the zone which broadcasting will be output to when contact of the relevant CH is input. It is
possible to select/ release the whole zone using the [Select ALL] and [Release ALL] button.
2) Apply
- If selection of the zone is completed, apply by pressing the [Apply] button.
3) Selection of sound source
- Select the sound source to be broadcast when the emergency contact is input.
- Possible for the user to directly add the desiring sound source.
44
IPC SYSTEM
Setup the macro for 64 EMERGEN CY contacts. Setup the zone which broadcasting
is output to when the relevant contact is input.
