HANGING THE FAN
Close-To-Ceiling Installation
Step 1. Pass the 120-volt supply wires through the center hole
in the ceiling hanger bracket as shown in Fig. 5.
Step 2. Remove the decorative canopy cover from the canopy
by turning canopy cover counterclockwise (Fig. 8A).
Step 3. Secure the hanger bracket to the ceiling outlet box
with the screws and washers provided with your outlet box.
Step 4. Remove three of the six screws and lock washers
(every other one) from the collar of top motor (Fig. 8B)
Step 5. Place the ceiling canopy and the gasket over the collar
at the top of the motor. Align the mounting holes with the holes
in the motor and fasten using the screws and lock washers
provided (Fig. 8B).
Step 6. Tighten the mounting screws securely (Fig. 8B).
WARNING: Failure to completely tighten the three screws in
step 4 could result in fan loosening and possibly falling.
Step 7. Hang the fan on the hook of the hanger bracket.
Be certain that the canopy is fully locked into hook as
shown in Fig. 9. This will allow you to make the electrical
connections.

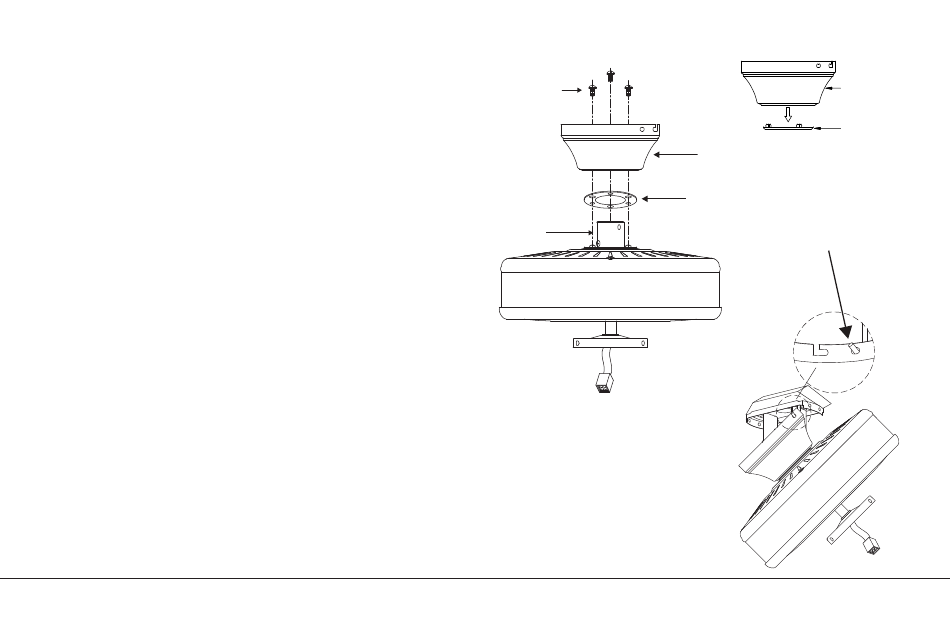

Screws and Lock
washers (3 of 6
places)
Collar
Fig. 8B
Canopy
Canopy cover
Fig. 8A
Canopy
Gasket
Hook
Fig. 9
