ELECTRIC CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned off the power
at the main circuit panel.
Follow the steps below to connect the fan to your household wiring. Use the wire
connecting nuts supplied with your fan. Secure the connector with electrical tape. Make
sure there are no loose wire stands or connections.

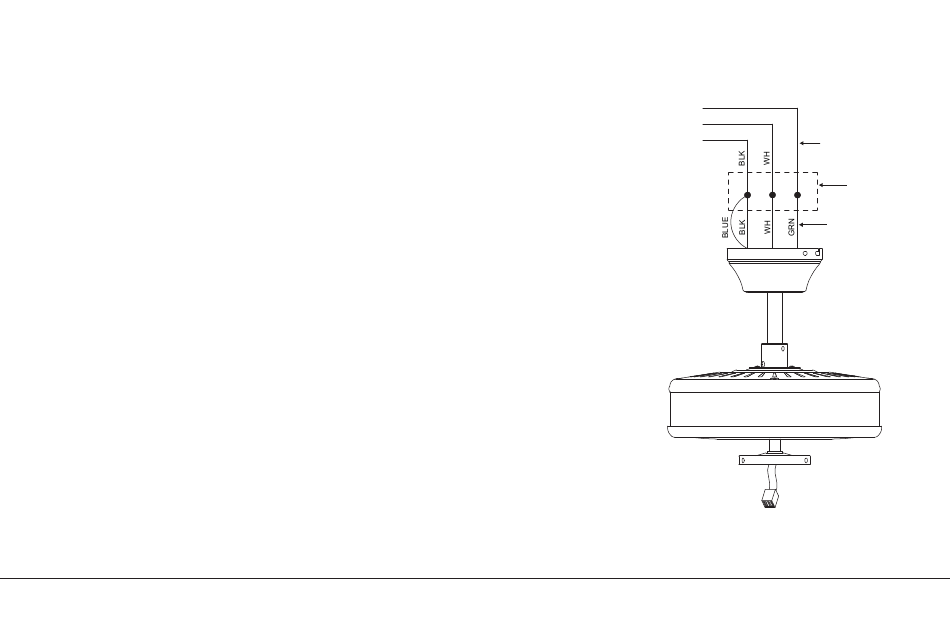

Step 1. Connect the fan supply (black) wire and light supply (blue) wire to the black
household supply wire as shown in Figure 11.
Step 2. Connect the neutral fan (white) wire to the neutral household (white) wire.
Step 3. Connect the fan ground wire (green) to the household ground wire.
Step 4. After connecting the wires, spread them apart so that the green and white wires
are on one side of the outlet box and black wires are on the other side.
Step 5. Turn the connecting nuts upward and push the wiring into the outlet box.
Power lines 120v
Fig. 11
52" BASICS PRO SELECT | 11
Green ground
Wiring box
Ground to
mounting
bracket or
downrod
