Summary of Contents for Kichler Lighting 330016NIS

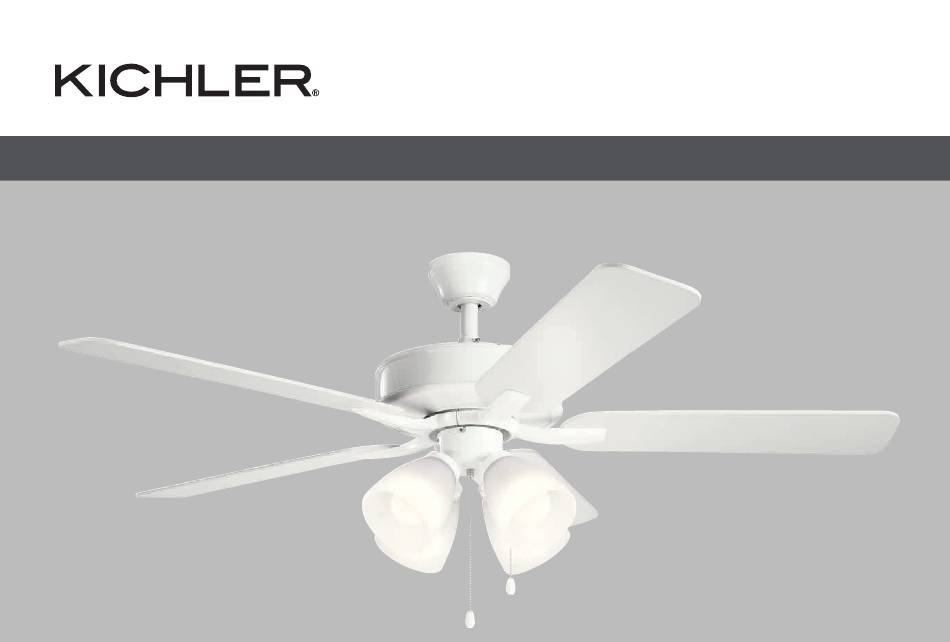

  • Page 1 52" BASICS PRO PREMIER Product images may vary slightly from actual product. INSTRUCTION MANUAL...
  • Page 2 KICHLER.COM...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY RULES ............4 ATTACHING THE FAN BLADES ......13 TOOLS AND MATERIALS REQUIRED ....... 5 INSTALLING THE LIGHT KIT........13 PACKAGE CONTENTS ..........5 ATTACHING THE LIGHT BULBS AND GLASS SHADE............14 MOUNTING OPTIONS ..........6 OPERATING INSTRUCTIONS ........15 HANGING THE FAN .............7 TROUBLESHOOTING ..........16 INSTALLATION OF SAFETY SUPPORT ....10 SPECIFICATIONS............17...
  • Page 4: Safety Rules

    SAFETY RULES To reduce the risk of electric shock, ensure electricity has been turned off at To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan. the circuit breaker or fuse box before beginning. Do not use water or detergents when cleaning the fan or fan blades.
  • Page 5: Tools And Materials Required

    TOOLS AND MATERIALS REQUIRED Phillips screwdriver Blade screwdriver 11mm wrench Step ladder Wire cutters PACKAGE CONTENTS Unpack your fan and check the contents . You should have the following items: A. Fan blades (5) J. Package hardware B. Ceiling mounting bracket Safety cable hardware: wood screw (1), flat washer (1) C.
  • Page 6: Mounting Options

    MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials.
  • Page 7: Hanging The Fan

    HANGING THE FAN CUL Listed electrical REMEMBER to turn off the power. Follow the steps below to hang your fan properly. NOTE: This ceiling fan is supplied with two types of hanging assemblies; the Ceiling standard ceiling installation using the downrod with ball and socket mounting and mounting Washers bracket...
  • Page 8 HANGING THE FAN Standard Ceiling Installation Ceiling canopy Downrod Step 1. Pass the 120-volt supply wires through the center hole in the ceiling hanger Set screws bracket as shown in Fig. 5. Step 2. Secure the hanger bracket to the ceiling outlet box with the screws and washers provided with your outlet box.
  • Page 9 HANGING THE FAN Screws and Lock Canopy washers (3 of 6 Close-To-Ceiling Installation places) Canopy cover Step 1. Pass the 120-volt supply wires through the center hole Fig. 8A in the ceiling hanger bracket as shown in Fig. 5. Canopy Step 2.
  • Page 10: Installation Of Safety Support

    INSTALLATION OF SAFETY SUPPORT (Required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from faIling. Please install it as follows: Step 1. Attach the provided wood screw and washers to the ceiling joist next to the mounting bracket but do not tighten.
  • Page 11: Electrical Connections

    ELECTRIC CONNECTIONS WARNING: To avoid possible electrical shock, be sure you have turned off the power Power lines 120v at the main circuit panel. Green ground Follow the steps below to connect the fan to your household wiring. Use the wire connecting nuts supplied with your fan.
  • Page 12: Finishing The Installation

    Outlet box FINISHING THE INSTALLATION Screws Ceiling Standard Ceiling Installation mounting bracket Screws Step 1. Tuck all the connections neatly into the ceiling outlet box. Step 2. Slide the canopy up to ceiling and attach the canopy to the ceiling mounting bracket using 4 screws at the top edge of the mounting bracket.
  • Page 13: Attaching The Fan Blades

    ATTACHING THE FAN BLADES CAUTION: Remove the rubber shipping blocks attached to the face of the motor. These blocks keep the motor from shifting during shipping and MUST be removed during installation. Screws Step 1. Attach the blade to the blade bracket using the screws and washers as shown in Washers Figure 14.
  • Page 14: Attaching The Light Bulbs And Glass Shade

    ATTACHING THE LIGHT BULBS AND GLASS SHADE Step 1. Loosen the lampholder from the socket (Fig. 16). Step 2. Mount the glass shades to the light fixture by unscrewing partway the thumbscrews on the glass holders, insert the glass, then gently tighten the Light kit thumbscrews by hand evenly to the glass.
  • Page 15: Operating Instructions

    OPERATING INSTRUCTIONS Turn the power on and check the operation of your ceiling fan. The pull chain controls the fan speed as follows: Step 1. 3-speed pull chain controls the fan speed as follows: 1 pull = High, 2 pulls = Medium, 3 pulls = Low, and 4 pulls = off. NOTE: To set the fan blades in reverse, the reverse slide switch is located on the side of the light kit.
  • Page 16: Troubleshooting

    TROUBLESHOOTING Problem Solution Fan will not 1. Check circuit fuses or breakers. start. 2. Check all electrical connections to ensure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. Fan sounds noisy. 1. Make sure all motor housing screws are snug. 2.
  • Page 17: Specifications

    SPECIFICATIONS With downrod Fan Size Speed Volts Amps Watts CFM/W N.W. G.W. C.F. High 0.43 52.08 161.00 4199.81 80.65 52" 16.94 18.48 Medium 0.30 23.8 101.20 2639.88 110.92 1.81' 0.19 8.84 57.00 1522.71 172.25 Without downrod Fan Size Speed Volts Amps Watts CFM/W...
  • Page 18: Fcc Information

    FCC INFORMATION This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 19 www.kichler.com KICHLER® LIGHTING 7711 EAST PLEASANT VALLEY ROAD P.O. BOX 318010 CLEVELAND, OHIO 44131-8010 CUSTOMER SERVICE 866.558.5706 8:30 AM TO 5:00 PM EST, MONDAY - FRIDAY...
