FINISHING THE INSTALLATION

Standard Ceiling Installation
Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to ceiling and attach the canopy to the ceiling mounting
bracket using 4 screws at the top edge of the mounting bracket. Insert each screw
through the canopy mounting hole and into the mounting bracket. Tighten all screws
securely. (Fig. 12)
Close-To-Ceiling Installation
Step 1. Tuck all the wire connections neatly above the receiver and into the ceiling
outlet box.
Step 2. Remove the fan from the hook on the ceiling mounting bracket. Attach the
fan assembly to the ceiling mounting bracket using 4 screws at the top edge of the
mounting bracket.
Align the keyhole slots on the canopy with the mounting screw heads on the sides of
the mounting bracket. Lift up and turn the fan assembly until the heads of the
mounting screws are in the narrow end of the keyhole slots.
Step 3. Make sure all four mounting screws are tight. (Fig. 13)
12 | KICHLER.COM
Outlet box
Screws
Ceiling
mounting
bracket

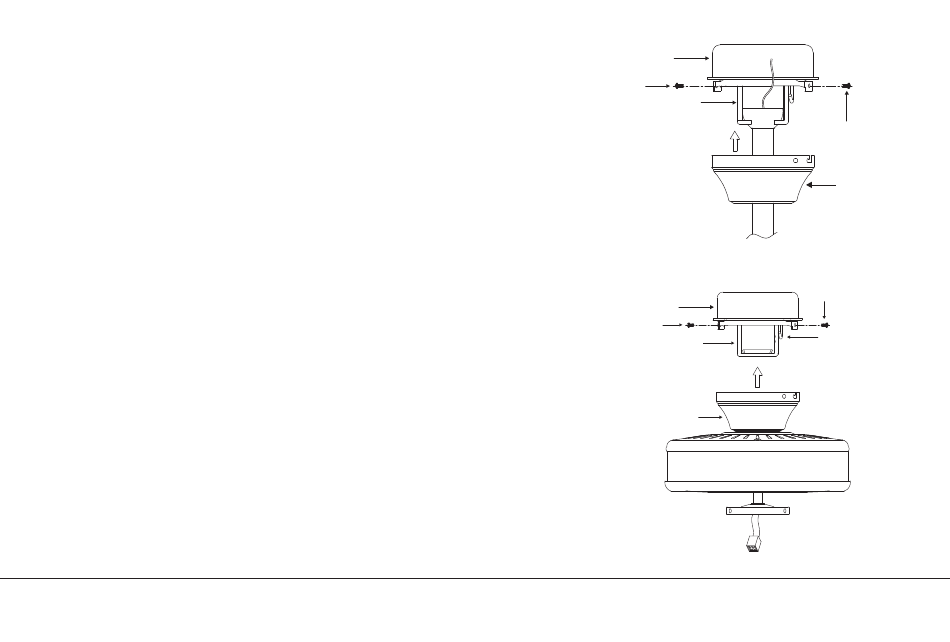

Fig. 12
Outlet box
Screws
Ceiling
mounting
bracket
Canopy
Fig. 13
Screws
Canopy
Screws
Hook
