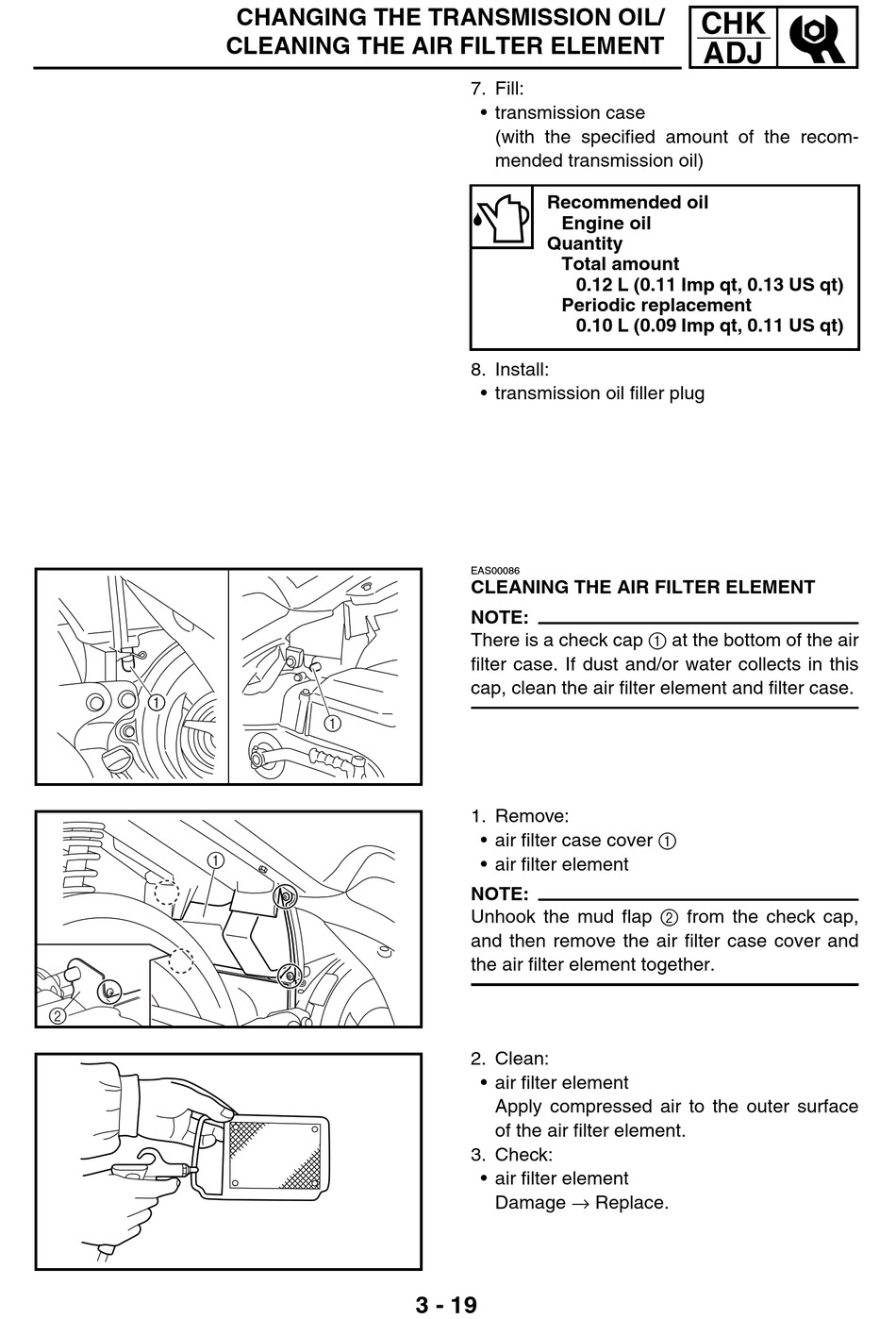

CHANGING THE TRANSMISSION OIL/

CLEANING THE AIR FILTER ELEMENT

1
7. Fill:
• transmission case
(with the specified amount of the recom-
mended transmission oil)
Recommended oil
Engine oil
Quantity
Total amount
0.12 L (0.11 Imp qt, 0.13 US qt)
Periodic replacement
0.10 L (0.09 Imp qt, 0.11 US qt)
8. Install:
• transmission oil filler plug
EAS00086
CLEANING THE AIR FILTER ELEMENT
NOTE:
There is a check cap 1 at the bottom of the air
filter case. If dust and/or water collects in this
cap, clean the air filter element and filter case.
1. Remove:
• air filter case cover 1
• air filter element
NOTE:
Unhook the mud flap 2 from the check cap,
and then remove the air filter case cover and
the air filter element together.
2. Clean:
• air filter element
Apply compressed air to the outer surface
of the air filter element.
3. Check:
• air filter element
Damage → Replace.
3 - 19
