Yamaha MIO Service Manual page 52

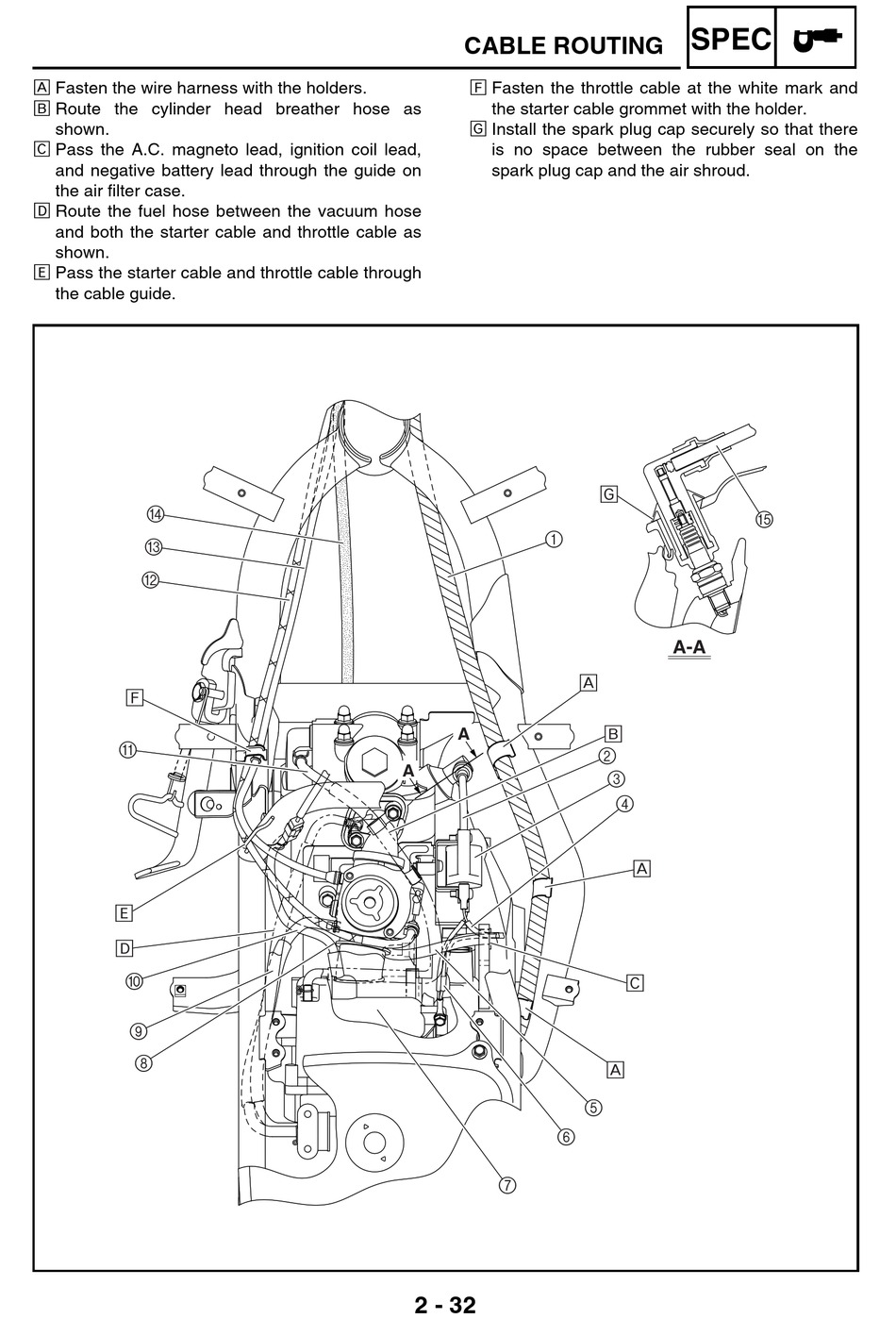

È Fasten the wire harness with the holders.
É Route the cylinder head breather hose as
shown.
Ê Pass the A.C. magneto lead, ignition coil lead,
and negative battery lead through the guide on
the air filter case.
Ë Route the fuel hose between the vacuum hose
and both the starter cable and throttle cable as
shown.
Ì Pass the starter cable and throttle cable through
the cable guide.
D
C
B
Í
A
Ì
Ë
0
9
8
CABLE ROUTING
Í Fasten the throttle cable at the white mark and
the starter cable grommet with the holder.
Î Install the spark plug cap securely so that there
is no space between the rubber seal on the
spark plug cap and the air shroud.
