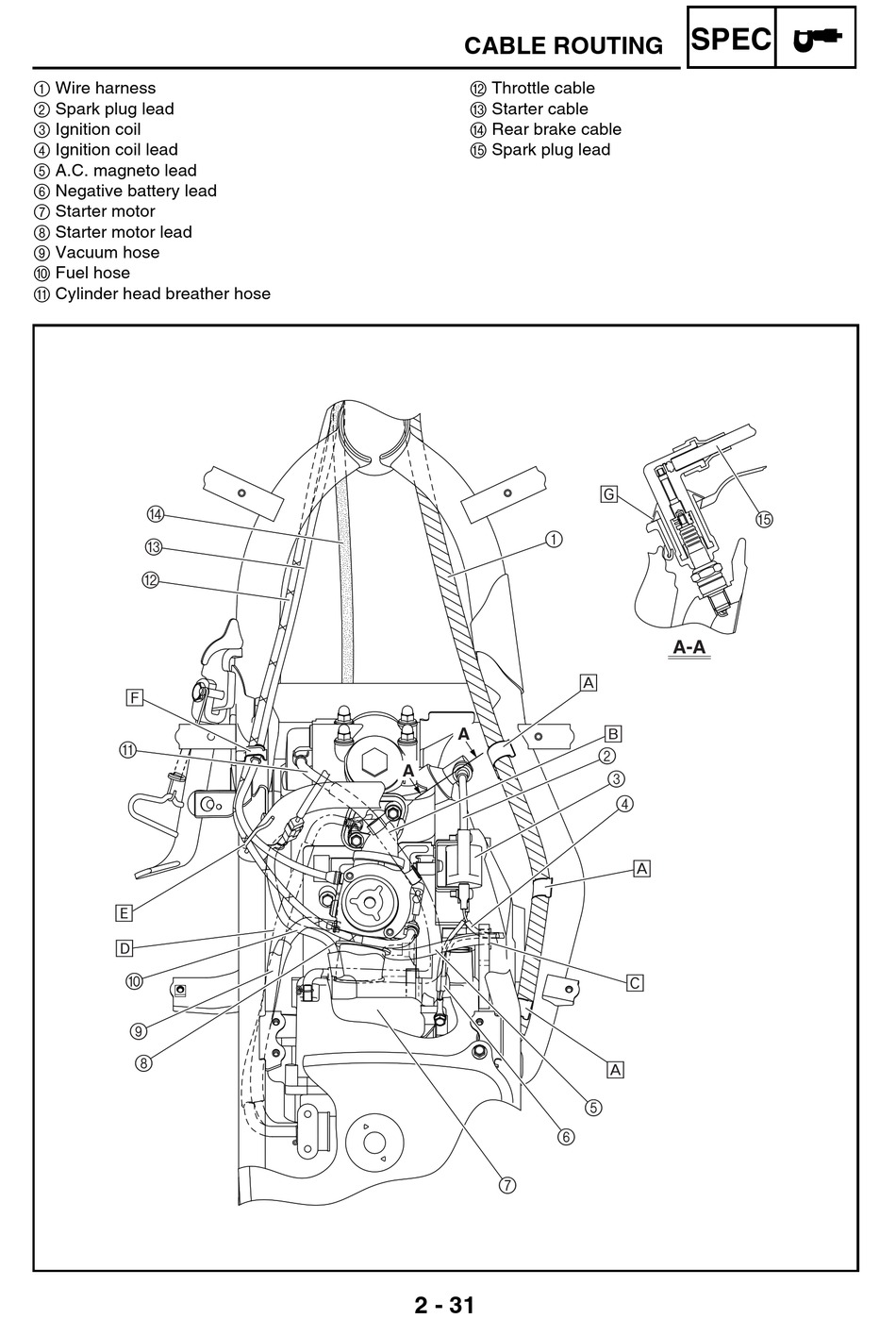

Yamaha MIO Service Manual page 51

1 Wire harness
2 Spark plug lead
3 Ignition coil
4 Ignition coil lead
5 A.C. magneto lead
6 Negative battery lead
7 Starter motor
8 Starter motor lead
9 Vacuum hose
0 Fuel hose
A Cylinder head breather hose
D
C
B
Í
A
Ì
Ë
0
9
8
CABLE ROUTING
B Throttle cable
C Starter cable
D Rear brake cable
E Spark plug lead
1
A
A
6
7
2 - 31
SPEC
