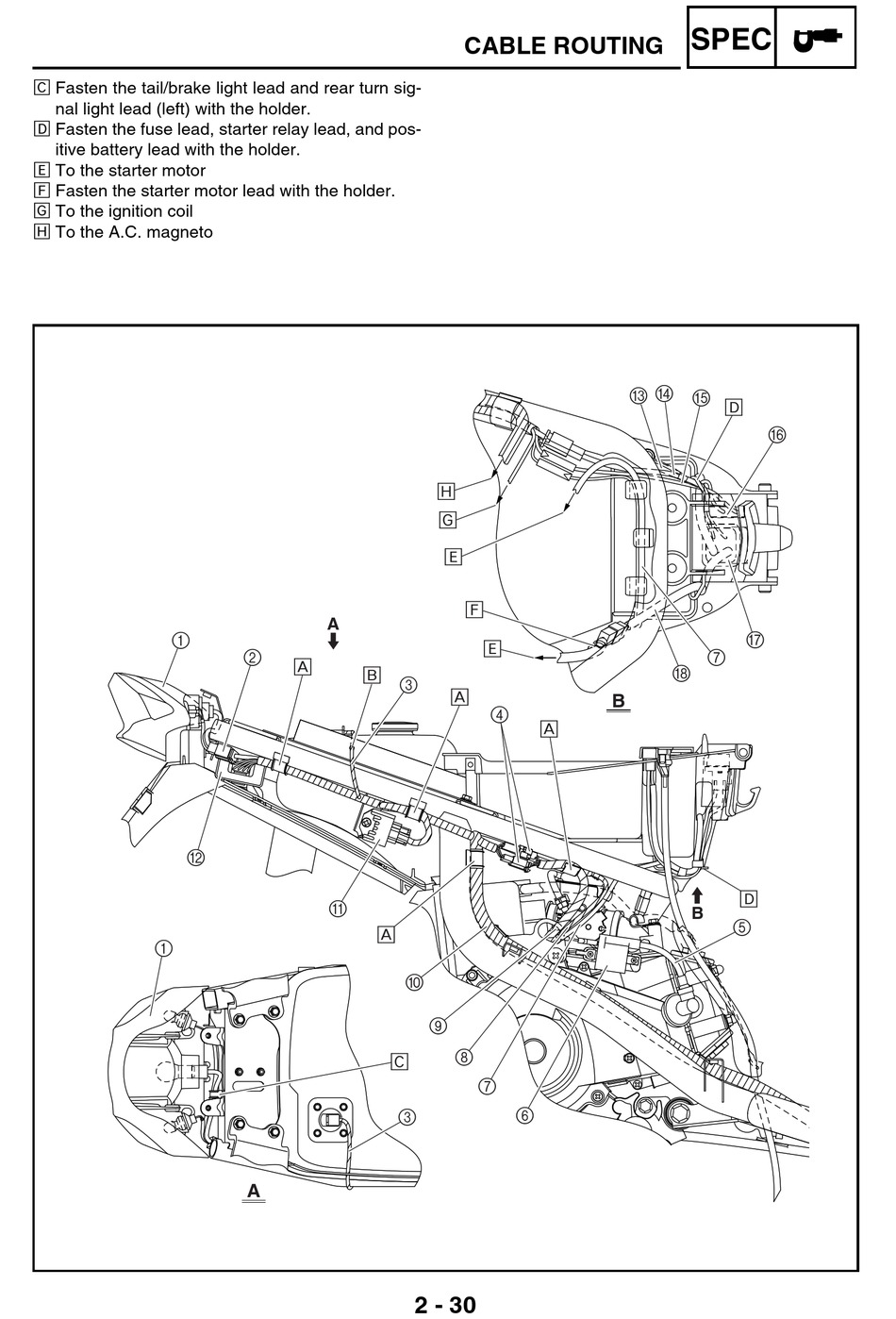

Ê Fasten the tail/brake light lead and rear turn sig-
nal light lead (left) with the holder.
Ë Fasten the fuse lead, starter relay lead, and pos-
itive battery lead with the holder.
Ì To the starter motor
Í Fasten the starter motor lead with the holder.
Î To the ignition coil
Ï To the A.C. magneto
