Yamaha MIO Service Manual page 48

Ì Fasten the wire harness with the holders.
Í Fasten the grommet on the wire harness with
the holder as shown.
Î Pass the front brake hose through the hose
guides.
Ï To the turn signal lights
Ð Pass the battery breather hose 2 through the
hole in the bottom cowling
Ñ Pass the battery breather hose 2 through the
hose guides on the footboard.
A
È
4
A-A
É
È
A
A
3
Ë
4
Ð
.
Ê
B
1
2
B

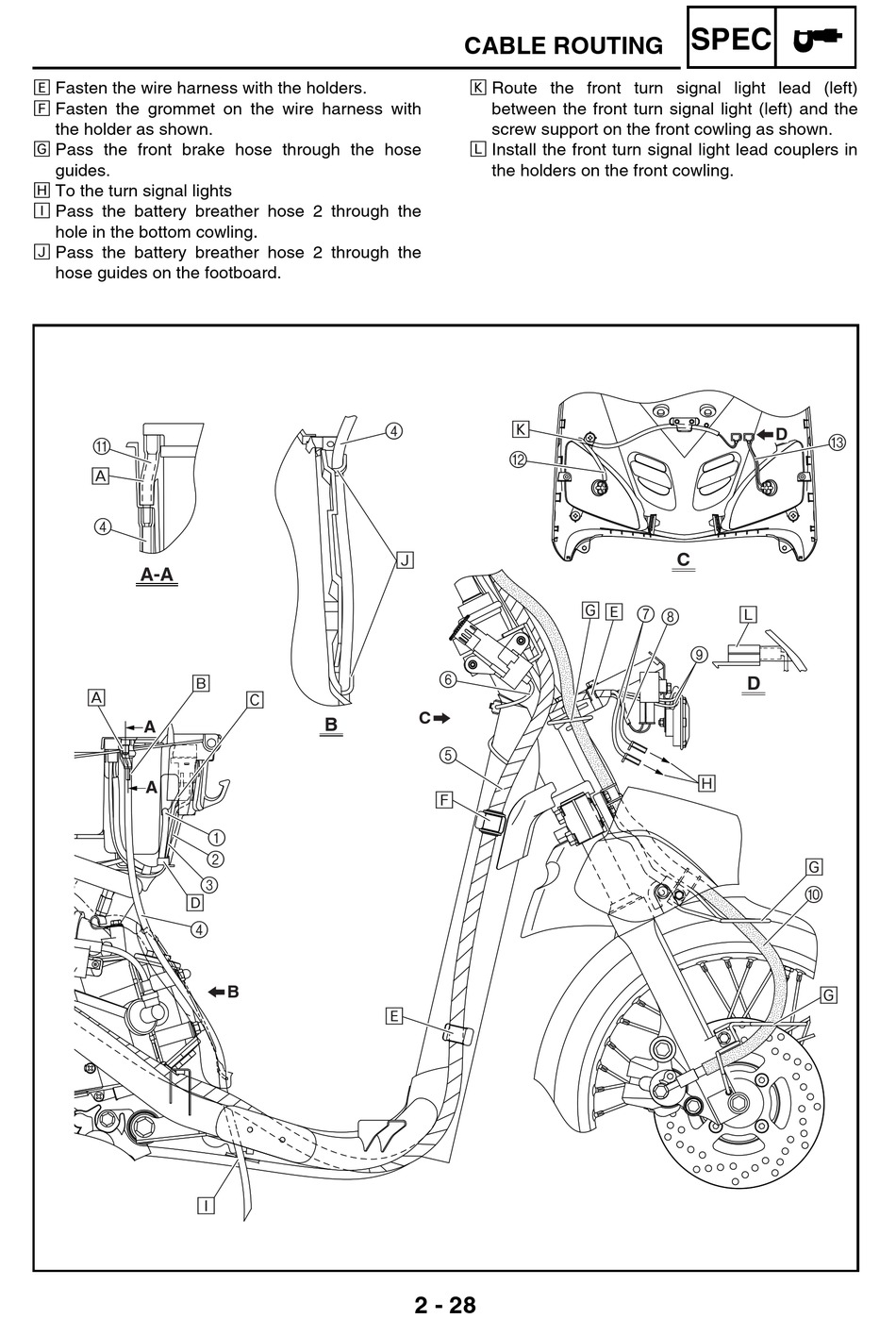

CABLE ROUTING
Ò Route the front turn signal light lead (left)
between the front turn signal light (left) and the
screw support on the front cowling as shown.
Ó Install the front turn signal light lead couplers in
the holders on the front cowling.
