Yamaha MIO Service Manual page 47

1 Positive battery lead
2 Starter relay lead
3 Fuse lead
4 Battery breather hose 2
5 Wire harness
6 Main switch lead
7 Turn signal light leads
8 Turn signal relay lead
9 Horn leads
0 Front brake hose
A Battery breather hose 1
A
È
4
A-A
É
È
A
A
3
Ë
4
Ð
Ê
B
1
2
B

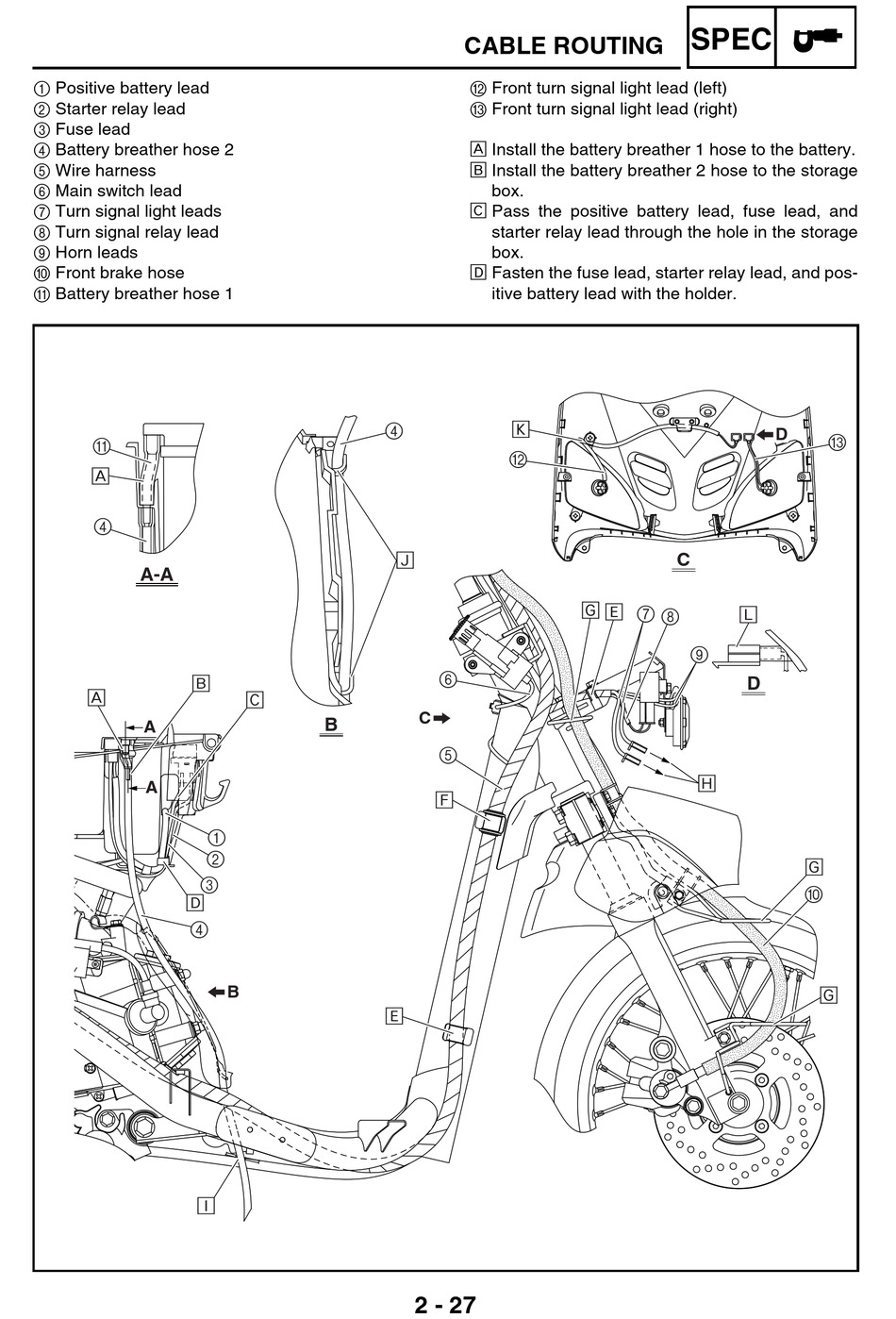

CABLE ROUTING
B Front turn signal light lead (left)
C Front turn signal light lead (right)
È Install the battery breather 1 hose to the battery.
É Install the battery breather 2 hose to the storage
box.
Ê Pass the positive battery lead, fuse lead, and
starter relay lead through the hole in the storage
box.
Ë Fasten the fuse lead, starter relay lead, and pos-
itive battery lead with the holder.
Ò
4
B
Ñ
6
C
5
Í
Ì
2 - 27
SPEC
C
Î Ì
7 8
Ó
9
D
Ï
D
C
Î
0
Î
