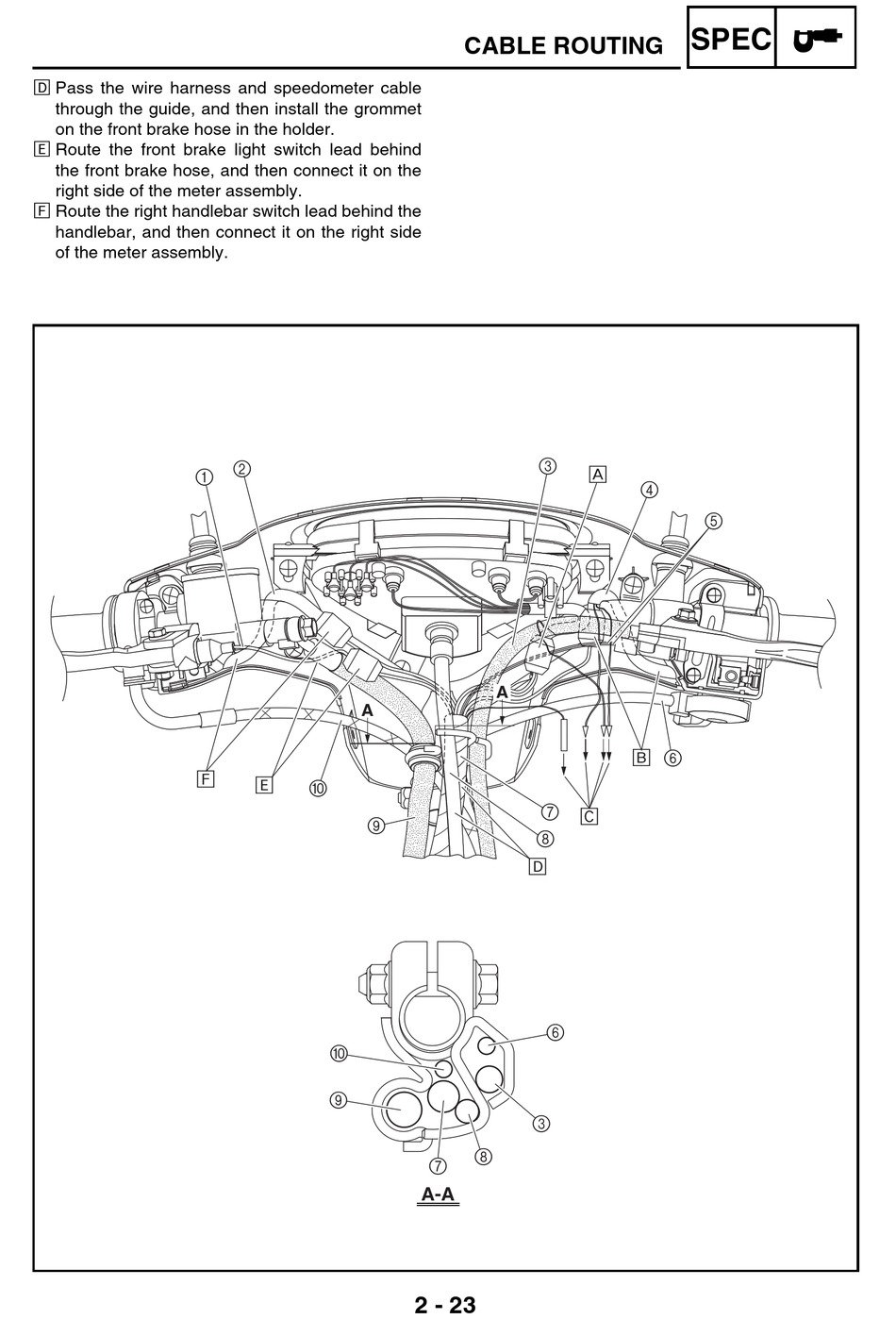

Ë Pass the wire harness and speedometer cable
through the guide, and then install the grommet
on the front brake hose in the holder.
Ì Route the front brake light switch lead behind
the front brake hose, and then connect it on the
right side of the meter assembly.
Í Route the right handlebar switch lead behind the
handlebar, and then connect it on the right side
of the meter assembly.
