Yamaha MIO Service Manual page 124

1

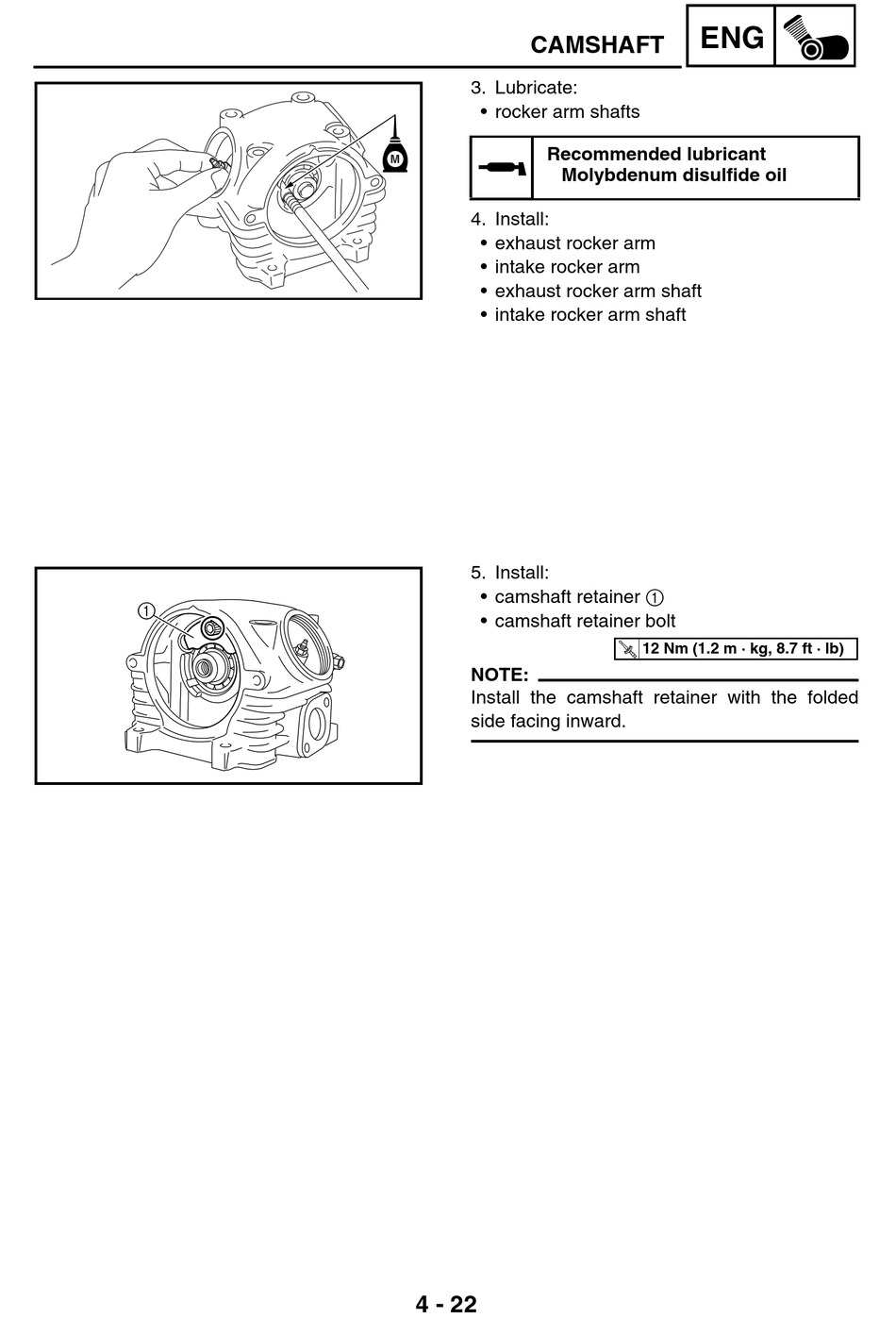

CAMSHAFT
3. Lubricate:
• rocker arm shafts
Recommended lubricant
M
4. Install:
• exhaust rocker arm
• intake rocker arm
• exhaust rocker arm shaft
• intake rocker arm shaft
5. Install:
• camshaft retainer 1
• camshaft retainer bolt
NOTE:
_
Install the camshaft retainer with the folded
side facing inward.
4 - 22
ENG
Molybdenum disulfide oil
12 Nm (1.2 m · kg, 8.7 ft · lb)
