Operation
thicknessSENSOR
6.5

Measuring Menu

Go to the Measuring menu.
5
4
3
2
1

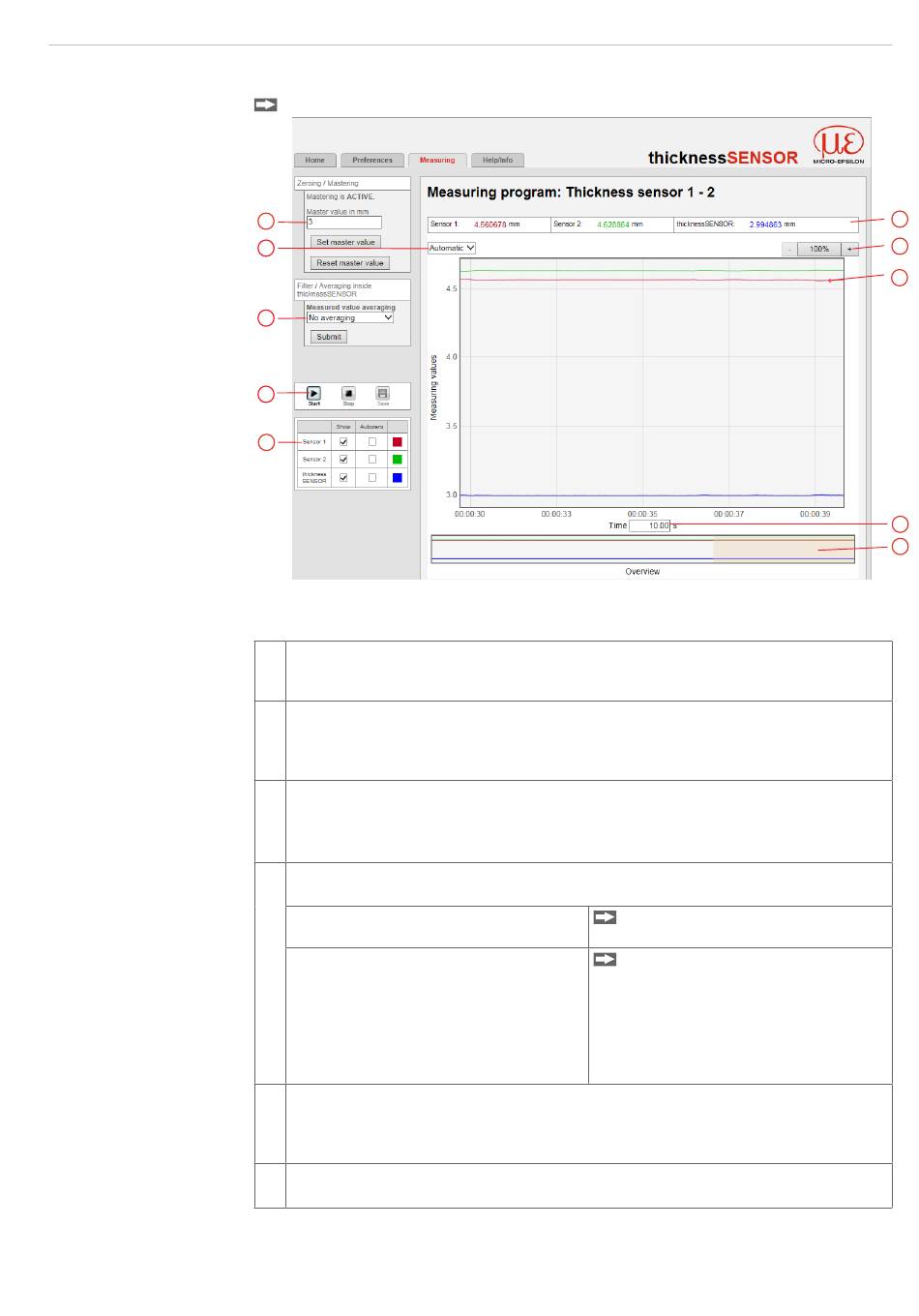

Fig. 48 Measuring menu - Measuring program screen
The left window shows the following functions:
1 Each curve can be deactivated and activated using the associated checkbox
(checkmark). The Autozero function starts or stops a relative measurement for the
thickness result.
Stop stops the diagram; data selection and zoom function are still possible. Save
2
creates a CSV file (separation with semicolon) to store the last approx. 50000
values. The file contains the accumulated measurement and calculation results
including time information. The file is stored in the download area under Windows.
3 Shows which measured value averaging has been selected, see Chap. 6.4.4. You
can also change the measured value averaging here and confirm with Submit.
The averaging method is automatically updated in the Filter / Averaging /
Error handling inside thicknessSENSOR menu.
4 For scaling the measured value axis (y-axis) of the graphic, you can either select
Auto (= autoscaling) or Manual (= manual setting).
Enable automatic scaling:
Enable manual scaling:
5 The master value is used to specify the thickness of a measurement object. Use
the Set master value button to set the thickness result to the required value,
for example, if you want to make a differential measurement. The function is also
used for a calibration measurement, see Chap. 3.3.
6 The current values of the two laser sensors and the calculated thickness value
(thicknessSENSOR value) are displayed in the text boxes above the graphic.
Select Automatic from the drop-
down menu.
Select Manual from the drop-down
menu.
The lowest and highest value of the
scaling of the y-axis is automatically
displayed.
The y-axis can be scaled manually.
6
7
8
9
10
