Operation
6.2.2

Access via Ethernet

Direct connection with PC, thicknessSENSOR with static IP address
(factory setting)
PC with static IP address
Connect the thicknessSENSOR ("Ethernet" socket) to the PC
using a direct Ethernet connection (LAN). Use a LAN cable with a
7-pin M12 cable connector and an RJ-45 connector.
The thicknessSENSOR needs a
fixed IP address to establish a
direct connection.
Start the program
sensorTOOL.
You can find it online at
www.micro-epsilon.com/down-
load/software/sensorTOOL.exe.
Click the Sensor button. Se-
lect the required sensor from
the list.
Click on the Open Website
button to connect the sensor
to your standard browser.
Interactive web pages for programming the thicknessSENSOR and peripherals are now shown in the web browser.

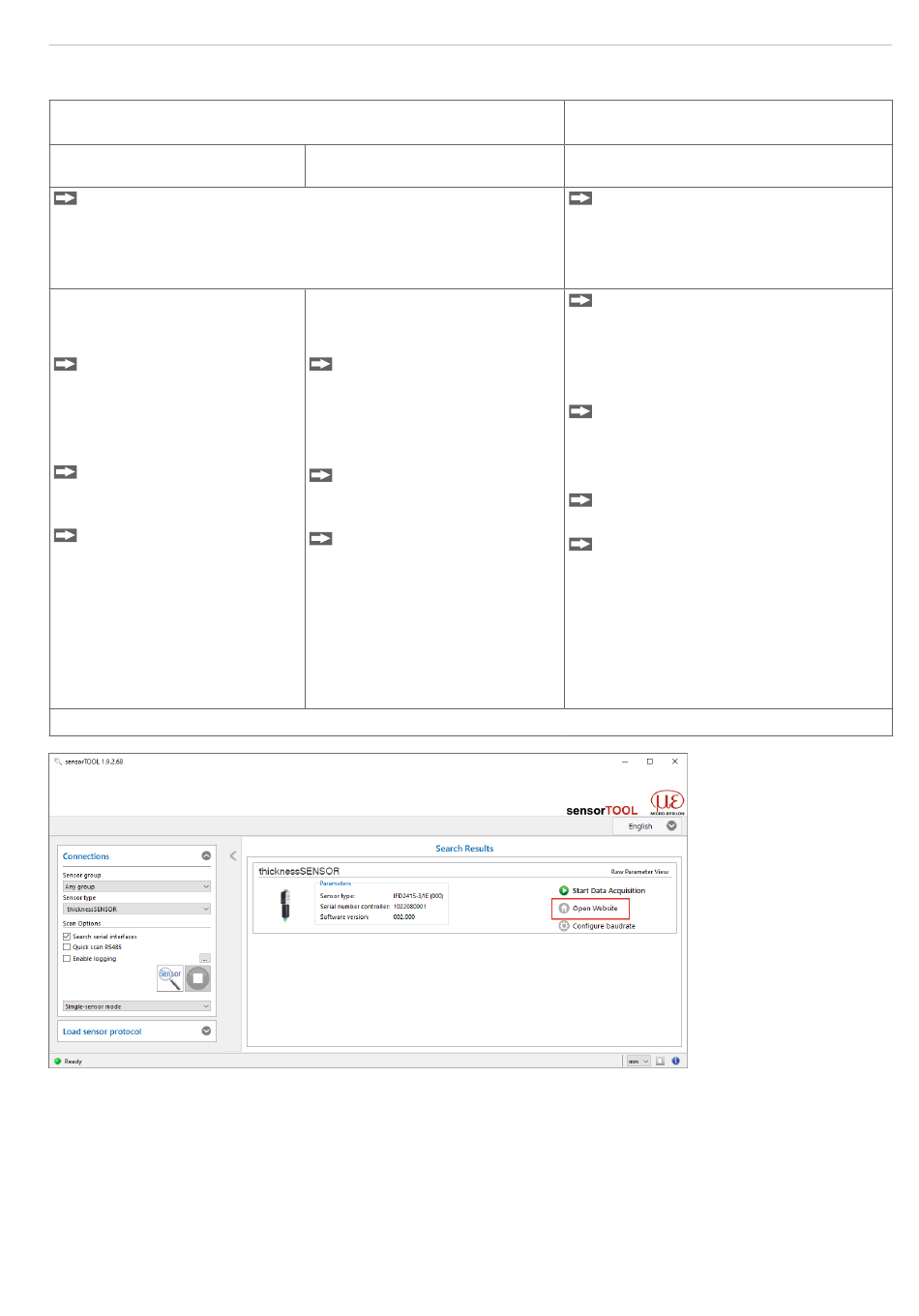

Fig. 24 sensorTOOL auxiliary program for finding sensors and starting the web interface
thicknessSENSOR
PC with DHCP
Wait until Windows has estab-
lished a network connection (con-
nection with limited connectivity).
Start the program sensor-
TOOL.
https:// You can find it online at
www.micro-epsilon.com/down-
load/software/sensorTOOL.exe.
Click the Sensor button. Se-
lect the required sensor from
the list.
Click on the Open Website
button to connect the sensor
to your standard browser.
Network
Controller with dynamic IP address, PC with
DHCP
Connect the thicknessSENSOR to a
switch using a direct Ethernet con-
nection (LAN). Use a LAN cable with
a 7-pin M12 cable connector and an
RJ-45 connector.
Enter the sensor in the DHCP server /
notify the sensor to your IT Department.
The sensor is assigned an IP address by
your DHCP server. You can query this IP
address with the program sensorTOOL.
https:// Start the program sensorTOOL.
You can find it online at
cro-epsilon.com/download/software/sensor-
TOOL.exe.
Click the Sensor button. Select the
required sensor from the list.
Click on the Open Website button to
connect the sensor to your standard
browser.
https://www.mi-
